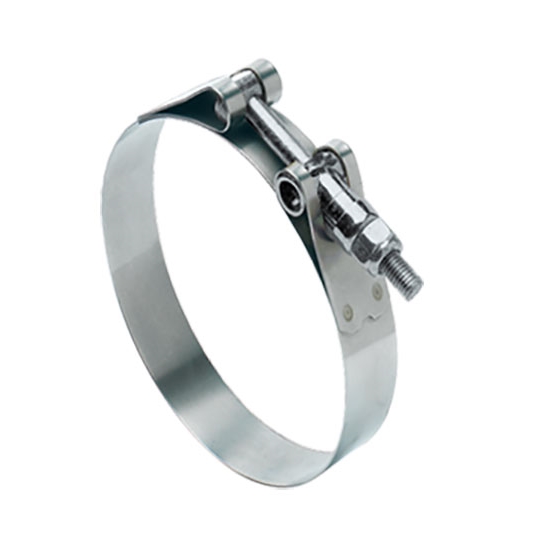

Ideal Heavy Duty T-Bolt Clamp, 2-1/8 Inch Minimum Clamping Diameter

Heavy duty T-Bolt clamps from Ideal Clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. This is most widely used t-bolt design and it's typical applications include truck air intake systems, cold side charge air systems, off-road equipment and industrial machinery.

• Minimum Clamping Diameter:2.13
• Maximum Clamping Diameter: 2.44
• T-Bolt: 1/4″ Plated Carbon Steel
• Hex Nut: 7/16″ Plated Carbon Steel, Nylon Insert
• Band: 3/4″, 300 Stainless
• Bridge: 3/4″, 300 Stainless
• Trunnion: Plated Carbon Steel
• Installation Torque: 75 in-lbs (8.5 Nm)
