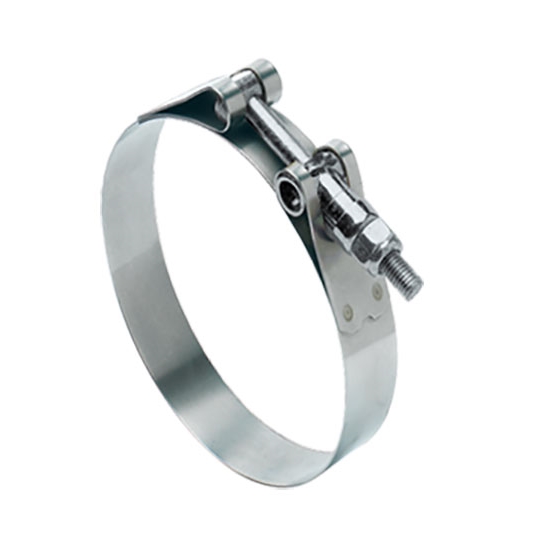

Ideal Heavy Duty T-Bolt Clamp, 2-1/4 Inch Minimum Clamping Diameter

#917225

Ideal Heavy Duty T-Bolt Clamp, 2-1/4 Inch Minimum Clamping Diameter

Name: Ideal Heavy Duty T-Bolt Clamp, 2-1/4 Inch Minimum Clamping Diameter
Brand: Ideal Clamps
SKU: 917225
Price: 11.49 USD
Availability: InStock

Write a Review

Ask a Question

Minimum Clamp Diameter:

2-1/4 Inch

1-3/8 Inch 1-3/4 Inch 1-7/8 Inch 2 Inch 2-1/8 Inch2-3/8 Inch2-5/8 Inch 2-3/4 Inch

$11.49

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Product Summary

Universal Fit, T-Bolt Style, Steel, Natural, Natural

See more details

Key Specs

MFG. Part #	30010-0225
Style	T-Bolt
Material Type	Steel
Color	Natural
Finish	Natural

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ideal Clamps 30010-0225 Details

Heavy duty T-Bolt clamps from Ideal Clamps provide uniform sealing pressure for a positive, reliable seal. Specifically designed for use in high vibration and large diameter applications. This is most widely used t-bolt design and it's typical applications include truck air intake systems, cold side charge air systems, off-road equipment and industrial machinery.

Minimum Clamping Diameter:2.25
Maximum Clamping Diameter: 2.56
T-Bolt: 1/4″ Plated Carbon Steel
Hex Nut: 7/16″ Plated Carbon Steel, Nylon Insert
Band: 3/4″, 300 Stainless
Bridge: 3/4″, 300 Stainless
Trunnion: Plated Carbon Steel
Installation Torque: 75 in-lbs (8.5 Nm)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Ideal Clamps 30010-0225 Specifications

KEY SPECS
MFG. Part #	30010-0225
Brand	Ideal Clamps
Style	T-Bolt
Material Type	Steel
Color	Natural
Finish	Natural

GENERAL
Hose OD	2.25"
Maximum Clamping Diameter	2.56"
Minimum Clamping Diameter	2.25"
Grip Range	2-1/4" to 2-9/16"
Sold in Quantity	Each
