IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads

IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads

69-77 Buick, 76-77 Cadillac, 69-77 Chevy, 70-77 GMC, 69-77 Oldsmobile, 69-77 Pontiac

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
X
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
IMCA 69-77 GM Loaded Brake Caliper Kit w/Super Stopper Brake Pads
Zoomed In Image
Part # 9108666
Save 8%
$114.99
$124.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Caliper Pistons:
Single
Piston Diameter:
2.75"
Rotor Thickness:
1.00"
Bore Size:
2.75"
Centerline of Holes:
7.06"
Thread Pitch:
7/16"-20
Caliper Finish:
Natural
Brake Pad Compound:
156
Position:
Left and Right
Brake Pads Included:
Yes
Caliper Material Type:
Steel
Notes:
Brake Pads are bonded construction.
Sold in Quantity:
Kit

Info

These complete single piston brake caliper and brake pad kits are perfect for IMCA Hobby Stock or Street Stock 1969-77 GM Midsize race cars.

  • Stock style single piston calipers
  • Replacement for 1969-77 GM Midsize cars
  • For IMCA Hobby Stock/Street Stock classes
  • Front brake set with Left and Right calipers/brake pads
  • 156 Street brake pads - long life, low metallic, aluminum/steel rotors
  • No core charge required
  • 7/16"-20 inlet
  • 7-1/16" center to center with 2-3/4" width between mount tabs
  • Fits 1" thick rotors
  • Can be used with brake hoses from pre-78 GM intermediate cars
  • Allen head zinc plated steel slider bolts - 7/16"-20 Thread

Kit Includes:

  • (1) IMCA Approved 69-77 GM Midsize Standard Brake Caliper - Left
  • (1) IMCA Approved 69-77 GM Midsize Standard Brake Caliper - Right
  • (1) Set of 4 Street 156 Brake Pads
  • (4) GM Brake Caliper Slider Bolts

Installation Note:

Only use full metallic pads on coated rotors.

When utilizing slider bolts, the original slide pin bolt sleeve will not be used.  It must be removed from the caliper as the head of this slide pin bolt has this sleeve function built into the bolt.    The slide pin bolts included will replace both the original slide pin bolt sleeve and the original equipment type slide pin bolt.

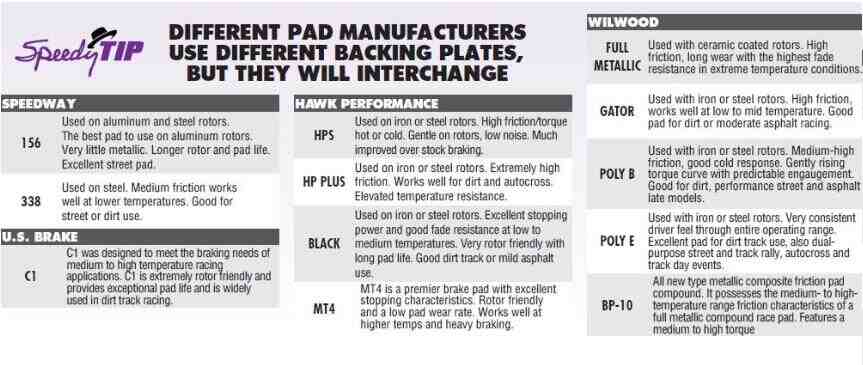

Brake Pad Brand Guide (Link)

Learn how to properly Bed-In your brake pads by reading our tech article.  Bedding-In Brake Pad Procedure.

Application Note:

These calipers are a standard full size GM caliper used for years on many vehicles (1969-72 Chevelle, 73-77 A-Body, 1969-1981 Camaro, 1977 Caprice, S-10 pickups, etc). They will fit any bracket / spindle designed for the large GM calipers (7” mount width).

Depending on the spindle and rotor size they will not fit in most 14” wheels (nor in 15” drum brake wheels).



Street 156 Brake Pads

  • Low metallic compound
  • For aluminum or steel rotors - Best with aluminum rotors
  • Long life, excellent street wear

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • IMCA 1969-77 Midsize Standard Stock GM Caliper, LH
    Qty x 1
  • IMCA 1969-77 Midsize Standard Stock GM Caliper, RH
    Qty x 1
  • Speedway GM Brake Caliper Slider Slide Bolt
    Qty x 4
  • Speedway 156 1969-77 GM Mid-Size Brake Pads
    Qty x 2
