Product Summary

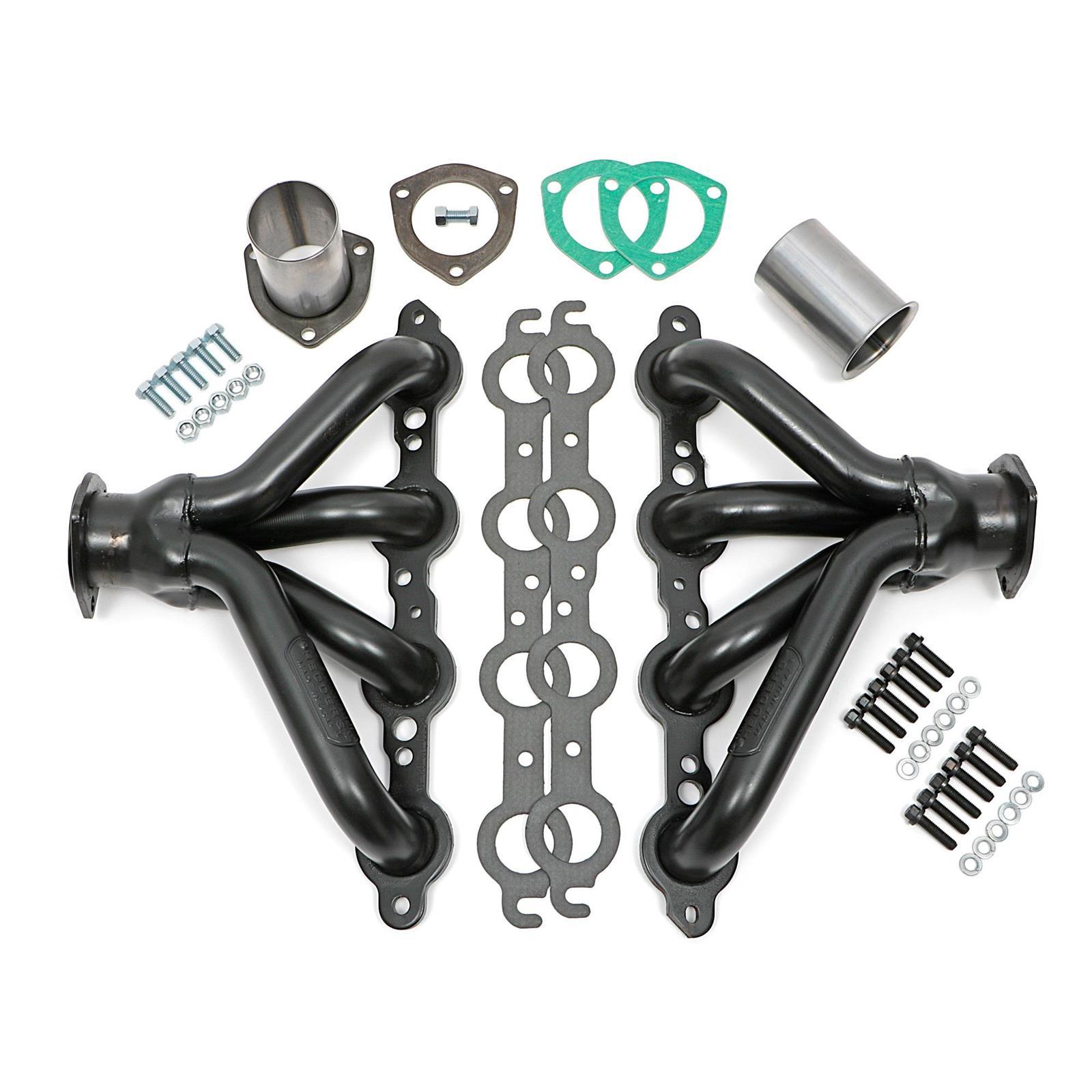

Block Hugger Header Tube Type, Round Exhaust Port Shape

  • Block Hugger Headers
  • Chevy LS Series
  • 1-1/2 In. Tubes
  • Uncoated
See more details

Key Specs

MFG. Part #68520
Header Tube TypeBlock Hugger
Exhaust Port ShapeRound
Flange StyleStandard
Primary Tube Diameter1-1/2"
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Hedman Hedders 68520 Details

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and classic musclecars is their specialty. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows you to bolt up, even if it is not perfectly aligned with the header collectors.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

Features

  • Block Hugger Headers
  • Chevy LS Series
  • 1-1/2 In. Tubes
  • Uncoated

Application

  • 1923-1949 STREET ROD 4.8 Liter
  • 1923-1949 STREET ROD 5.3 Liter
  • 1923-1949 STREET ROD 6.0 Liter

Specs

Manufacturer Specs:

TUBE DIAMETER1-1/2 in.
TUBE STYLEBlock Huggers
AUTOMATIC TRANSMISSION - COLUMNYes
AUTOMATIC TRANSMISSION - FLOORYes
MANUAL TRANSMISSION - COLUMNYes
MANUAL TRANSMISSION - FLOORYes
COLLECTOR ATTACHMENT2-1/2 in.
COLLECTOR DIAMETER2-1/2 in.
COLLECTOR SIZE2-1/2 in.
COLLECTOR STYLE3-Bolt Gasket Style Flange
REDUCER OUTLET SIZE2-1/2 in.
EXHAUST SYSTEM DIA2-1/2 in.
CONTENTSHeader(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
ENGINEChevy LS Series
FINISHUncoated
FINISH TYPEUNCOATED Mild Steel! Shipped with Temporary Paint.
FLANGE STYLEStandard
FLANGE THICKNESS0.375 in.
HEADER STYLEBlock Huggers- Street Rod
NOTESStreet Rod Universal Shorty Chev. 4.8-6.0 LS
MATERIALMild Steel
TRANSMISSION NOTESModification to shifter linkage may be required.
TUBE DESIGNStandard
TUBE LENGTHShort Tubes
TUBE MATERIAL THICKNESS16g
TUBE SIZE1-1/2 in.
WITH AIR SYSTEMNo
WITH EGRNo
EONo
WELD-UPNo
TUNEDNo
BOLTS/STUDS INCLUDEDYes
CATALYTIC CONVERTERS INCLUDEDNo
CROSSOVER PIPE INCLUDEDNo
GASKET OR SEAL INCLUDEDYes
HEADER FASTENERS INCLUDEDYes
INSTALLATION HARDWARE INCLUDEDYes
MOTOR MOUNTS INCLUDEDNo
MOUNTING HARDWARE INCLUDEDYes
REDUCERS INCLUDEDYes
Y-PIPE INCLUDEDNo
QUANTITYSold as a pair.
PRIMARY TUBE GAUGE16g
PRIMARY TUBE DIAMETER IN1.50 in.
PACKAGE CONTENTSHeaders, reducers (exhaust adapters), gaskets, mounting hardware
HEADER MATERIALMild Steel
HEADER FINISHUncoated
CYLINDER HEAD PORT SHAPERound
CYLINDER HEADStock Profile Heads
HEADER CONSTRUCTIONMILD STEEL- Standard-Duty
REPLACEMENT GASKET41827530
REPLACEMENT HEAD FLANGE GASKET41827530
HEADER PORT SHAPERound Port
PORT SHAPERound
COLLECTOR BOLTS INCLUDEDYes
LS SWAPAlso Fits Vortec Engines

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Hedman Hedders 68520 Specifications

KEY SPECS
MFG. Part #68520
BrandHedman Hedders
Header Tube TypeBlock Hugger
Exhaust Port ShapeRound
Flange StyleStandard
Primary Tube Diameter1-1/2"
Material TypeMild Steel
ColorNatural
Weld-UpNo
Collector Diameter2-1/2 Inch
FinishUncoated
Hardware IncludedYes
Gasket(s) IncludedYes
Collector Reducers IncludedYes
Collector Reducer Exit Diameter2.5"
GENERAL
Sold in QuantitySet
Collector Length2.5"
Flange Thickness0.375"
TunedNo
Crossover Pipe IncludedNo
Primary Tube Gauge16-gauge
