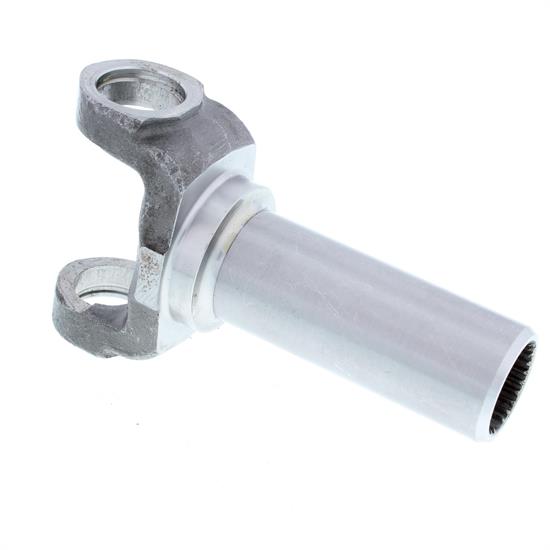

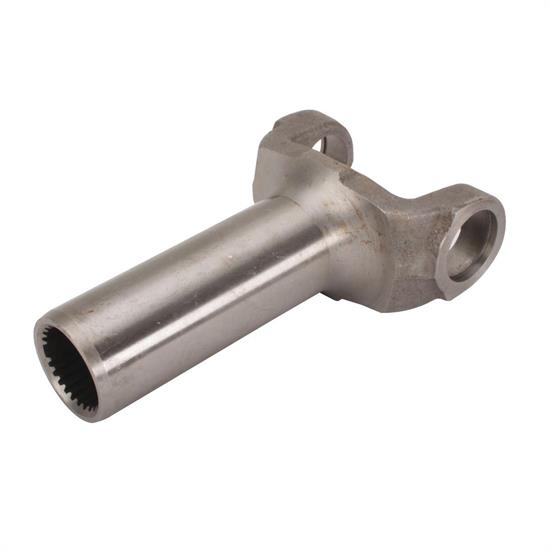

GM Transmission Front Driveshaft Slip Yoke, 27-Spline, 5-1/2 Inch
Universal Fit, 1310 Yoke U-Joint Series, 27 Spline Count, 6.25" Overall Length, Steel, Natural
- This 5-1/2" stock length slip yoke is a great replacement for stock yokes that are worn or damaged
- Fits the common GM 1-3/16" x 27 splined output shafts found on GM 3 and 4 speed manual, TH350, Powerglide, 700R4, 4L60, and 200-4R transmissions
- Stock length has 3 3/4" of slip length
- Also fits Bert, Brinn, and Falcon transmissions
- Uses 1310 U-joint with external snap rings which is very common and easy to find conversion U-joints if needed
Stock length (5-1/2") slip yoke for GM applications with 1-3/16" x 27-spline output shaft. Works with 1310 series U-joints.
- This yoke measures 5-1/2" from tip to centerline of u-joint
- This yoke is grooved for an "external" u-joint cap retaining clip
- The machined length on the yoke is 3-3/4"
The expressed measurement or length of the slip yoke is taken from the center of the u-joint to tip, not overall.
Fits over the output shaft of the following transmissions:
- Common GM/Saginaw 3 & 4 speed transmissions with a 1-3/16" x 27 spline output shaft
- Powerglide, T-350, 700R-4, 200R-4, and 4L60 automatic transmissions
- Muncie M20/M21 and Borg Warner T-5, T-10 & T-56 27-spline manual transmissions
Item DetailsFor 3-7/32" X 1-1/16" u-joints
( T350 ) - GM 27-spline, 1.5" OD Seal Dia., Fits Late Power Glide, Turbo 200, Turbo 350, 700R4, 4L60, 4L65, 4L70, Muncie, Saginaw, Borg Warner Trans
- The expressed measurement or length of the slip yoke is taken from the center of the u-joint to tip, not overall. This yoke measures 5-1/2" from tip to centerline of U-joint. The machined length on the yoke is 3-3/4".
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
