#120D52516802645

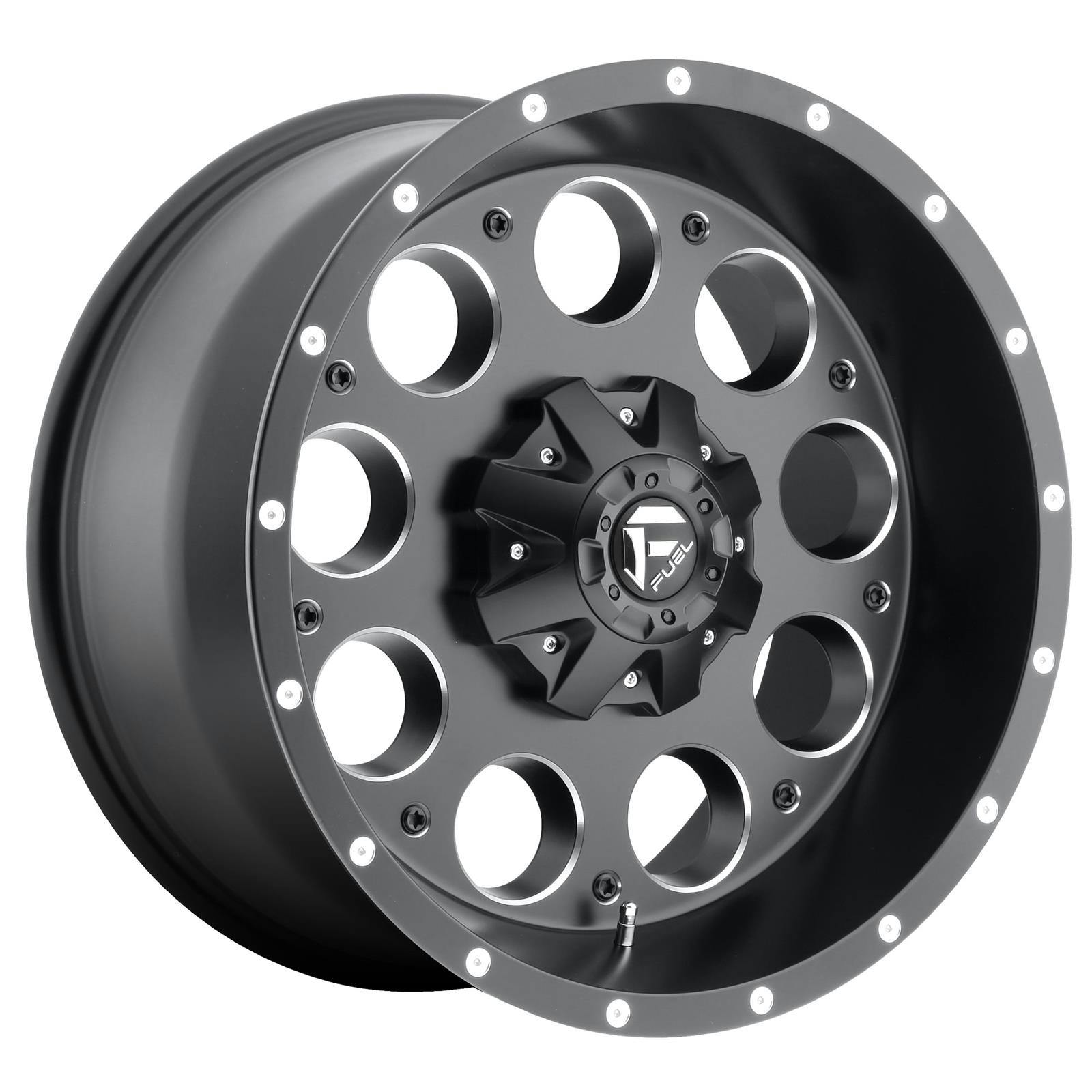

Fuel Off-Road D52516802645 Revolver Series Wheel, 16 x 8
$298.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Wheel Diameter | 16 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x127 mm |
| Wheel Backspace | 4.54" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFuel Off-Road Wheels D52516802645 Details
Fuel Off-Road Wheels D52516802645 Details
Established in 2009, Fuel Off-Road has been capturing the attention of off-road enthusiasts with their cutting edge designs, fitments, and technological advancements. Fuel Off-Road offers the latest in off-road wheel design and engineering innovations on the market.
They pride themselves in their ability to provide every off-road enthusiast with the aesthetics and function they desire in a variety of fitments. From stock to lifted, dually to trophy truck, and a wide range of UTV applications, Fuel Off-Road offers the most complete line of wheels on the off-road market today.
- Features a Matte Black Milled Finish
- Wheel diameter of 16 inches with a width of 8 inches
- Made from Cast Aluminum
- 1-year warranty on wheel finish
Guides & Documents
Fuel Off-Road Wheels D52516802645 Specifications
Fuel Off-Road Wheels D52516802645 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | D52516802645 |
| Brand | Fuel Off-Road Wheels |
| Wheel Diameter | 16 Inch |
| Width | 8" |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x5 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x127 mm |
| Wheel Backspace | 4.54" |
| Wheel Material Type | Cast Aluminum |
| Wheel Offset | 1 mm |
| Wheel Backspace Range | 4.500" - 4.999" |
| Finish | Matte |
| Color | Black |
| Beadlock Included | No |
| Material Type | Cast Aluminum |
| Bolt Pattern | 5 on 4.5" | 5" |
| GENERAL | |
| DOT-Approved | Yes |
| Center Bore Diameter | 72.56" |
| Weight | 26 lbs. |
| Load Capacity | 2200 lbs. |
| Sold in Quantity | Each |
| Valve Stem Included | No |
| GTIN Code | 885463836621 |
| TPMS Sensor Compatible | Yes |
| Lug Nut Seat Style | 60 Degree Conical |
| Center Cap Included | Yes |
| Lug Nuts Included | No |
