Flex-A-Lite 232 Electric Cooling Fan,12 Inch Flex Wave,Reversible

The revolutionary, patent-pending Flex-Wave™ electric fan from Flex-A-Lite® has greater airflow, is more efficient and is quieter than traditional S-blade and straight-blade designs. The Flex-Wave fan moves up to 20 percent more airflow than Flex-A-Lite Trimline fans, and up to 25 percent more airflow than the comparable electric fans from the competitors! This reversible 12-inch Flex-Wave fan moves 1,325 cfm of airflow.

Converting from a belt-driven fan to a Flex-A-Lite electric fan frees up wasted horsepower and increases gas mileage. When used as an auxiliary fan, these units will provide additional cooling.

More than having just a different look, the Flex-Wave electric-fan blade has several aerodynamic advantages for air movement:

• Choose fan diameter: 12, 14 or 16 Inch

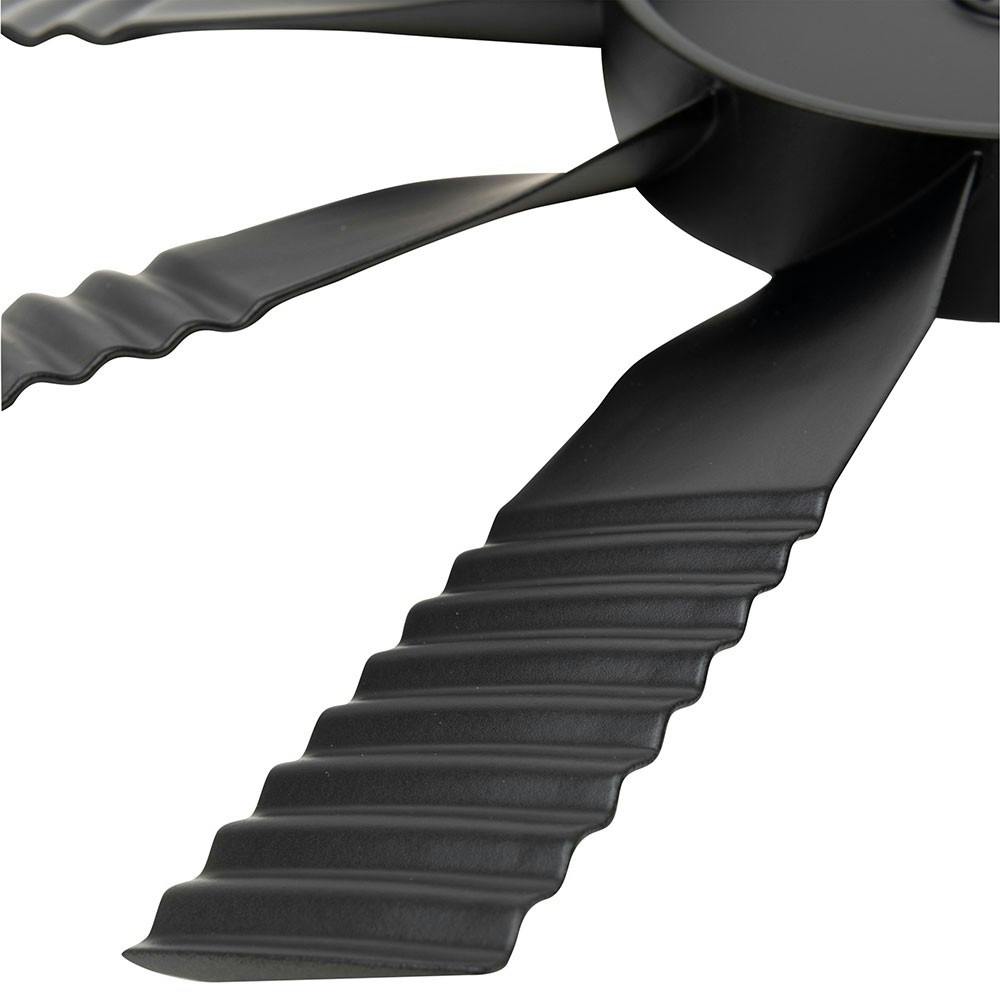

• The leading edge of the fan blade is no longer a single, solid line. The sine-wave design creates leading edges that cut through the air first. This starts movement in the air around the blade with greater efficiency.
• The wave surface of the blades creates channels for the air to move along, producing more airflow and reducing energy losses.
• The wave surface forms a winglet at the tip of the blade, further increasing efficiency by reducing air vortices.
• The trailing edge of the fan blade also has variations, which reduces wind noise.
• 10 blades
• 20 amp fuse rating
• Amp draw:
  • 12 Inch Fan @ 8 Amps
  • 14 Inch Fan @ 10 Amps
  • 16 Inch Fan @ 11 Amps
• Height/Width/Depth:
  • 12" Fan = 13 x 12 x 3-1/2 Inches
  • 14" Fan = 14-3/4 x 14-1/4 x 3-1/2 Inches
  • 16" Fan = 16-1/2 x 16 x 3-3/4 Inches
• Air Flow:
  • 12" Fan @ 1,325 CFM
  • 14" Fan @ 1,900 CFM
  • 16" Fan @ 2,660 CFM
