Equus E8264 8000 Series 2 Inch Electric Oil Pressure Gauge
$56.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2" Gauge Diameter, Analog Gauge Series
See more details
Key Specs
| MFG. Part # | E8264 |
| Brand | Equus |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEquus E8264 Details
Equus E8264 Details

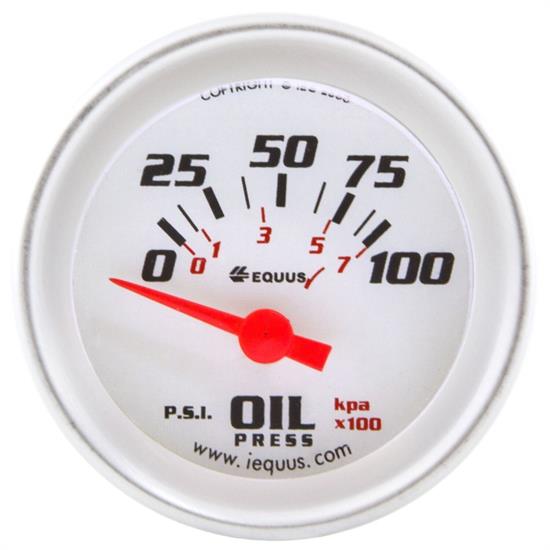

This accurate, durable, and simple to install iEquus 8000 Performance 2 in. electrical pressure gauge features race inspired styling, 90 degree sweep, white dial, satin silver aluminum bezel, and backlit illumination for efficiently monitoring engine oil pressure. Installation hardware included. Additional adapters sold separately.
- 0 to 100 PSI / 0 - 70 kPa
- Back-Lit™ illumination for night use. Includes red, green, blue and yellow bulb covers.
- 270 degree analog needle sweep provides improved visibility and resolution.
- Aluminum bezel is lightweight and optimizes appearance
- Rear twist-on ring mount design makes mounting simple
- Includes 1/8 NPT sensor with brass adapters for 1/4 NPT and 1/8 BSPT
- Features 1/4 in. male spade terminals for electrical connections. Wiring not included.
- Includes installation instructions in English, French, and Spanish.
Charts
Guides & Documents
Equus E8264 Specifications
Equus E8264 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | E8264 |
| Brand | Equus |
| GENERAL | |
| Speedway Motors Catalog Part # | 184-E8264 |
| Gauge Diameter | 2" |
| Gauge Series | Analog |
| Gauge Style | Electric | Air-Core |
| Gauge Range | 0-100 psi |
| Sending Unit Included | Yes |
| Gauge Face Color | White |
| Lettering Color | Black |
| Needle Color | White |
| Lighted | Yes |
| Lighting Type | Incandescent |
| Light Color | Red, Green, Blue, Yellow Incandescent |
| Liquid Filled | No |
| Gauge Sweep | 90 Degree |
| Overall Diameter | 2.25" |
| Body Diameter | 2" |
| Depth | 2.25" |
| Pressure Rating | 100 psi |
| Bezel Finish | Aluminum |
| Sold in Quantity | Each |
| Notes | 12 Month Warranty |
| Bezel Style | Equus V |
| Included Adapter/Fitting | Yes |
| Included Tubing | no |
| Includes Bulb and Socket | Yes |
| Includes Mounting Bracket(s) | Yes |
| GTIN Code | 047923082645 |
| Lens Style | Flat |
| Pointer Color | Orange |
| Includes Sensor Unit | Yes |
| Mounting Hardware Included | Yes |
