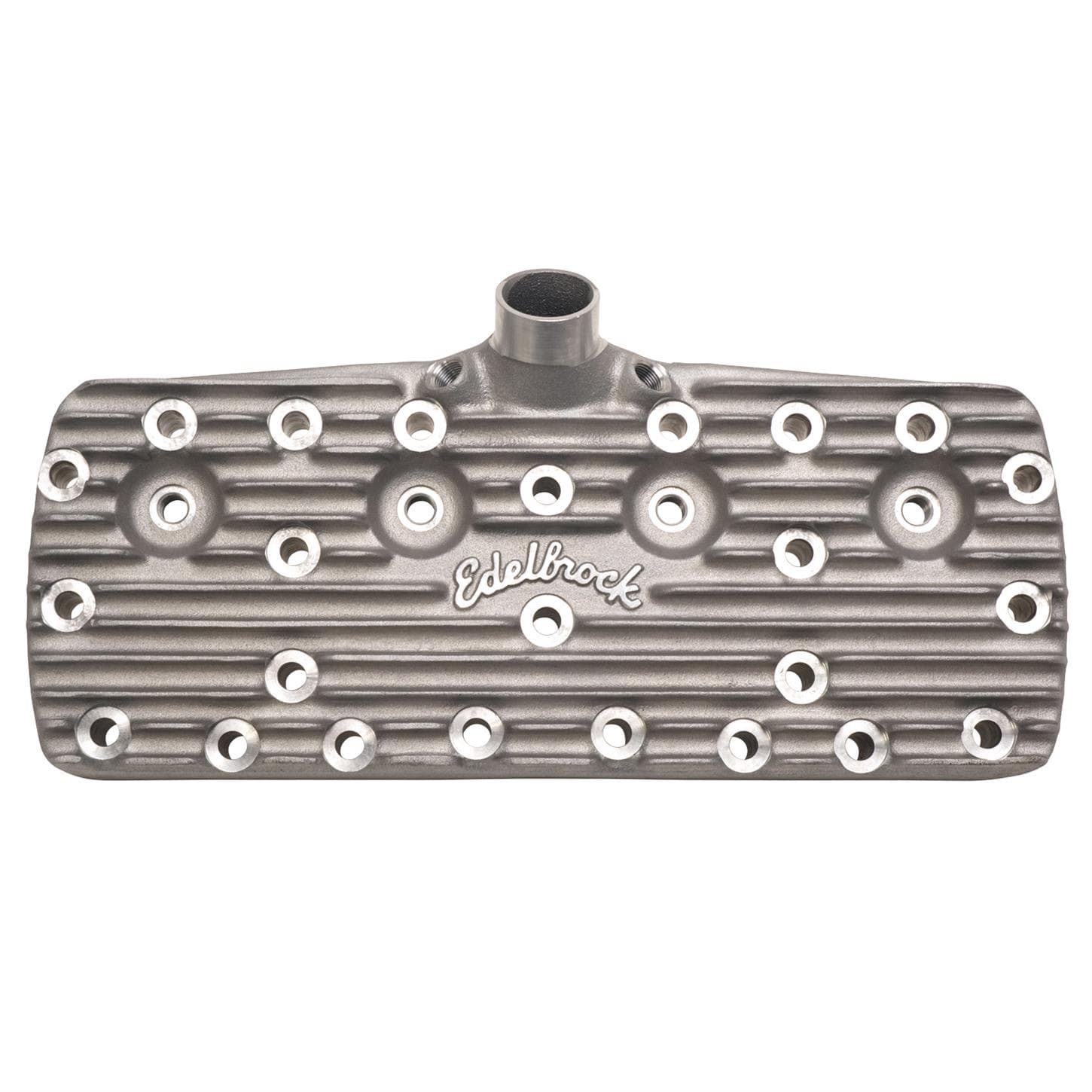

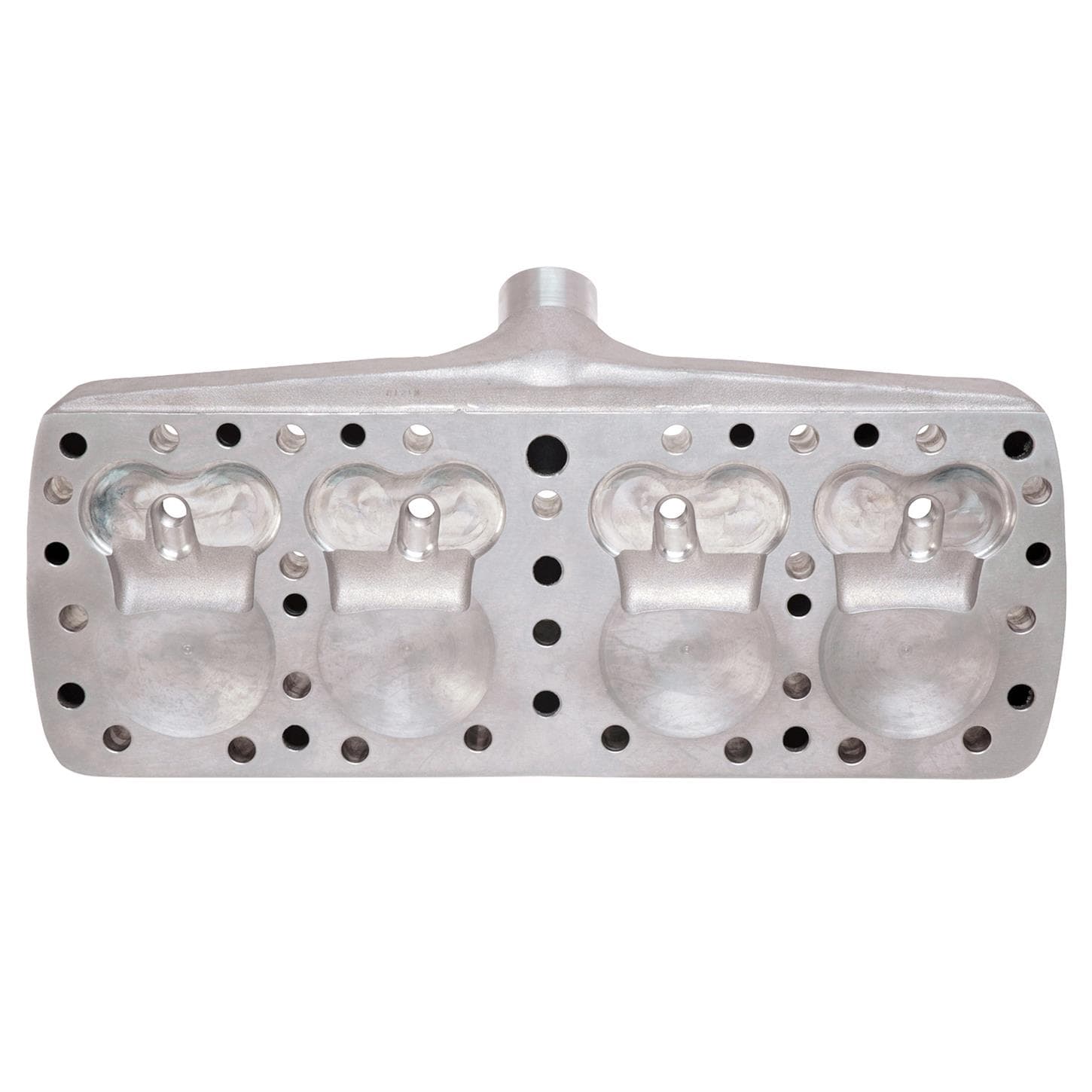

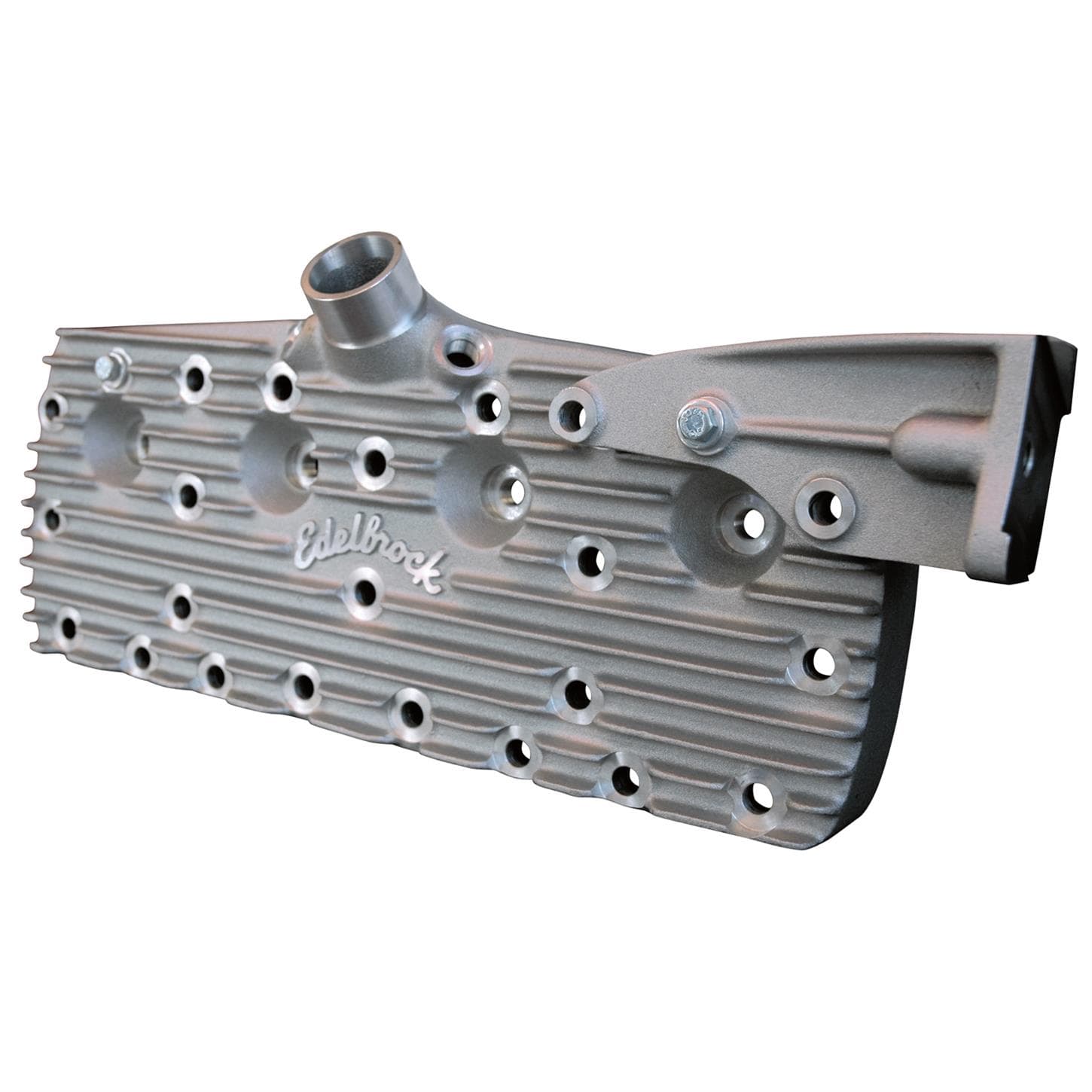

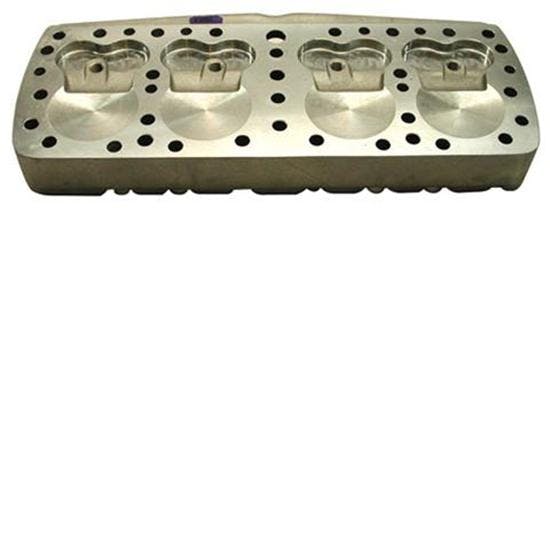

Edelbrock 1125 1939-48 Ford Flathead Cylinder Heads
Edelbrock 1125 1939-48 Ford Flathead Cylinder Heads
Edelbrock

|

#3251125

Edelbrock 1125 1939-48 Ford Flathead Cylinder Heads

  • This is the original Edelbrock design for Fords and Mercury's
  • Measures 2-3/8" from the bottom surface to the top of the fins
  • Specifically designed to fit the 1939-1948 Ford flathead V8 engine
See More

Letter Type:

Traditional

Block Type

$987.50

pair

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Bare Cylinder Head Style, Aluminum, Natural

  • This is the original Edelbrock design for Fords and Mercury's
  • Measures 2-3/8" from the bottom surface to the top of the fins
  • Specifically designed to fit the 1939-1948 Ford flathead V8 engine
  • They a cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum
  • Features a 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke)
See more details

Key Specs

MFG. Part #1125
Cylinder Head StyleBare
Material TypeAluminum
FinishNatural
Combustion Chamber Volume65cc
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 1125 Details

Edelbrock Flathead Cylinder Head

Designed specifically for Ford Flathead engines from 1938 to 1948, the Edelbrock #1125 Flathead Cylinder Heads offer the perfect blend of performance, durability, and classic style.

  • Compatibility: Fits Ford and Mercury Flathead 221 (3.6L) & 239 (3.9L) engines.
  • Design: Features the original Edelbrock script logo and rugged internals and externals, ribbed for enhanced durability.
  • Material: Cast in the USA at the Edelbrock Foundry from T-6 tempered A356 aluminum for maximum strength and longevity.
  • Performance: Increased water capacity for improved cooling, combined with excellent breathing characteristics for optimal engine performance.
  • Compression: The 65cc heads support an 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke). The compression ratio increases approximately 3/10 of a percent with each 1/8" stroke.

Further enhance the performance and look of your Ford and Mercury cars with the Edelbrock Flathead Cylinder Head. Suitable for those seeking to retain the vintage aesthetic while demanding modern performance.

Charts

Specs

  • 2-3/8" from the bottom surface to the top of the fins
  • 1-7/8" from the bottom surface to the top (not including the fins)
  • Use with copper head gaskets

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
CA Prop 65
CARB warning

Edelbrock 1125 Specifications

KEY SPECS
MFG. Part #1125
BrandEdelbrock
Cylinder Head StyleBare
Material TypeAluminum
FinishNatural
Combustion Chamber Volume65cc
GENERAL
Combustion Chamber Volume Range60cc - 69cc
Spark Plug StyleStraight
Exhaust Port ShapeRound
NotesUses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in QuantityPair
GTIN Code085347011254
