Edelbrock 1126 1938-1948 Flathead Block Letter Heads

#3251126

Edelbrock 1126 1938-1948 Flathead Block Letter Heads

Name: Edelbrock 1126 1938-1948 Flathead Block Letter Heads
Brand: Edelbrock
SKU: 3251126
Price: 1152.95 USD
Availability: InStock
Rating: 5 (7 reviews)

7 Reviews

3 Questions

Specifically designed for the 1938-1948 Flathead Ford
It is the original Edelbrock design for Fords and Mercury's
Has a 8.0:1 compression ratio on blocks with a 3/16" base relief

Letter Type:

Block Type

Traditional

$1,152.95

/pair

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Bare Cylinder Head Style, Aluminum, Natural

Specifically designed for the 1938-1948 Flathead Ford
It is the original Edelbrock design for Fords and Mercury's
Has a 8.0:1 compression ratio on blocks with a 3/16" base relief
It's cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum
The compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke

See more details

Key Specs

MFG. Part #	1126
Cylinder Head Style	Bare
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	65cc

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 1126 Details

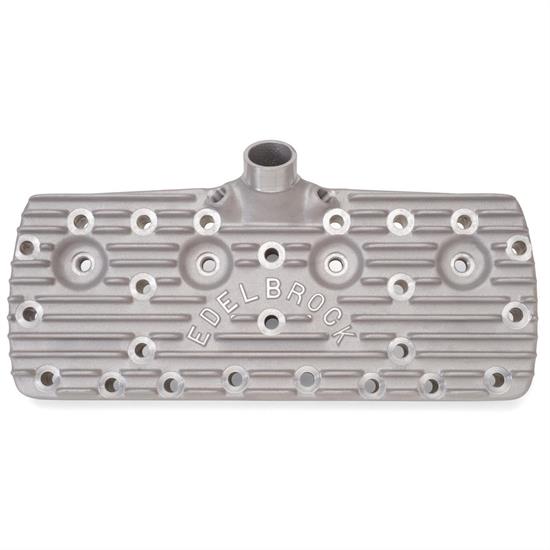

Edelbrock now offers their 1938-1948 Ford/Mercury 24-Stud Flathead cylinder heads with the traditional block letters Vic Sr. used. Extensive R&D and modern CAD systems give these heads more power potential and greater heat control than any before! Works well on stock or modified engines.

These heads have 65cc chambers producing 8:1 compression with the stock bore & stroke. Plus, they accept up to .410" valve lift for use with most performance cams.

The original Edelbrock design for Fords and Mercurys
Rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics
Cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum
8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke)
Compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke

Charts

325-1126 Instructions (PDF)

Specs

2-3/8" from the bottom surface to the top of the fins
1-7/8" from the bottom surface to the top (not including the fins)

Guides & Documents

Cylinder Heads Installation Instructions (3251126)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 1126 Specifications

KEY SPECS
MFG. Part #	1126
Brand	Edelbrock
Cylinder Head Style	Bare
Material Type	Aluminum
Finish	Natural
Combustion Chamber Volume	65cc

GENERAL
Combustion Chamber Volume Range	60cc - 69cc
Spark Plug Style	Straight
Exhaust Port Shape	Round
Notes	Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity	Pair
GTIN Code	085347011261

Ratings & Reviews

7 Reviews

Overall Assessment

Customers applaud the product for its top-notch quality, perfect fit, and ease of installation. Noted for professional manufacturing, the product delivers excellent performance and is priced reasonably. Users expressed satisfaction with the product's aesthetic appeal and durability, looking forward to long-term usage and service. The product excels with its great fit, especially on specific models like the 46 Merc. Block and 49 pickup. It also offers significant valve clearance, making it suitable for street-driven rods. The product has been hailed superior in the market, proving itself a good investment.

Write A Review

7 reviews

Filter by Ratings

Sort Reviews

i would buy these heads again

5.0

2 years ago

Bend oregon

Verified

these heads will look great on my flathead, also add performance . the heads are built well can't wait to get them installed. the price was also fair.

Would Recommend

Would by again

5.0

2 years ago

Verified

Great quality!

Excellent product, very easy and smooth trade

5.0

4 years ago

Ralf

New Zealand

Verified

Top of the line product, professionally manufactured at a reasonable price. What else can you expect?

Would Recommend

I wouldn't hesitate to buy this product again.

5.0

4 years ago

Big Otto

Shenandoah Valley Va.

Verified

The fit and finish is perfect, I can't wait to hear it rumble.

Would Recommend

nice quality

5.0

11 years ago

irishpol

Pflugerville TX.

Verified

beautiful quality product, very pleased.

Would Recommend

The heads went on nicely. A great fit. I

5.0

11 years ago

Flippo

Aztalan, WI. 53549 USA

The heads fit perfectly and were easily applied to the 46 Merc. Block. We started the engin in a stand and they sealed perfectly. I look forward to many years of service when I get the motor installed in my 49 pickup . Thank you every one at Speedway!!!!

Beautiful heads

5.0

11 years ago

Buckelew

Ardmore, AL USA

Verified

I have wanted a set of BLOCK SCRIPT Edelbrock heads for years now, and finally got a pair from Speedway. They were easy to install (would be worried if they weren't), and sealed with the block the first time. Obviously at .410 chamber height, valve clearance for my street-driven rod was no problem. Eventually, I plan to on using these heads on a replica of a specific early lake racer, and look forward to many years of use. Unfortunately, I don't know what they look like compared to the original BLOCK SCRIPT head, and hope they appear a dead-on copy when installed.

Would Recommend

Showing 7 of 7 reviews

Questions & Answers

3 Questions • 3 Answers

Sort Questions

l have a 1938 ford with a 1952 flathead in it. l also have a set of 1938 to 1948 Edelbrock heads. Is it possiable to use these heads on the 1952 block?

by Butch

• 9 years ago

1 answer

View Answer

Can these heads be used with stock cylinder head studs or do they require "special" length studs?

by Fred

• 10 years ago

1 answer

View Answer

Is this for a pair or a single head?

by hb32

• 10 years ago

1 answer

View Answer

3 of 3 questions shown

Fitment

1932 Ford 1 Ton Pickup

221 Ford Flathead V8

1933-1936 Ford 1 Ton Pickup

Ford Flathead V8 17 Stud 221 18
Ford Flathead V8 21 Stud 221 40

1937-1938 Ford 1 Ton Pickup

136 Ford Flathead V8
221 Ford Flathead V8

1939-1940 Ford 1 Ton Pickup

136 Ford Flathead V8
239 Ford Flathead V8

1941-1947 Ford 1 Ton Pickup

221 Ford Flathead V8
239 Ford Flathead V8

1932-1936 Ford 1/2 Ton Pickup

221 Ford Flathead V8

1937-1938 Ford 1/2 Ton Pickup

136 Ford Flathead V8
221 Ford Flathead V8

1939-1947 Ford 1/2 Ton Pickup

221 Ford Flathead V8
239 Ford Flathead V8

1932-1936 Ford 3/4 Ton Pickup

221 Ford Flathead V8

1937-1938 Ford 3/4 Ton Pickup

136 Ford Flathead V8
221 Ford Flathead V8

1939-1947 Ford 3/4 Ton Pickup

221 Ford Flathead V8
239 Ford Flathead V8

1952 Ford Country Sedan

239 Ford Flathead V8

1952 Ford Country Squire

239 Ford Flathead V8

1939-1940 Ford Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1946-1948 Ford Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1948 Ford F1

221 Ford Flathead V8
239 Ford Flathead V8

1948 Ford F2

221 Ford Flathead V8
239 Ford Flathead V8

1948 Ford F3

221 Ford Flathead V8
239 Ford Flathead V8

1932 Ford Model 18

221 Ford Flathead V8

1942 Ford Model 21 A Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1933-1934 Ford Model 40

221 Ford Flathead V8

1934 Ford Model 40 A

221 Ford Flathead V8

1933 Ford Model 46

221 Ford Flathead V8

1935 Ford Model 48

221 Ford Flathead V8

1935 Ford Model 50

221 Ford Flathead V8

1936 Ford Model 67

221 Ford Flathead V8

1936 Ford Model 68

221 Ford Flathead V8

1937 Ford Model 74

136 Ford Flathead V8
221 Ford Flathead V8

1937 Ford Model 78

136 Ford Flathead V8
221 Ford Flathead V8

1938 Ford Model 81 A

136 Ford Flathead V8
221 Ford Flathead V8

1938 Ford Model 82 A

136 Ford Flathead V8
221 Ford Flathead V8

1938 Ford Model 85

136 Ford Flathead V8
221 Ford Flathead V8

1932-1934 Ford Model BB

221 Ford Flathead V8

1940 Ford Pickup

221 Ford Flathead V8

1932-1936 Ford Sedan Delivery

221 Ford Flathead V8

1937-1938 Ford Sedan Delivery

136 Ford Flathead V8
221 Ford Flathead V8

1939-1942 Ford Sedan Delivery

221 Ford Flathead V8
239 Ford Flathead V8

1946-1947 Ford Sedan Delivery

221 Ford Flathead V8
239 Ford Flathead V8

1942 Ford Super Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1946-1948 Ford Super Deluxe

221 Ford Flathead V8
239 Ford Flathead V8

1946-1948 Mercury Mercury

221 Ford Flathead V8
239 Ford Flathead V8

1941 Mercury Series 19A

239 Ford Flathead V8

1942 Mercury Series 29A

221 Ford Flathead V8
239 Ford Flathead V8

1939 Mercury Series 99A

239 Ford Flathead V8

1940 Mercury Series O9A

239 Ford Flathead V8
