-12%

EMPI 3896 Pol. Stainless Steel Fuel Tank, 10x24 In., End Fill, 7.5 Gal

-12%

#1413896

EMPI 3896 Pol. Stainless Steel Fuel Tank, 10x24 In., End Fill, 7.5 Gal

Name: EMPI 3896 Pol. Stainless Steel Fuel Tank, 10x24 In., End Fill, 7.5 Gal
Brand: EMPI
SKU: 1413896
Price: 267.99 USD
Availability: InStock
Rating: 5 (5 reviews)

5 Reviews

3 Questions

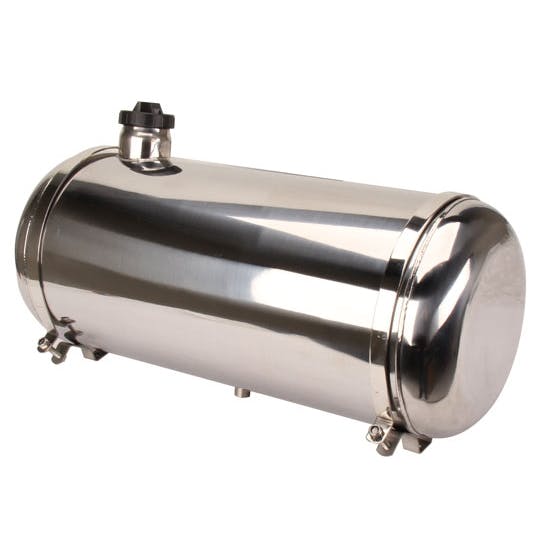

Measures 10" x 24" and has a 7-1/2 gallon capacity (approximate measurement)
Made from polished stainless steel and has an end filler neck location
Kit comes with 2 polished stainless steel straps, stainless steel hardware, and a twist on gas cap for a quick and simple install

Size:

10" x 24" / 7.5 Gallon

8" x 24" / 5 Gallon 8" x 30" / 6.1 Gallon 8" x 33" / 6.8 Gallon10" x 30" / 9.5 Gallon 10" x 33" / 10.5 Gallon 10" x 40" / 13.5 Gallon

$267.99

/each

In Stock

$305.20

Save $37.21

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Spun/Round Fuel Tank Style, Polished

Measures 10" x 24" and has a 7-1/2 gallon capacity (approximate measurement)
Made from polished stainless steel and has an end filler neck location
Kit comes with 2 polished stainless steel straps, stainless steel hardware, and a twist on gas cap for a quick and simple install

See more details

Key Specs

MFG. Part #	3896
Fuel Tank Style	Spun/Round
Fuel System Type	Carbureted
Capacity	7.5 gallons
Material Type	Stainless Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

EMPI 3896 Details

Highly Polished 100% Stainless Steel...Great looks and No Rust...ever! Stronger with a more durable finish - that won't dull - like polished aluminum. Available in 5 lengths, 10" diameter and include 2 polished stainless steel straps, stainless steel hardware, and a twist on gas cap.

10" x 24"
End location filler neck
7-1/2 gallon capacity (approximate measurement)
Polished stainless steel
Designed for Off-Road use
Cap and straps included
Features female 1/4" NPT threaded outlet fitting

Replacement Aluminum cap available as # 141-3538

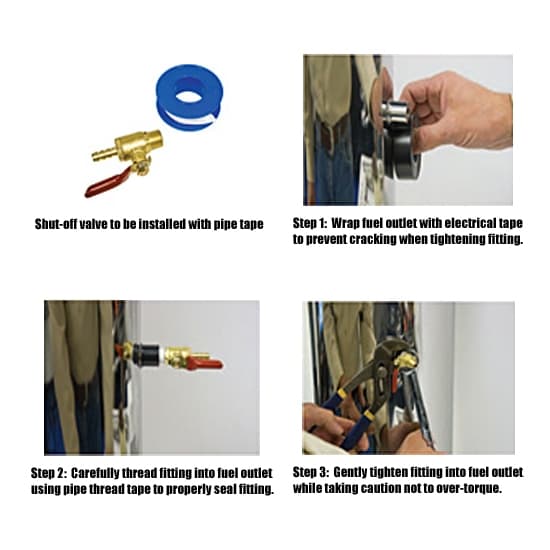

Note: When installing a fitting or shut-off valve (not included- shown for illustration/reference ONLY), caution must be taken not to over-torque and crack or break the fuel outlet. (See alternate photo)

Warranty Information

Speedway Motors cannot facilitate the return of defective EMPI products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact EMPI directly for any post installation issue

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

EMPI 3896 Specifications

KEY SPECS
MFG. Part #	3896
Brand	EMPI
Fuel Tank Style	Spun/Round
Fuel System Type	Carbureted
Capacity	7.5 gallons
Material Type	Stainless Steel
Finish	Polished
Color	Natural
Sending Unit Included	No
Fuel Pump Included	No
Tank Straps Included	Yes
Overall Length	24"
Overall Width	10"
Overall Height	13"
Hardware Included	Yes
Overall Diameter	10"
Fuel Capacity Range	5.00-9.99 Gallons

GENERAL
Sold in Quantity	Each
Notes	1413538 CAP 1412929 STRAPS
Fuel Type	Gasoline
Outlet Fitting	1/4" NPT

Ratings & Reviews

5 Reviews

Overall Assessment

Customers unanimously appreciate the product for its high quality and practicality. Many reiterated that the product adequately met their needs, specifically spotlighting its easy installation process. Users also expressed admiration for the aesthetic of the item, noting it looked even better in person. Taken as a whole, customers highlighted the product's superior material quality which exceeded their expectations, and they strongly recommend this product over other competitive options.

Write A Review

5 reviews

Filter by Ratings

Sort Reviews

This thing worked out perfect and have everything needed wit

5.0

5 years ago

Grand junction,co

Verified

Used it in a Street Rod project and worked out perfect for what we needed

i would buy this product again

5.0

6 years ago

dry wall Dave

pekin, illinois

Verified

great quality, easy installation. was exactly what I needed to finish my car

Would Recommend

I Highly Recommend

5.0

8 years ago

The Mole

Hermann, Mo.

Verified

What a great looking tank. Saved me countless hours to fabricate. What a quality tank, highly recommend.

Would Recommend

Better than it looks on the photo

5.0

8 years ago

Biker Mal

London. U.K.

Verified

Amazing bit of kit. I wish we made this sort of product over here. Really good quality.

Would Recommend

I would buy again

5.0

8 years ago

Model a joe

Mentor ohio

Verified

It's in my model a coupe

Would Recommend

Showing 5 of 5 reviews

Questions & Answers

3 Questions • 3 Answers

Sort Questions

What type of cap is it? Is it a threaded type or old school dog ear,like a 55 Chevy cap 1/4 turn? Thanks!

by Jim

• 10 years ago

1 answer

View Answer

Can this tank be used as a gravity feed fuel tank?

by Ctivis

• 11 years ago

1 answer

View Answer

Do you recommend a specific sending unit for the empi3896 10x24 tank? How is a sending unit installed on the round tanks?

by ham1

• 12 years ago

1 answer

View Answer

3 of 3 questions shown
