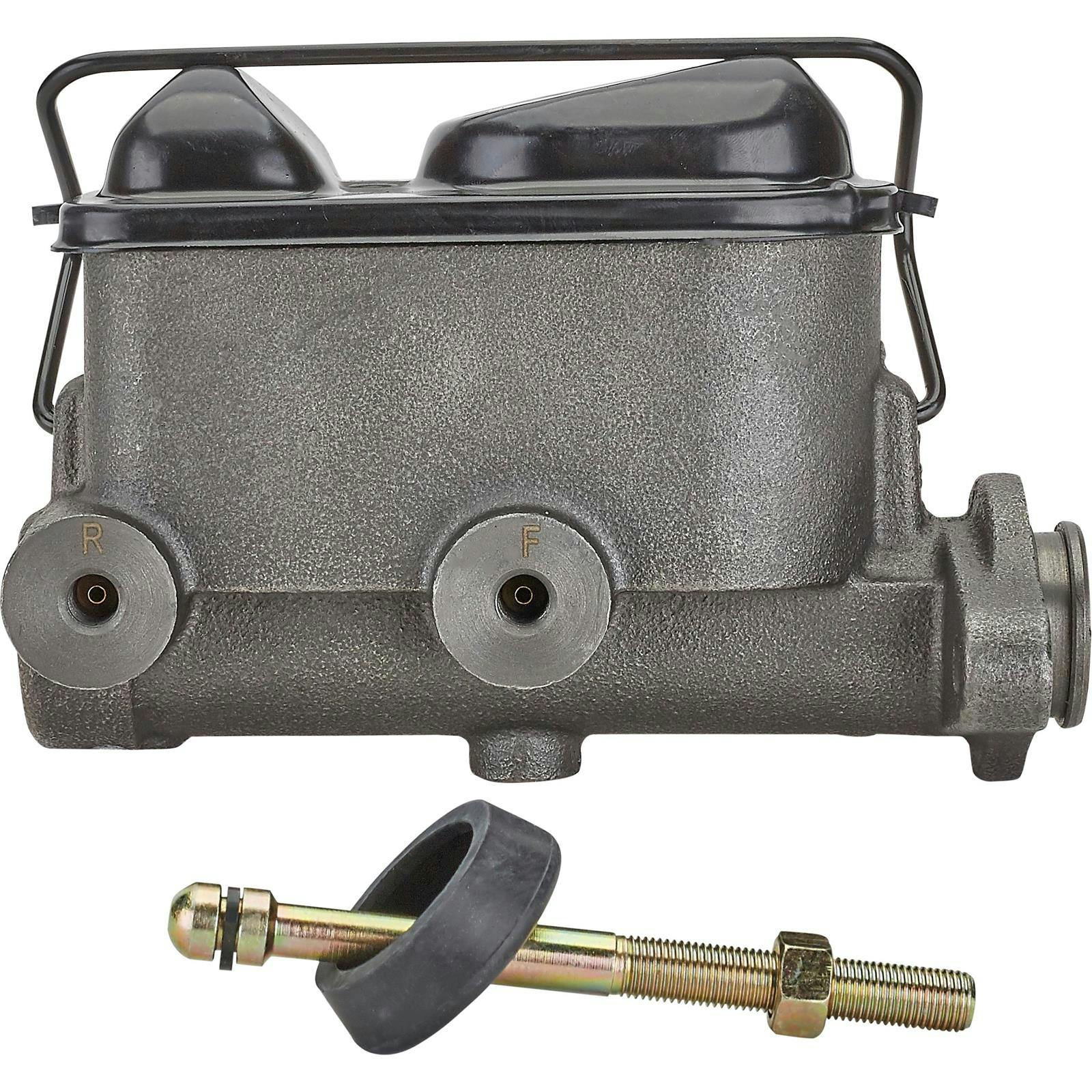

Dual Feed Brake Master Cylinder, 1 Inch Bore & 3/8 Forged Yoke

#9100564

Dual Feed Brake Master Cylinder, 1 Inch Bore & 3/8 Forged Yoke

Name: Dual Feed Brake Master Cylinder, 1 Inch Bore & 3/8 Forged Yoke
Brand: Speedway Motors
SKU: 9100564
Price: 105.99 USD
Availability: InStock
Rating: 4.8 (4 reviews)

4 Reviews

1 Question

Dual feed master cylinder with 2 bolt flange style mounts
This cylinder is similar to what was used on mid-70's Fords (Mustang, Fairlane/LTD, etc. with disc front/drum rear)
7-1/4" long without the pushrod, add 2" for the pushrod

$105.99

/kit

In Stock

$107.98

Save $1.99

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Firewall Position, Tandem Outlet Count

Dual feed master cylinder with 2 bolt flange style mounts
This cylinder is similar to what was used on mid-70's Fords (Mustang, Fairlane/LTD, etc. with disc front/drum rear)
7-1/4" long without the pushrod, add 2" for the pushrod
3" wide from the outside of the reservoir to the edge of the outlets
Simple and effective clevis for attaching threaded brake pedal push rods

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9100564
Brand	Speedway Motors
Master Cylinder Bore Size	1 Inch
Master Cylinder Material	Cast Iron
Finish	Natural

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9100564 Details

Dual feed master cylinder with 2 bolt flange style mount. Use with Speedway brake pedal assemblies. This cylinder is similar to those used on mid-70's Fords (Mustang, Fairlane/LTD, etc. with disc front/drum rear).

Works well in disc/disc or disc/drum brake setups
Mounting Bolt Holes: 3/8" or 10mm
7 1/4" long without the pushrod, add 2" for the pushrod
3" wide from the outside of the reservoir to the edge of the outlets
Mounting flange is 4" wide
Master cylinder is also 3-7/16" tall without a cap
Included push rod is threaded 3/8"-24 (fine thread)
Speedway Motors Brake Rod Clevis
Simple and effective piece for attaching threaded brake pedal push rods
Pushrod boot included

Uses 3/8"-24 female inverted flare outlets. If plumbing with AN 3 lines, you will need two each of these AN to IFM Adapters.

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Guides & Documents

Effects of Master Cylinder Bore Size on Your Brake System

Speedway Motors 9100564 Specifications

KEY SPECS
MFG. Part #	9100564
Brand	Speedway Motors
Master Cylinder Bore Size	1 Inch
Master Cylinder Material	Cast Iron
Finish	Natural

GENERAL
Position	Firewall
Brake System Type	Disc/Drum
Outlet Count	Tandem
Reservoir Type	Integral
Reservoir Included	Yes
Pushrods Included	Yes
Outlet Fitting	3/8"-24 IFF
Overall Width	4"
Overall Height	5"
Mounted Length	7"
Centerline of Holes	3.25"
Sold in Quantity	Kit
Notes	Includes 3/8"-24 threaded push rod.

Ratings & Reviews

4.8

4 Reviews

Overall Assessment

Unfortunately, the available reviews provide limited insight. One customer confirms the product description is accurate, but in-depth details about the product's quality and features are missing. Another customer has not yet tried the product. Further feedback is needed for a complete summary.

Write A Review

4.8

4 reviews

Filter by Ratings

Sort Reviews

Yes I would

4.0

a year ago

Chevy 2

Carrollton Ohio

Verified

In my 1923 T Bucket roadster

WORKED WELL NO PROBLEM

5.0

2 years ago

SKIPPY

BATAVIA NY

Verified

WORKED GREAT WITH 3/16 LINES TO CONVERT FROM SINGLE TO DUAL

Would Recommend

Worked perfectly

5.0

2 years ago

Donnie

Verified

Description correct

Would Recommend

yes

5.0

3 years ago

eric

cannada

Verified

i did not install it yet

Would Recommend

Showing 4 of 4 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

which tank is front and back thanks

by eric

• 3 years ago

1 answer

View Answer

1 of 1 questions shown
