Doug's Headers D603 Full Length Header, 1-3/4 In, 65-76 Ford Truck, CC

Name: Doug's Headers D603 Full Length Header, 1-3/4 In, 65-76 Ford Truck, CC
Brand: Dougs Headers
SKU: 447D603
Price: 939.95 USD
Availability: InStock

Write a Review

Ask a Question

$939.95

set

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before June 7th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

360, 390, Full-Length Header Tube Type, Ceramic Coated

See more details

Key Specs

Header Tube Type	Full-Length
Finish	Ceramic Coated
Flange Style	Standard
Primary Tube Diameter	1-3/4"
Material Type	Steel

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Dougs Headers D603 Details

Doug's 2/4 WD TRUCK HEADERS Long Tube Metallic Ceramic CoatedHeader development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.

3/8" thick flanges... no warping
CNC mandrel bent tubes... accurate fit & better flow
Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
Heavy 16 gauge tubing... longer life
Tubes are pre-polished to remove scratches and the header isfinished with a Metallic Ceramic Thermal Barrier Coating polished to a high luster appearance offering corrosion and heat resistance up to 1400 degrees

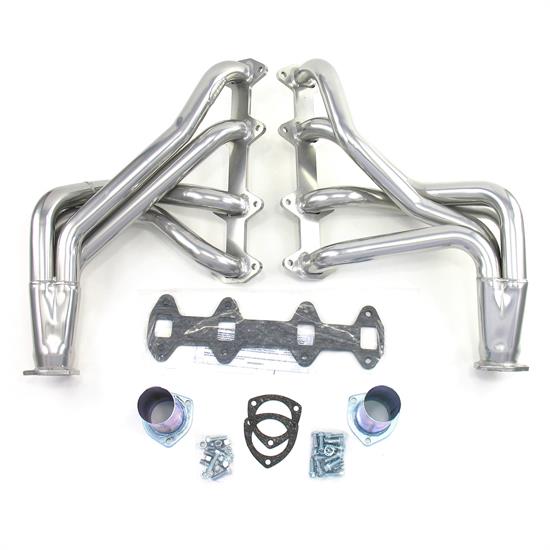

Doug's Headers D603 1 3/4" 4-Tube Full Length Header Ford Truck FE 65-76 Metallic Ceramic Coating
Ceramic Coated
Collector: 2 1/2
Port Shape: SAP
Primary Tube: 1 3/4
Does not fit Camper Special models
emissions code: legal only for off-highway use (except in California or states that have adopted California emission standards)
with A/C
with Column Shift
with Floor Shifter

Doug's Headers D603 1 3/4" 4-Tube Full Length Header Ford Truck FE 65-76 Metallic Ceramic Coating
Ceramic Coated
Collector: 2 1/2
Port Shape: SAP
Primary Tube: 1 3/4
Does not fit Camper Special models
emissions code: legal only for off-highway use (except in California or states that have adopted California emission standards)
with A/C
with Column Shift
with Floor Shifter

Application

1975-1976 Ford F-150 5.9L/360 V8
1975-1976 Ford F-150 6.4L/390 V8
1975-1976 Ford F-250 5.9L/360 V8
1975-1976 Ford F-250 6.4L/390 V8

Charts

Installation Instructions (PDF)

Guides & Documents

Headers Instruction Sheet (447D603)

Choosing the Right Headers

CARB Warning

For use on pre-1966 vehicles only

Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Dougs Headers D603 Specifications

KEY SPECS
MFG. Part #	D603
Brand	Dougs Headers
Header Tube Type	Full-Length
Finish	Ceramic Coated
Flange Style	Standard
Primary Tube Diameter	1-3/4"
Material Type	Steel
Color	Silver
Weld-Up	No
Collector Diameter	2-1/2 Inch
Hardware Included	Yes
Gasket(s) Included	Yes

GENERAL
Speedway Motors Catalog Part #	447-D603
Sold in Quantity	Pair
GTIN Code	694342509965
