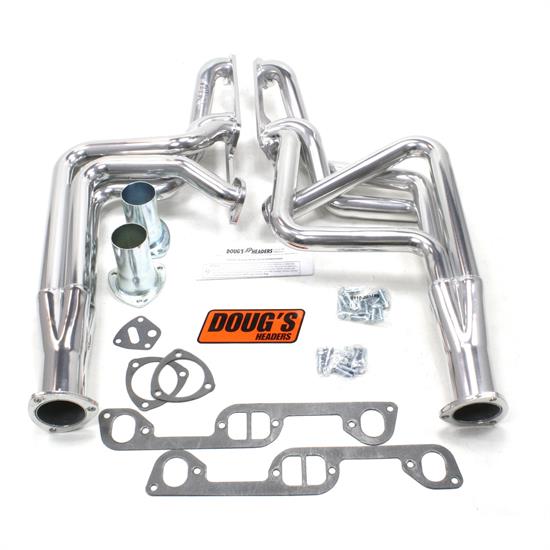

Doug's Headers D570 Full Length Header 1-3/4 In, 70-81 Firebird, CC
Doug's Headers D570 Full Length Header 1-3/4 In, 70-81 Firebird, CC

Doug's Headers D570 Full Length Header 1-3/4 In, 70-81 Firebird, CC

350 Pontiac V8, 400 Pontiac V8, 455 Pontiac V8, 403 Oldsmobile V8, Full-length Header Tube Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Doug's Headers D570 Full Length Header 1-3/4 In, 70-81 Firebird, CC
Doug's Headers D570 Full Length Header 1-3/4 In, 70-81 Firebird, CC
Doug's Headers D570 Full Length Header 1-3/4 In, 70-81 Firebird, CC
X
Doug's Headers D570 Full Length Header 1-3/4 In, 70-81 Firebird, CC
Zoomed In Image
We estimate this item will ship on or before August 16th.
Part # 447D570
Save 29%
$813.90
$1,150.08
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Header Tube Type:
Full-length
Finish:
Ceramic Coated
Flange Style:
Standard
Primary Tube Diameter:
1-3/4"
Material Type:
Steel
Color:
Silver
Weld-Up:
No
Exhaust Port Shape:
D-port
MFG. Part #:
D570
Collector Diameter:
3 Inch
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair
GTIN Code:
694342509866

Info

Doug's PASSENGER CAR HEADERS Long Tube Metallic Ceramic CoatedHeader development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.

  • 3/8" Thick machined flanges... no warping
  • CNC mandrel bent tubes... accurate fit & better flow
  • Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
  • Heavy 16 gauge tubing... longer life
  • Tubes are pre-polished to remove scratches and the header isfinished with a Metallic Ceramic Thermal Barrier Coating polished to a high luster appearance offering corrosion and heat resistance up to 1400 degrees

Application

1970-1979 Pontiac Firebird 5.7L/350 V8
1970-1979 Pontiac Firebird 6.6L/400 V8
1977-1979 Pontiac Firebird 6.6L/403 V8
1971-1976 Pontiac Firebird 7.5L/455 V8

Notes

  • Doug's Headers D570 1 3/4" 4-Tube Full Length Header Pontiac Firebird 326-455 70-81 Metallic Ceramic Coating
  • Ceramic Coated
  • Collector: 3
  • Port: D
  • Primary: 1 3/4
  • exc. states w/Calif. emission stds
  • fits W/Milodon oil pans 30355
  • 31660
  • 31665
  • removal/modification of locking steering column reqd
  • factory heads w/o end bolt holes must be drilled and tapped
  • with Floor Shifter
  • with A/C
  • For Off-Road Use Only

Charts

Installation Instructions (PDF)

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 15 business days for Dougs Headers to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
