Doug's Headers D356 Full Length Header, 1-5/8 In, 55-57 SBC, CC
$1,016.32
/set
Factory Shipped
$1,117.95
Save $101.63
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle and engine to verify Fitment
Select Vehicle
Select Engine
Key Specs
| MFG. Part # | D356 |
| Header Tube Type | Long Tube |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDoug's Headers D356 Details
Doug's Headers D356 Details

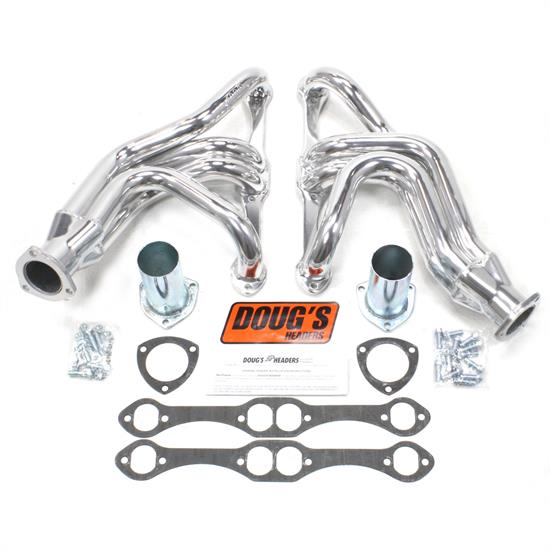

Doug's PASSENGER CAR HEADERS Mid Length Metallic Ceramic CoatedHeader development and design is complex and requires a substantial amount of time and resources to do the job right! Many manufacturers are unwilling to make the commitment and instead offer compromised headers at lower prices. Doug's will not compromise performance, quality or fit to compete with inferior designs at cheap prices. Every Doug's header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Doug's headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.
- 3/8" Thick machined flanges... no warping
- CNC mandrel bent tubes... accurate fit & better flow
- Mid length headers provide improved groungd clearance for popular muscle cars and street rods
- Heavy 16 gauge tubing... longer life
- Tubes are pre-polished to remove scratches and the header isfinished with a Metallic Ceramic Thermal Barrier Coating polished to a high luster appearance offering corrosion and heat resistance up to 1400 degrees
- Doug's Headers D356 1 5/8" 4-Tube Shorty Header Chevrolet Pass Small Block Chevrolet 55-57 Metallic Ceramic Coating
- Shorty Design - Ceramic Coated
- Collector: 2 1/2
- Port: OVL
- Primary: 1 5/8
- exc. states w/Calif. emission stds
- Fits D-Port heads
- Use orig. style V8 pitman arm
- Fits 605 steering
- Will not fit if eng. is 3/4+ in. forward
- Fits TCI mount kit 725-7005-80
- Fits W/Danchuk mounts
- with A/C
- For Off-Road Use Only
- with Column Shift
- with Floor Shifter
- Doug's Headers D356 1 5/8" 4-Tube Shorty Header Chevrolet Pass Small Block Chevrolet 55-57 Metallic Ceramic Coating
- Shorty Design - Ceramic Coated
- Collector: 2 1/2
- Port: OVL
- Primary: 1 5/8
- exc. states w/Calif. emission stds
- Fits D-Port heads
- Use orig. style V8 pitman arm
- Fits 605 steering
- Will not fit if eng. is 3/4+ in. forward
- Fits TCI mount kit 725-7005-80
- Fits W/Danchuk mounts
- with A/C
- For Off-Road Use Only
- with Column Shift
- with Floor Shifter
Application
1957 Chevrolet Bel Air 4.6L/283 V8
1955-1956 Chevrolet Corvette 4.3L/265 V8
1957 Chevrolet Corvette 4.6L/283 V8
Charts
Doug's Headers D356 Specifications
Doug's Headers D356 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | D356 |
| Brand | Doug's Headers |
| Header Tube Type | Long Tube |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
| Material Type | Steel |
| Color | Silver |
| Weld-Up | No |
| Collector Diameter | 2-1/2 Inch |
| Finish | Ceramic Coated |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| GENERAL | |
| Sold in Quantity | Pair |
| GTIN Code | 694342509101 |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
Will these headers work on a zz4 350 with angle plugs and clear the 605 steering box in a 55 chevy belair ?
by Ron D.
• 6 years ago
1 answer
View Answer
1 of 1 questions shown
Fitment
Fitment
1959 Chevy 3A
2-Piece Rear Main Chevy 283
1959 Chevy 3B
2-Piece Rear Main Chevy 283
1959 Chevy 3C
2-Piece Rear Main Chevy 283
1959 Chevy 3D
2-Piece Rear Main Chevy 283
1959 Chevy 3E
2-Piece Rear Main Chevy 283
1959 Chevy 3F
2-Piece Rear Main Chevy 283
1959 Chevy 3G
2-Piece Rear Main Chevy 283
1957 Chevy Bel Air
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958-1967 Chevy Bel Air
2-Piece Rear Main Chevy 283
1958-1967 Chevy Biscayne
2-Piece Rear Main Chevy 283
1958-1961 Chevy Brookwood
2-Piece Rear Main Chevy 283
1960-1967 Chevy C10
2-Piece Rear Main Chevy 283
1960-1967 Chevy C10 Suburban
2-Piece Rear Main Chevy 283
1960-1967 Chevy C20
2-Piece Rear Main Chevy 283
1960-1967 Chevy C20 Suburban
2-Piece Rear Main Chevy 283
1960-1967 Chevy C30
2-Piece Rear Main Chevy 283
1966-1967 Chevy Caprice
2-Piece Rear Main Chevy 283
1964-1967 Chevy Chevelle
2-Piece Rear Main Chevy 283
1963-1967 Chevy Chevy II
2-Piece Rear Main Chevy 283
1957-1961 Chevy Corvette
2-Piece Rear Main Chevy 283
1957 Chevy Del Ray
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Del Ray
2-Piece Rear Main Chevy 283
1959-1960 Chevy El Camino
2-Piece Rear Main Chevy 283
1964-1967 Chevy El Camino
2-Piece Rear Main Chevy 283
1967 Chevy G20 Van
2-Piece Rear Main Chevy 283
1958-1967 Chevy Impala
2-Piece Rear Main Chevy 283
1960-1967 Chevy K10
2-Piece Rear Main Chevy 283
1960-1967 Chevy K10 Suburban
2-Piece Rear Main Chevy 283
1960-1967 Chevy K20
2-Piece Rear Main Chevy 283
1967 Chevy K20 Panel
2-Piece Rear Main Chevy 283
1960-1967 Chevy K20 Suburban
2-Piece Rear Main Chevy 283
1959-1961 Chevy Kingswood
2-Piece Rear Main Chevy 283
1964-1967 Chevy Malibu
2-Piece Rear Main Chevy 283
1957 Chevy Nomad
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958-1961 Chevy Nomad
2-Piece Rear Main Chevy 283
1957 Chevy One-Fifty Series
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1961-1962 Chevy P30 Series
2-Piece Rear Main Chevy 283
1959-1961 Chevy Parkwood
2-Piece Rear Main Chevy 283
1957 Chevy Sedan Delivery
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Sedan Delivery
2-Piece Rear Main Chevy 283
1947-1959 Chevy Suburban
2-Piece Rear Main Chevy 265
1960-1967 Chevy Suburban
2-Piece Rear Main Chevy 283
1955 Chevy Truck
2-Piece Rear Main Chevy 265
1957 Chevy Truck
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Truck
2-Piece Rear Main Chevy 283
1960 Chevy Truck
2-Piece Rear Main Chevy 283
1955 Chevy Two-Ten Series
2-Piece Rear Main Chevy 265
1957 Chevy Two-Ten Series
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Yeoman
2-Piece Rear Main Chevy 283
1966 GMC 1000
2-Piece Rear Main Chevy 283
1960 GMC 1000 Series
2-Piece Rear Main Chevy 283
1962-1965 GMC 1000 Series
2-Piece Rear Main Chevy 283
1960-1965 GMC 1500 Series
2-Piece Rear Main Chevy 283
1966 GMC 2500
2-Piece Rear Main Chevy 283
1960-1965 GMC 2500 Series
2-Piece Rear Main Chevy 283
1960-1966 GMC 3000
2-Piece Rear Main Chevy 283
1960-1966 GMC 3500
2-Piece Rear Main Chevy 283
1967 GMC C25/C2500 Pickup
2-Piece Rear Main Chevy 283
1967 GMC C25/C2500 Suburban
2-Piece Rear Main Chevy 283
1967 GMC C35/C3500 Pickup
2-Piece Rear Main Chevy 283
1967 GMC K25/K2500 Pickup
2-Piece Rear Main Chevy 283
1967 GMC K25/K2500 Suburban
2-Piece Rear Main Chevy 283
1967 GMC K35/K3500 Pickup
2-Piece Rear Main Chevy 283
1966 GMC P1000
2-Piece Rear Main Chevy 283
1955-1959 GMC Suburban
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1960-1966 GMC Suburban
2-Piece Rear Main Chevy 283
1955 GMC Truck
2-Piece Rear Main Chevy 265
1956-1960 GMC Truck
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Commander
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Cruiser
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Daytona
2-Piece Rear Main Chevy 283
1966 Studebaker Wagonaire
2-Piece Rear Main Chevy 283
