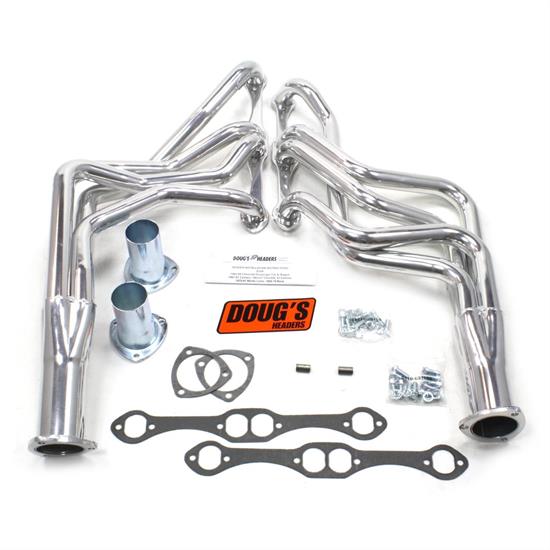

Doug's Headers D308 Full Length Header, 1-5/8 In, 1964-89 GM, CC
Chevy Small Block V8, Pontiac V8, Full-length Header Tube Type, Ceramic Coated, Steel, Silver
Details
Info
Coated Header for Chevy
- Camaro (67-81) 265-400
- Chevelle (64-87) 265-400
- Chevy II, Nova (68-79) 265-400
- El Camino (64-87) 265-400
- Monte Carlo (70-87) 265-400
- Passenger Car, Wagon (65-89) 265-400 Engine
Please see our online catalog for specific application information.
Every Dougs header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Dougs headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.Every Dougs header is tuned with the proper tube size and length to efficiently remove all the exhaust from each cylinder, reducing pumping losses resulting in a dramatic increases in horsepower and torque. Dougs headers are carefully developed on the vehicles they are intended to fit and are re-checked numerous times during the design and manufacturing process.
- 3/8" Thick machined flanges... no warping
- CNC mandrel bent tubes... accurate fit & better flow
- Precision formed long transition collectors and long tube design... reduces backpressure and increases higher RPM horsepower
- Heavy 16 gauge tubing... longer life
- Tubes are pre-polished to remove scratches and the header isfinished with a Metallic Ceramic Thermal Barrier Coating polished to a high luster appearance offering corrosion and heat resistance up to 1400 degrees
Application
- 1967-81 Chevy Camaro
- Fits 265-400 CI engines
- Does not fit 67-69 Camaro with A/C
- Fits D-Port cylinder heads including ZZ4 crate engines
- Fits most angle plug heads
- Installation requires left-side A/C bracket part number H7608.1979 and later vehicles with short compressors can use the stock bracket
- Must use non-shell type motor mounts
- Requires removal or modification of locking steering columns if equipped
- 1967-77 Chevy Chevelle/Malibu
- Fits 265-400 CI engines
- Fits D-Port cylinder heads including ZZ4 crate engines
- Fits most angle plug heads
- Installation requires left side A/C bracket part number H7608.1979 and later vehicles with short compressors can use the stock bracket.
- Must use non-shell type motor mounts
- Requires removal or modification of locking steering columns if equipped
- 1968-79 Chevy II, Nova
- Fits 265-400 CI engines
- Fits D-Port cylinder heads including ZZ4 crate engines
- Fits most angle plug heads
- Installation requires left side A/C bracket part number H7608.1979 and later vehicles with short compressors can use the stock bracket.
- Must use non-shell type motor mounts
- Requires removal or modification of locking steering columns if equipped
- 1964-77 Chevy El Camino
- Fits 265-400 CI engines
- Fits D-Port cylinder heads including ZZ4 crate engines
- Fits most angle plug heads
- Installation requires left side A/C bracket part number H7608.1979 and later vehicles with short compressors can use the stock bracket.
- Must use non-shell type motor mounts
- Requires removal or modification of locking steering columns if equipped
- 1970-87 Chevy Monte Carlo
- Fits 265-400 CI engines
- Fits D-Port cylinder heads including ZZ4 crate engines
- Fits most angle plug heads
- Installation requires left side A/C bracket part number H7608.1979 and later vehicles with short compressors can use the stock bracket.
- Must use non-shell type motor mounts
- Requires removal or modification of locking steering columns if equipped
- 1965-89 Chevy Passenger Car, Wagon
- Fits 265-400 CI engines
- Fits D-Port cylinder heads including ZZ4 crate engines
- Fits most angle plug heads
- Installation requires left side A/C bracket part number H7608.1979 and later vehicles with short compressors can use the stock bracket.
- Must use non-shell type motor mounts
- Requires removal or modification of locking steering columns if equipped
- 1967-81 Pontiac Firebird, Trans Am Engine Swap
- Fits 265-400 CI Chevy engines
- Does not fit 67-69 Camaro engine with A/C
- Fits D-Port cylinder heads including ZZ4 crate engines
- Fits most angle plug heads
- Installation requires left side A/C bracket part number H7608.1979 and later vehicles with short compressors can use the stock bracket.
- Must use non-shell type motor mounts
- Requires removal or modification of locking steering columns if equipped
Notes
- Doug's Headers D308 1 5/8" 4-Tube Full Length Header Chevrolet 67-81 Camaro 64-77 Chevelle/Malibu 64-77 El Camino 70-77 Monte Carlo 65-89 Passenger Car/Wagon 265-400 Chevrolet Engine Metallic Ceramic Coating
- Ceramic Coated
- Collector: 3
- Port: OVL
- Primary: 1 5/8
- exc. states w/Calif. emission stds
- Fits D-Port heads
- req. left side AC bracket H7608
- removal or modification of locking steering column reqd.
- use left side AC bracket H7608
- W/short compressors use stock bracket
- removal/modification of locking steering column reqd.
- with A/C
- For Off-Road Use Only
- with Column Shift
- with Floor Shifter
