COMP Cams SK61-246-4 Magnum Hydraulic Camshaft Kit, Chevy 194/230/250

#282SK612464

COMP Cams SK61-246-4 Magnum Hydraulic Camshaft Kit, Chevy 194/230/250

Name: COMP Cams SK61-246-4 Magnum Hydraulic Camshaft Kit, Chevy 194/230/250
Brand: COMP Cams
SKU: 282SK612464
Price: 408.95 USD
Availability: InStock

Write a Review

Ask a Question

Duration:

280/280 (Standard Kit)

240/248 (Deluxe Kit)280/280 (Base Kit)280/280 (Deluxe KIt)

$408.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	230
RPM Range	1500 to 5500
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams SK61-246-4 Details

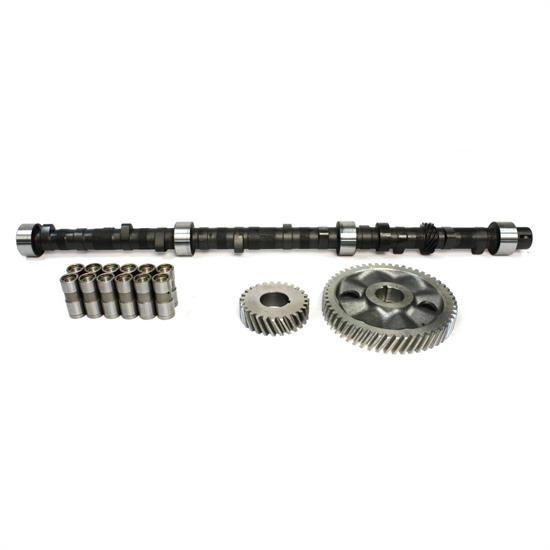

SK61-246-4 - Camshaft Kit, C61 280H.

Chevrolet 194-250 c.i. 6 CYL. 1963-1984. Hydraulic-Great for Street Machines. Needs stall, header & gears. Rough idle. Magnum Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Great high RPM power
Easy on valve train parts
Can be used with mild ratio rocker arms & traditional performance valve springs
Best with aftermarket converter & 9.5:1+ compression

Application

1963-84 Chevy 194-250

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams SK61-246-4 Specifications

KEY SPECS
MFG. Part #	SK61-246-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	230
RPM Range	1500 to 5500
Lobe Separation	110 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.536"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.536"
Sold in Quantity	Kit
Intake Duration	280
Exhaust Duration	280
GTIN Code	036584471196
Grind Number	280H
External Ignition Box Required	No
Valve Springs Required	Yes
Valve Spring Included	No
Lifters Included	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	Yes
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1973-1975 Buick Apollo

250 Chevy Turbo-Thrift 6 I6

1968 Buick Special

250 Chevy Turbo-Thrift 6 I6

1931 Chevy AE Independence Truck

194 Chevy Stovebolt Inline 6

1963-1964 Chevy Bel Air

230 Chevy Turbo-Thrift 6 I6

1965 Chevy Bel Air

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1966-1973 Chevy Bel Air

250 Chevy Turbo-Thrift 6 I6

1963-1964 Chevy Biscayne

230 Chevy Turbo-Thrift 6 I6

1965 Chevy Biscayne

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1966-1972 Chevy Biscayne

250 Chevy Turbo-Thrift 6 I6

1969-1974 Chevy Blazer

250 Chevy Turbo-Thrift 6 I6

1969-1972 Chevy Brookwood

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy C10

230 Chevy Turbo-Thrift 6 I6

1966-1969 Chevy C10

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1970-1984 Chevy C10

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy C10 Panel

230 Chevy Turbo-Thrift 6 I6

1966-1967 Chevy C10 Panel

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy C10 Suburban

230 Chevy Turbo-Thrift 6 I6

1966-1980 Chevy C10 Suburban

250 Chevy Turbo-Thrift 6 I6

1982-1987 Chevy C15

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1963-1965 Chevy C20

230 Chevy Turbo-Thrift 6 I6

1966-1984 Chevy C20

250 Chevy Turbo-Thrift 6 I6

1967 Chevy C20 Panel

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy C20 Suburban

230 Chevy Turbo-Thrift 6 I6

1966-1974 Chevy C20 Suburban

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy C30

230 Chevy Turbo-Thrift 6 I6

1966-1975 Chevy C30

250 Chevy Turbo-Thrift 6 I6

1978-1980 Chevy C30

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy C30 Panel

230 Chevy Turbo-Thrift 6 I6

1966 Chevy C30 Panel

250 Chevy Turbo-Thrift 6 I6

1967-1970 Chevy Camaro

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1971-1979 Chevy Camaro

250 Chevy Turbo-Thrift 6 I6

1966-1974 Chevy Caprice

250 Chevy Turbo-Thrift 6 I6

1977-1979 Chevy Caprice

250 Chevy Turbo-Thrift 6 I6

1964-1966 Chevy Chevelle

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1967-1969 Chevy Chevelle

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1970-1973 Chevy Chevelle

250 Chevy Turbo-Thrift 6 I6

1962-1963 Chevy Chevy II

194 Chevy Turbo-Thrift 6 I6

1964-1966 Chevy Chevy II

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1967 Chevy Chevy II

194 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1968 Chevy Chevy II

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1932 Chevy Confederate BB

Chevy 194

1964-1966 Chevy El Camino

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1967-1969 Chevy El Camino

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1970-1977 Chevy El Camino

250 Chevy Turbo-Thrift 6 I6

1969-1970 Chevy Estate

250 Chevy Turbo-Thrift 6 I6

1975-1984 Chevy G10

250 Chevy Turbo-Thrift 6 I6

1964-1965 Chevy G10 Van

194 Chevy Turbo-Thrift 6 I6

1966 Chevy G10 Van

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1967-1969 Chevy G10 Van

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1970-1974 Chevy G10 Van

250 Chevy Turbo-Thrift 6 I6

1975-1984 Chevy G20

250 Chevy Turbo-Thrift 6 I6

1965 Chevy G20 Van

230 Chevy Turbo-Thrift 6 I6

1967-1969 Chevy G20 Van

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1970-1974 Chevy G20 Van

250 Chevy Turbo-Thrift 6 I6

1976 Chevy G30

250 Chevy Turbo-Thrift 6 I6

1978-1979 Chevy G30

250 Chevy Turbo-Thrift 6 I6

1981-1984 Chevy G30

250 Chevy Turbo-Thrift 6 I6

1970-1974 Chevy G30 Van

250 Chevy Turbo-Thrift 6 I6

1963-1964 Chevy Impala

230 Chevy Turbo-Thrift 6 I6

1965 Chevy Impala

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1966-1974 Chevy Impala

250 Chevy Turbo-Thrift 6 I6

1977-1979 Chevy Impala

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy K10

230 Chevy Turbo-Thrift 6 I6

1966-1969 Chevy K10

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1970-1984 Chevy K10

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy K10 Suburban

230 Chevy Turbo-Thrift 6 I6

1966-1980 Chevy K10 Suburban

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy K20

230 Chevy Turbo-Thrift 6 I6

1966-1976 Chevy K20

250 Chevy Turbo-Thrift 6 I6

1978-1980 Chevy K20

250 Chevy Turbo-Thrift 6 I6

1967 Chevy K20 Panel

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy K20 Suburban

230 Chevy Turbo-Thrift 6 I6

1966-1974 Chevy K20 Suburban

250 Chevy Turbo-Thrift 6 I6

1968-1974 Chevy K30

250 Chevy Turbo-Thrift 6 I6

1975-1982 Chevy K5 Blazer

250 Chevy Turbo-Thrift 6 I6

1969-1972 Chevy Kingswood

250 Chevy Turbo-Thrift 6 I6

1964-1966 Chevy Malibu

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1967 Chevy Malibu

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1973-1977 Chevy Malibu

250 Chevy Turbo-Thrift 6 I6

1969-1970 Chevy Nova

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1971-1979 Chevy Nova

250 Chevy Turbo-Thrift 6 I6

1976 Chevy P30

250 Chevy Turbo-Thrift 6 I6

1979 Chevy P30

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy P30 Series

230 Chevy Turbo-Thrift 6 I6

1966-1967 Chevy P30 Series

250 Chevy Turbo-Thrift 6 I6

1970-1974 Chevy P30 Van

250 Chevy Turbo-Thrift 6 I6

1963-1965 Chevy Suburban

230 Chevy Turbo-Thrift 6 I6

1966-1967 Chevy Suburban

230 Chevy Turbo-Thrift 6 I6
250 Chevy Turbo-Thrift 6 I6

1930 Chevy Universal

Chevy 194

1930 Chevy Universal Truck

Chevy 194

1961 GMC 1000 Series

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1966 GMC 1500

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1967-1972 GMC C15/C1500 Pickup

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1968-1972 GMC C15/C1500 Suburban

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1967-1972 GMC C25/C2500 Pickup

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1967-1972 GMC C25/C2500 Suburban

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1967-1974 GMC C35/C3500 Pickup

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1970-1973 GMC Jimmy

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1978-1982 GMC Jimmy

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1975-1978 GMC K15

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1975-1978 GMC K15 Suburban

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1967-1974 GMC K15/K1500 Pickup

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1967-1974 GMC K15/K1500 Suburban

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1979-1980 GMC K1500 Suburban

Chevy Inline 6 250 L22
Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3

1975-1978 GMC K25

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1975-1978 GMC K25 Suburban

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1967-1974 GMC K25/K2500 Pickup

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1967-1974 GMC K25/K2500 Suburban

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1979-1986 GMC K2500 Suburban

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1994-1999 GMC K2500 Suburban

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1967-1974 GMC K35/K3500 Pickup

Chevy Inline 6 250 LD4
Chevy Inline 6 250 LE3
250 Chevy Turbo-Thrift 6 I6

1973-1977 GMC Sprint

250 Chevy Inline 6

1960-1966 GMC Suburban

250 Chevy Turbo-Thrift 6 I6
Chevy 230

1967 GMC Suburban

250 Chevy Turbo-Thrift 6 I6

1966 Studebaker Commander

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1965 Studebaker Cruiser

194 Chevy Turbo-Thrift 6 I6

1966 Studebaker Cruiser

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1965 Studebaker Daytona

194 Chevy Turbo-Thrift 6 I6

1966 Studebaker Daytona

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6

1966 Studebaker Wagonaire

194 Chevy Turbo-Thrift 6 I6
230 Chevy Turbo-Thrift 6 I6
