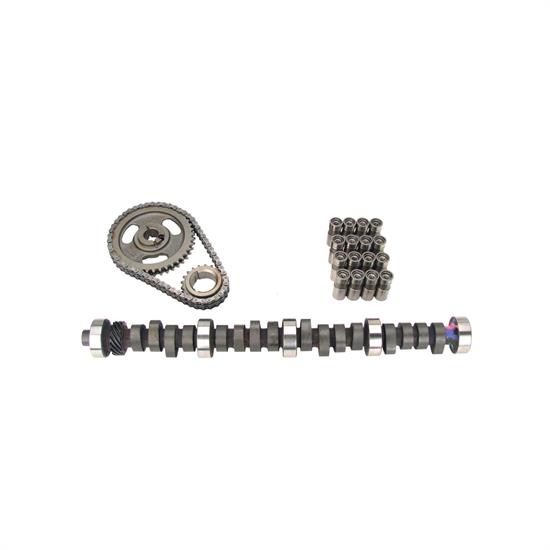

COMP Cams SK31-246-3 Xtreme Energy Hydraulic Camshaft Kit, Ford S/B

#282SK312463

COMP Cams SK31-246-3 Xtreme Energy Hydraulic Camshaft Kit, Ford S/B

Name: COMP Cams SK31-246-3 Xtreme Energy Hydraulic Camshaft Kit, Ford S/B
Brand: COMP Cams
SKU: 282SK312463
Price: 415.95 USD
Availability: InStock

Write a Review

Ask a Question

Duration:

274/286 (Standard Kit)

250/260 (Base Kit)262/270 (Standard Kit)

$415.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
RPM Range	1800 to 6000
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams SK31-246-3 Details

SK31-246-3 - Camshaft Kit, FS XE274H-10.

Ford 289-302 C.I. 8 cyl. 1963-1995. Hydraulic-Very strong torque and throttle response, 2500+ stall. Xtreme Energy Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1962-95 Ford 221-302

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams SK31-246-3 Specifications

KEY SPECS
MFG. Part #	SK31-246-3
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
RPM Range	1800 to 6000
Lobe Separation	110 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.52"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.523"
Sold in Quantity	Kit
Intake Duration	274
Exhaust Duration	286
GTIN Code	036584034513
Grind Number	FS XE274H-10
External Ignition Box Required	No
Valve Springs Required	Yes
Valve Spring Included	No
Lifters Included	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	Yes
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Fitment

1964 AC Shelby Cobra

Ford 289

1968-1973 AC Shelby Cobra

Ford 289

1967 DeTomaso Mangusta

Ford 289

1963 Ford 300

Ford 289

1966-1968 Ford Bronco

Ford 289

1962 Ford Club Wagon

Ford 221

1963-1967 Ford Club Wagon

Ford 289

1962 Ford Country Sedan

Ford 221

1963-1968 Ford Country Sedan

Ford 289

1962 Ford Country Squire

Ford 221

1963-1968 Ford Country Squire

Ford 289

1964-1968 Ford Custom

Ford 289

1964-1968 Ford Custom 500

Ford 289

1962 Ford Fairlane

Ford 221

1963-1968 Ford Fairlane

Ford 289

1962 Ford Falcon

Ford 221

1964-1968 Ford Falcon

Ford 289

1964-1965 Ford Falcon Sedan Delivery

Ford 289

1963 Ford Ford 300

Ford 289

1963-1967 Ford Galaxie

Ford 289

1963-1967 Ford Galaxie 500

Ford 289

1964-1969 Ford GT40

Ford 289

1965-1968 Ford LTD

Ford 289

1964-1968 Ford Mustang

Ford 289

1962 Ford Ranch Wagon

Ford 221

1963-1968 Ford Ranch Wagon

Ford 289

1960-1961 Ford Ranchero

Ford 289

1965-1968 Ford Ranchero

Ford 289

1964 Ford Sprint

Ford 289

1968 Ford Torino

Ford 289

1964-1967 Mercury Caliente

Ford 289

1966-1967 Mercury Capri

Ford 289

1962 Mercury Comet

Ford 221

1964-1968 Mercury Comet

Ford 289

1967 Mercury Commuter

Ford 289

1967-1968 Mercury Cougar

Ford 289

1963 Mercury Country Cruiser

Ford 289

1964-1968 Mercury Cyclone

Ford 289

1962 Mercury Meteor

Ford 221

1963 Mercury Meteor

Ford 289

1968 Mercury Montego

Ford 289

1962 Mercury Villager

Ford 221

1964-1967 Mercury Villager

Ford 289

1966-1967 Mercury Voyager

Ford 289

1963-1968 Shelby Cobra

Ford 289
