Product Summary

Chevy LS V8, Hydraulic Roller Tappet Camshaft Type

    Key Specs

    Camshaft TypeHydraulic Roller Tappet
    Intake Duration (.050" Lift)222
    Exhaust Duration (.050" Lift)224
    RPM Range1800 to 6800
    Lobe Separation112 °

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    COMP Cams K54-426-11 Details

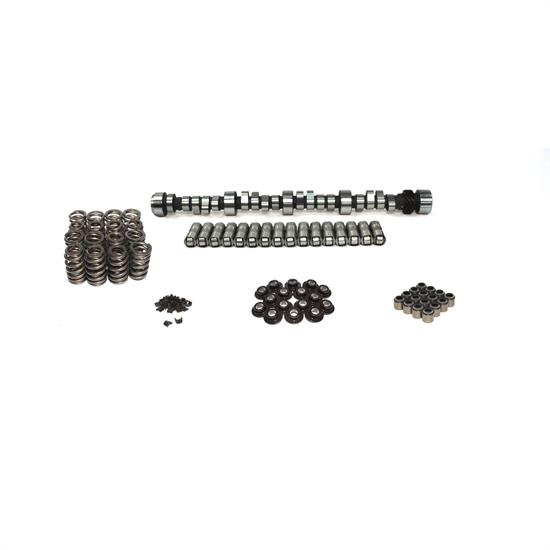

    K54-426-11 - Camshaft Kit, LS1 XR275HR-12.

    All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

    • Newest & quickest lobe profiles in the Xtreme family; provide a terrific increase in performance
    • Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
    • Work well with aftermarket cylinder heads & feature high lift

    Application

    1997-16 Chevy 294-427

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams K54-426-11 Specifications

    KEY SPECS
    MFG. Part #K54-426-11
    BrandCOMP Cams
    Camshaft TypeHydraulic Roller Tappet
    Intake Duration (.050" Lift)222
    Exhaust Duration (.050" Lift)224
    RPM Range1800 to 6800
    Lobe Separation112 °
    Lifter TypeHydraulic Roller
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.566"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.568"
    Sold in QuantityKit
    Intake Duration275
    Exhaust Duration277
    GTIN Code036584199854
    Grind NumberXR275HR
    External Ignition Box RequiredYes
    Valve Springs RequiredYes
    Valve Spring IncludedYes
    Lifters IncludedYes
    Retainers IncludedYes
    Locks IncludedYes
    Valve Stem Seals IncludedYes
    Timing Chain and Gears IncludedNo
    Assembly Lubricant IncludedYes
    Pushrods Included
    Rocker Arms IncludedNo
    Gaskets IncludedNo
