#282K512254

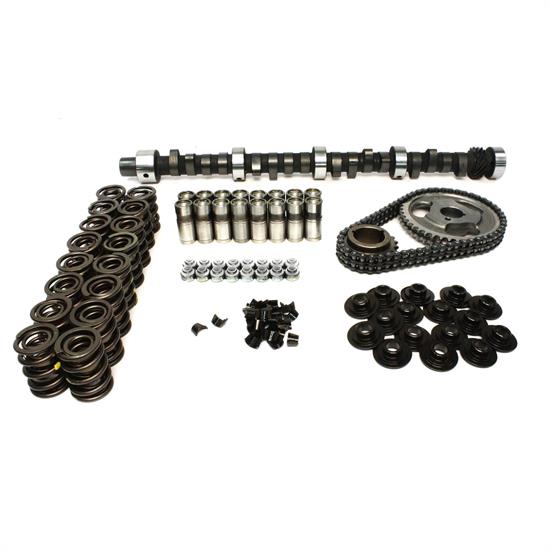

COMP Cams K51-225-4 Xtreme Energy Hydraulic Camshaft Kit, Pontiac V8
256/268 (Standard Kit)274/286 (Base Kit)268/280 (Base Kit)262/270 (Deluxe Kit)274/286 (Deluxe Kit)268/280 (Deluxe Kit)
$702.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Key Specs
| Camshaft Type | Hydraulic Flat Tappet |
| Intake Duration (.050" Lift) | 240 |
| Exhaust Duration (.050" Lift) | 246 |
| RPM Range | 2300 to 6500 |
| Lobe Separation | 110 ° |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams K51-225-4 Details
COMP Cams K51-225-4 Details
Pontiac 265-455 c.i. 8 cyl. 1955-1981. Hydraulic-Street / Strip, needs 9:1 comp. 2800+ stall, headers, gears, rough idle. Xtreme Energy Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance & assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Application
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams K51-225-4 Specifications
COMP Cams K51-225-4 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | K51-225-4 |
| Brand | COMP Cams |
| Camshaft Type | Hydraulic Flat Tappet |
| Intake Duration (.050" Lift) | 240 |
| Exhaust Duration (.050" Lift) | 246 |
| RPM Range | 2300 to 6500 |
| Lobe Separation | 110 ° |
| Lifter Type | Hydraulic Flat Tappet |
| GENERAL | |
| Intake Valve Lift w/ Rocker Arm Ratio | 0.507" |
| Exhaust Valve Lift w/ Rocker Arm Ratio | 0.51" |
| Sold in Quantity | Kit |
| Intake Duration | 284 |
| Exhaust Duration | 296 |
| GTIN Code | 036584047377 |
| Grind Number | P XE284H-10 |
| External Ignition Box Required | No |
| Valve Springs Required | No |
| Valve Spring Included | Yes |
| Lifters Included | Yes |
| Retainers Included | Yes |
| Locks Included | Yes |
| Valve Stem Seals Included | Yes |
| Timing Chain and Gears Included | Yes |
| Assembly Lubricant Included | Yes |
| Pushrods Included | No |
| Rocker Arms Included | No |
| Gaskets Included | No |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
Be the first to ask a question.
Fitment
Fitment
1958 Pontiac Bonneville
370 Pontiac V8
1958 Pontiac Catalina
370 Pontiac V8
1958 Pontiac Chieftain
370 Pontiac V8
1958 Pontiac Star Chief
370 Pontiac V8
1958 Pontiac Super Chief
370 Pontiac V8
