COMP Cams K20-246-4 Magnum Solid Camshaft Kit, Mopar 273/360

#282K202464

COMP Cams K20-246-4 Magnum Solid Camshaft Kit, Mopar 273/360

Name: COMP Cams K20-246-4 Magnum Solid Camshaft Kit, Mopar 273/360
Brand: COMP Cams
SKU: 282K202464
Price: 757.95 USD
Availability: InStock

Write a Review

Ask a Question

$757.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Solid Flat Tappet Camshaft Type, 1800 to 5800 RPM Range

See more details

Key Specs

Camshaft Type	Solid Flat Tappet
Intake Duration (.050" Lift)	224
Exhaust Duration (.050" Lift)	224
RPM Range	1800 to 5800
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams K20-246-4 Details

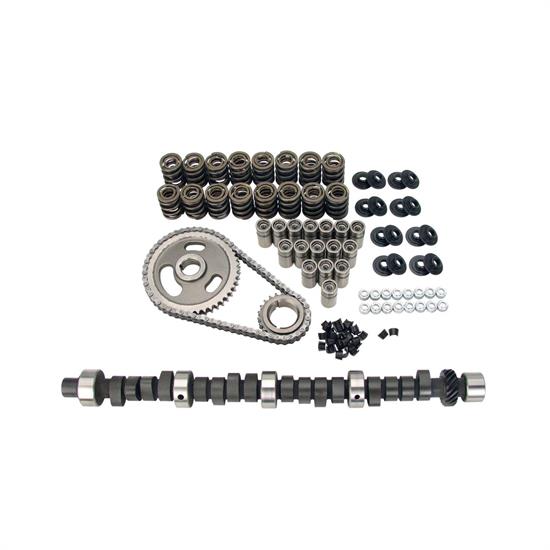

K20-246-4 - Camshaft Kit, CRS 270S.

Chrysler 273-360 C.I. 8 CYL. 1964-2000. Solid-Great in 340 & 360 with 9:1 to 9.5:1comp., 650 to 750 CFM carb. and 3.55 to 3.91 gear. Largest cam to use with stock converter. Magnum Mechanical Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Great high RPM power
Easy on valve train parts
Can be used with mild ratio rocker arms & traditional performance valve springs
Best with aftermarket converter & 9.5:1+ compression

Application

1971-89 Chrysler 318-360
1964-89 Plymouth 273-360
1964-91 Dodge 273-360

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

COMP Cams K20-246-4 Specifications

KEY SPECS
MFG. Part #	K20-246-4
Brand	COMP Cams
Camshaft Type	Solid Flat Tappet
Intake Duration (.050" Lift)	224
Exhaust Duration (.050" Lift)	224
RPM Range	1800 to 5800
Lobe Separation	110 °
Lifter Type	Mechanical/Solid Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.468"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.468"
Sold in Quantity	Kit
Intake Duration	270
Exhaust Duration	270
GTIN Code	036584460534
Grind Number	CRS 270S-10
Intake Valve Lash	0.022
Exhaust Valve Lash	0.022
External Ignition Box Required	No
Valve Springs Required	No
Valve Spring Included	Yes
Lifters Included	Yes
Retainers Included	Yes
Locks Included	Yes
Valve Stem Seals Included	Yes
Timing Chain and Gears Included	Yes
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No
