COMP Cams K11-602-4 Thumpr Hydraulic Camshaft Kit, Chevy B/B

#282K116024

COMP Cams K11-602-4 Thumpr Hydraulic Camshaft Kit, Chevy B/B

Name: COMP Cams K11-602-4 Thumpr Hydraulic Camshaft Kit, Chevy B/B
Brand: COMP Cams
SKU: 282K116024
Price: 744.95 USD
Availability: InStock

Write a Review

Ask a Question

$744.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	243
Exhaust Duration (.050" Lift)	257
RPM Range	2300 to 6200
Lobe Separation	107 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams K11-602-4 Details

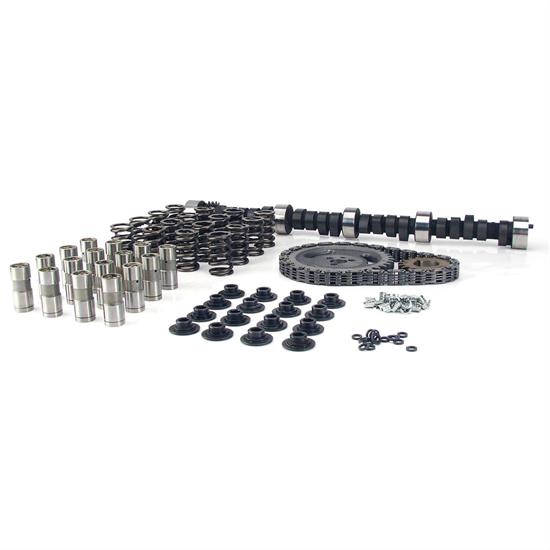

K11-602-4 - Camshaft Kit, CB 295T H-107 BM T THUMPR.

Complete kit. 3 grinds to fit all of your performance needs. Long exhaust duration. Produces a powerful hard-hitting exhaust note. Excellent horsepower gains and broad torque curve. Delivers real seat of the pants performance. Designed for use with the latest in valve train components.

Three unique cam designs for each application that deliver excellent horsepower gains & broad torque curve; perfect choice for muscle cars & street rods
Early intake valve opening & long exhaust duration create optimum overlap for powerful, hard-hitting exhaust note
Best with aftermarket converters & more rear gear

Application

1967-95 Chevy 396-454

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams K11-602-4 Specifications

KEY SPECS
MFG. Part #	K11-602-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	243
Exhaust Duration (.050" Lift)	257
RPM Range	2300 to 6200
Lobe Separation	107 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.522"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.507"
Sold in Quantity	Kit
Intake Duration	295
Exhaust Duration	312
GTIN Code	036584182269
Grind Number	295TH7
External Ignition Box Required	No
Valve Springs Required	No
Valve Spring Included	Yes
Lifters Included	Yes
Retainers Included	Yes
Locks Included	Yes
Valve Stem Seals Included	Yes
Timing Chain and Gears Included	Yes
Assembly Lubricant Included	Yes
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965 Chevy Bel Air

396 Chevy Big Block V8

1966-1969 Chevy Bel Air

396 Chevy Big Block V8
427 Chevy Big Block V8

1970-1972 Chevy Bel Air

402 Chevy Big Block V8
454 Chevy Big Block V8

1973-1975 Chevy Bel Air

454 Chevy Big Block V8

1965 Chevy Biscayne

396 Chevy Big Block V8

1966-1969 Chevy Biscayne

396 Chevy Big Block V8
427 Chevy Big Block V8

1970-1972 Chevy Biscayne

402 Chevy Big Block V8
454 Chevy Big Block V8

1969 Chevy Brookwood

396 Chevy Big Block V8
427 Chevy Big Block V8

1970-1972 Chevy Brookwood

402 Chevy Big Block V8
454 Chevy Big Block V8

1969 Chevy C10

396 Chevy Big Block V8

1970-1972 Chevy C10

402 Chevy Big Block V8

1973-1979 Chevy C10

454 Chevy Big Block V8

1968-1969 Chevy C10 Suburban

396 Chevy Big Block V8

1970-1972 Chevy C10 Suburban

402 Chevy Big Block V8

1973-1979 Chevy C10 Suburban

454 Chevy Big Block V8

1988 Chevy C15

454 Chevy Big Block V8

1990 Chevy C1500

454 Chevy Big Block V8

1991 Chevy C1500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Mark IV 454 LS5

1992-1993 Chevy C1500

454 Chevy Big Block V8

1968-1969 Chevy C20

396 Chevy Big Block V8

1970-1972 Chevy C20

402 Chevy Big Block V8

1973-1987 Chevy C20

454 Chevy Big Block V8

1968-1969 Chevy C20 Suburban

396 Chevy Big Block V8

1970-1972 Chevy C20 Suburban

402 Chevy Big Block V8

1973-1986 Chevy C20 Suburban

454 Chevy Big Block V8

1991 Chevy C2500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 Chevy C2500

454 Chevy Big Block V8

1996-1997 Chevy C2500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1992-1995 Chevy C2500 Suburban

454 Chevy Big Block V8

1996-1997 Chevy C2500 Suburban

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1968-1969 Chevy C30

396 Chevy Big Block V8

1970-1972 Chevy C30

402 Chevy Big Block V8

1973-1986 Chevy C30

454 Chevy Big Block V8

1988-1990 Chevy C3500

454 Chevy Big Block V8

1991 Chevy C3500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 Chevy C3500

454 Chevy Big Block V8

1996-1997 Chevy C3500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1967 Chevy Camaro

Chevy Big Block V8 Mark IV 396 L35
Chevy Big Block V8 Mark IV 396 L78

1968-1969 Chevy Camaro

Chevy Big Block V8 Mark IV 396 L34
Chevy Big Block V8 Mark IV 396 L35
Chevy Big Block V8 Mark IV 396 L78
427 Chevy Big Block V8

1970-1972 Chevy Camaro

402 Chevy Big Block V8

1966-1969 Chevy Caprice

396 Chevy Big Block V8
427 Chevy Big Block V8

1970-1972 Chevy Caprice

402 Chevy Big Block V8
454 Chevy Big Block V8

1973-1976 Chevy Caprice

454 Chevy Big Block V8

1965-1969 Chevy Chevelle

396 Chevy Big Block V8

1970-1972 Chevy Chevelle

402 Chevy Big Block V8
454 Chevy Big Block V8

1973 Chevy Chevelle

454 Chevy Big Block V8

1968 Chevy Chevy II

396 Chevy Big Block V8

1965 Chevy Corvette

396 Chevy Big Block V8

1966-1969 Chevy Corvette

427 Chevy Big Block V8

1970-1974 Chevy Corvette

454 Chevy Big Block V8

1966-1969 Chevy El Camino

396 Chevy Big Block V8

1970-1972 Chevy El Camino

402 Chevy Big Block V8
454 Chevy Big Block V8

1973-1975 Chevy El Camino

454 Chevy Big Block V8

1969 Chevy Estate

396 Chevy Big Block V8
427 Chevy Big Block V8

1970 Chevy Estate

402 Chevy Big Block V8
454 Chevy Big Block V8

1996-2000 Chevy Express 2500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1996-2000 Chevy Express 3500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1988-1990 Chevy G30

454 Chevy Big Block V8

1991 Chevy G30

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 Chevy G30

454 Chevy Big Block V8

1996 Chevy G30

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1965 Chevy Impala

396 Chevy Big Block V8

1966-1969 Chevy Impala

396 Chevy Big Block V8
427 Chevy Big Block V8

1970-1972 Chevy Impala

402 Chevy Big Block V8
454 Chevy Big Block V8

1973-1976 Chevy Impala

454 Chevy Big Block V8

1969 Chevy K10

396 Chevy Big Block V8

1970-1972 Chevy K10

402 Chevy Big Block V8

1973-1974 Chevy K10

454 Chevy Big Block V8

1968-1969 Chevy K10 Suburban

396 Chevy Big Block V8

1970-1972 Chevy K10 Suburban

402 Chevy Big Block V8

1973-1974 Chevy K10 Suburban

454 Chevy Big Block V8

1968-1969 Chevy K20

396 Chevy Big Block V8

1970-1972 Chevy K20

402 Chevy Big Block V8

1973-1974 Chevy K20

454 Chevy Big Block V8

1968-1969 Chevy K20 Suburban

396 Chevy Big Block V8

1970-1972 Chevy K20 Suburban

402 Chevy Big Block V8

1973-1974 Chevy K20 Suburban

454 Chevy Big Block V8

1985 Chevy K20 Suburban

454 Chevy Big Block V8

1991 Chevy K2500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 Chevy K2500

454 Chevy Big Block V8

1996-1997 Chevy K2500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1992-1995 Chevy K2500 Suburban

454 Chevy Big Block V8

1996-1997 Chevy K2500 Suburban

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1968-1969 Chevy K30

396 Chevy Big Block V8

1970-1972 Chevy K30

402 Chevy Big Block V8

1977-1986 Chevy K30

454 Chevy Big Block V8

1988-1990 Chevy K3500

454 Chevy Big Block V8

1991 Chevy K3500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 Chevy K3500

454 Chevy Big Block V8

1996-1997 Chevy K3500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1969 Chevy Kingswood

396 Chevy Big Block V8
427 Chevy Big Block V8

1970-1972 Chevy Kingswood

402 Chevy Big Block V8
454 Chevy Big Block V8

1973-1975 Chevy Laguna

454 Chevy Big Block V8

1965-1967 Chevy Malibu

396 Chevy Big Block V8

1973-1975 Chevy Malibu

454 Chevy Big Block V8

1970-1972 Chevy Monte Carlo

402 Chevy Big Block V8
454 Chevy Big Block V8

1973-1975 Chevy Monte Carlo

454 Chevy Big Block V8

1969 Chevy Nova

396 Chevy Big Block V8

1970 Chevy Nova

402 Chevy Big Block V8

1975-1990 Chevy P30

454 Chevy Big Block V8

1991 Chevy P30

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Mark IV 454 LS5

1992-1995 Chevy P30

454 Chevy Big Block V8

1996-1997 Chevy P30

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1972 Chevy P30 Van

402 Chevy Big Block V8

1973-1974 Chevy P30 Van

454 Chevy Big Block V8

1987-1988 Chevy R20

454 Chevy Big Block V8

1987-1988 Chevy R20 Suburban

454 Chevy Big Block V8

1989 Chevy R2500

454 Chevy Big Block V8

1989-1990 Chevy R2500 Suburban

454 Chevy Big Block V8

1991 Chevy R2500 Suburban

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1987-1988 Chevy R30

454 Chevy Big Block V8

1989-1990 Chevy R3500

454 Chevy Big Block V8

1991 Chevy R3500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1969 Chevy Townsman

396 Chevy Big Block V8
427 Chevy Big Block V8

1970-1972 Chevy Townsman

402 Chevy Big Block V8
454 Chevy Big Block V8

1987-1988 Chevy V20 Suburban

454 Chevy Big Block V8

1990 Chevy V2500 Suburban

454 Chevy Big Block V8

1987-1988 Chevy V30

454 Chevy Big Block V8

1989-1990 Chevy V3500

454 Chevy Big Block V8

1991 Chevy V3500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1975-1978 GMC C15

454 Chevy Big Block V8

1975-1978 GMC C15 Suburban

454 Chevy Big Block V8

1973-1974 GMC C15/C1500 Pickup

454 Chevy Big Block V8

1973-1974 GMC C15/C1500 Suburban

454 Chevy Big Block V8

1979 GMC C1500

454 Chevy Big Block V8

1979 GMC C1500 Suburban

454 Chevy Big Block V8

1975-1978 GMC C25

454 Chevy Big Block V8

1975-1978 GMC C25 Suburban

454 Chevy Big Block V8

1967-1970 GMC C25/C2500 Pickup

396 Chevy Big Block V8

1971-1972 GMC C25/C2500 Pickup

402 Chevy Big Block V8

1973-1974 GMC C25/C2500 Pickup

454 Chevy Big Block V8

1967-1970 GMC C25/C2500 Suburban

396 Chevy Big Block V8

1971-1972 GMC C25/C2500 Suburban

402 Chevy Big Block V8

1973-1974 GMC C25/C2500 Suburban

454 Chevy Big Block V8

1979-1986 GMC C2500

454 Chevy Big Block V8

1988-1990 GMC C2500

454 Chevy Big Block V8

1991 GMC C2500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 GMC C2500

454 Chevy Big Block V8

1996-2000 GMC C2500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1979-1986 GMC C2500 Suburban

454 Chevy Big Block V8

1992-1995 GMC C2500 Suburban

454 Chevy Big Block V8

1996-1999 GMC C2500 Suburban

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1975-1978 GMC C35

454 Chevy Big Block V8

1967-1970 GMC C35/C3500 Pickup

396 Chevy Big Block V8

1971-1972 GMC C35/C3500 Pickup

402 Chevy Big Block V8

1979-1986 GMC C3500

454 Chevy Big Block V8

1988-1990 GMC C3500

454 Chevy Big Block V8

1991 GMC C3500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 GMC C3500

454 Chevy Big Block V8

1996-2000 GMC C3500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1967-1970 GMC K25/K2500 Pickup

396 Chevy Big Block V8

1971-1972 GMC K25/K2500 Pickup

402 Chevy Big Block V8

1967-1970 GMC K25/K2500 Suburban

396 Chevy Big Block V8

1971-1972 GMC K25/K2500 Suburban

402 Chevy Big Block V8

1994-1999 GMC K2500 Suburban

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1977-1978 GMC K35

454 Chevy Big Block V8

1967-1970 GMC K35/K3500 Pickup

396 Chevy Big Block V8

1971-1972 GMC K35/K3500 Pickup

402 Chevy Big Block V8

1979-1986 GMC K3500

454 Chevy Big Block V8

1988-1990 GMC K3500

454 Chevy Big Block V8

1991 GMC K3500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1992-1995 GMC K3500

454 Chevy Big Block V8

1996-2000 GMC K3500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1987-1989 GMC R2500

454 Chevy Big Block V8

1987-1990 GMC R2500 Suburban

454 Chevy Big Block V8

1991 GMC R2500 Suburban

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1987-1990 GMC R3500

454 Chevy Big Block V8

1991 GMC R3500

Chevy Big Block V8 Mark IV 454 L19
Chevy Big Block V8 Gen 5 454 L19

1996-2000 GMC Savana 2500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1996-2000 GMC Savana 3500

Chevy Big Block V8 Gen 5 454 L19
Chevy Big Block V8 Gen 6 ZZ454 454

1971-1972 GMC Sprint

402 Chevy Big Block V8
454 Chevy Big Block V8

1973-1977 GMC Sprint

454 Chevy Big Block V8

1967 GMC Suburban

396 Chevy Big Block V8
402 Chevy Big Block V8
