#282K112463

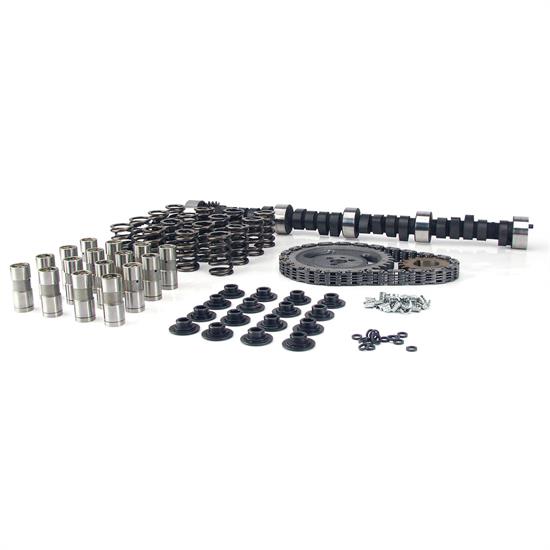

COMP Cams K11-246-3 Xtreme Energy Hydraulic Camshaft Kit, Chevy B/B
$612.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 10th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
396, 402, 427, 454, Hydraulic Flat Tappet Camshaft Type
See more details
Key Specs
Camshaft Type | Hydraulic Flat Tappet |
Intake Duration (.050" Lift) | 230 |
Exhaust Duration (.050" Lift) | 236 |
RPM Range | 1800 to 6000 |
Lobe Separation | 110 ° |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams K11-246-3 Details
COMP Cams K11-246-3 Details
Chevrolet 396-454 c.i. 8 CYL. 1965-1996. Hydraulic-High performance street, very strong mid-range, with headers & 2500+ stall. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
- More vacuum allows an increase in duration for improved performance & assists power brakes
- Excellent performance in street carbureted applications
- Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Application
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams K11-246-3 Specifications
COMP Cams K11-246-3 Specifications
KEY SPECS | |
---|---|
MFG. Part # | K11-246-3 |
Brand | COMP Cams |
Camshaft Type | Hydraulic Flat Tappet |
Intake Duration (.050" Lift) | 230 |
Exhaust Duration (.050" Lift) | 236 |
RPM Range | 1800 to 6000 |
Lobe Separation | 110 ° |
Lifter Type | Hydraulic Flat Tappet |
GENERAL | |
Intake Valve Lift w/ Rocker Arm Ratio | 0.552" |
Exhaust Valve Lift w/ Rocker Arm Ratio | 0.555" |
Sold in Quantity | Kit |
Intake Duration | 274 |
Exhaust Duration | 286 |
GTIN Code | 036584025399 |
Grind Number | CB XE274H-10 |
External Ignition Box Required | No |
Valve Springs Required | No |
Valve Spring Included | Yes |
Lifters Included | Yes |
Retainers Included | Yes |
Locks Included | Yes |
Valve Stem Seals Included | Yes |
Timing Chain and Gears Included | Yes |
Assembly Lubricant Included | Yes |
Pushrods Included | |
Rocker Arms Included | No |
Gaskets Included | No |
