COMP Cams CL33-230-4 Magnum Hydraulic Camshaft Kit, Ford 352/428

#282CL332304

COMP Cams CL33-230-4 Magnum Hydraulic Camshaft Kit, Ford 352/428

Name: COMP Cams CL33-230-4 Magnum Hydraulic Camshaft Kit, Ford 352/428
Brand: COMP Cams
SKU: 282CL332304
Price: 397.95 USD
Availability: InStock

Write a Review

Ask a Question

$397.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	230
RPM Range	2000 to 6000
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams CL33-230-4 Details

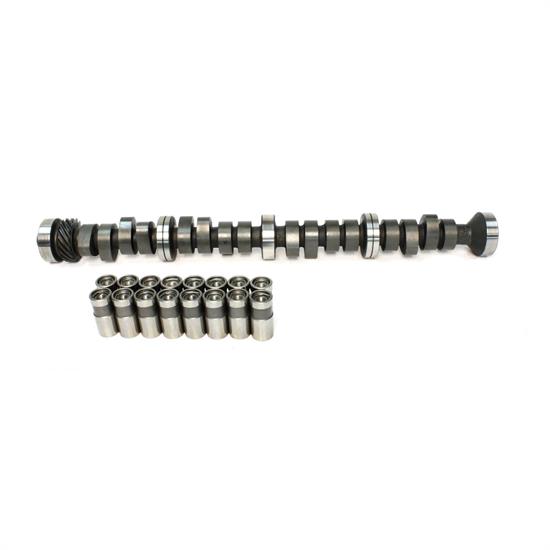

CL33-230-4 - Cam and Lifter Kit, FB 280H.

Ford 352-428 c.i. 8 CYL. 1963-1976. Hydraulic-Works best in Street Machines with aftermarket stall, lower gears and headers. Rough idle. Magnum Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Great high RPM power
Easy on valve train parts
Can be used with mild ratio rocker arms & traditional performance valve springs
Best with aftermarket converter & 9.5:1+ compression

Application

1963-76 Ford 352-428

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams CL33-230-4 Specifications

KEY SPECS
MFG. Part #	CL33-230-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	230
RPM Range	2000 to 6000
Lobe Separation	110 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.53"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.53"
Sold in Quantity	Kit
Intake Duration	280
Exhaust Duration	280
GTIN Code	036584450894
Grind Number	FB 280H-10
External Ignition Box Required	No
Valve Springs Required	Yes
Valve Spring Included	No
Lifters Included	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	No
Assembly Lubricant Included	Yes
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1964 AC 427

427 Ford FE V8

1965-1967 AC 427

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1967-1973 AC 428

428 Ford FE V8

1965-1967 AC Shelby Cobra

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1988-1989 DeTomaso Pantera

Ford 351W

1959 Edsel Corsair

332 Ford FE V8

1959 Edsel Ranger

332 Ford FE V8

1959 Edsel Villager

332 Ford FE V8

1963 Ford 300

427 Ford FE V8

1978-1996 Ford Bronco

Ford 351W

1955-1957 Ford Club

Ford 292 Y-Block

1958-1959 Ford Club

332 Ford FE V8
Ford 292 Y-Block

1962 Ford Club Wagon

Ford 292 Y-Block

1963 Ford Club Wagon

427 Ford FE V8

1964 Ford Club Wagon

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Ford Club Wagon

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Ford Club Wagon

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1955-1957 Ford Country Sedan

Ford 292 Y-Block

1958-1959 Ford Country Sedan

332 Ford FE V8
Ford 292 Y-Block

1960-1962 Ford Country Sedan

Ford 292 Y-Block

1963 Ford Country Sedan

427 Ford FE V8

1964 Ford Country Sedan

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Ford Country Sedan

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Ford Country Sedan

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Ford Country Sedan

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Country Sedan

428 Ford FE V8
Ford 351W

1970-1974 Ford Country Sedan

Ford 351W

1955-1957 Ford Country Squire

Ford 292 Y-Block

1958-1959 Ford Country Squire

332 Ford FE V8
Ford 292 Y-Block

1960-1962 Ford Country Squire

Ford 292 Y-Block

1963 Ford Country Squire

427 Ford FE V8

1964 Ford Country Squire

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Ford Country Squire

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Ford Country Squire

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Ford Country Squire

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Country Squire

428 Ford FE V8
Ford 351W

1970-1974 Ford Country Squire

Ford 351W

1957-1960 Ford Courier Sedan Delivery

Ford 292 Y-Block

1957 Ford Custom

Ford 292 Y-Block

1964 Ford Custom

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Ford Custom

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Ford Custom

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Ford Custom

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Custom

428 Ford FE V8
Ford 351W

1970-1972 Ford Custom

Ford 351W

1957 Ford Custom 300

Ford 292 Y-Block

1958-1959 Ford Custom 300

332 Ford FE V8
Ford 292 Y-Block

1960 Ford Custom 300

Ford 292 Y-Block

1965 Ford Custom 500

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966 Ford Custom 500

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1967 Ford Custom 500

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1968 Ford Custom 500

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Custom 500

428 Ford FE V8
Ford 351W

1970-1977 Ford Custom 500

Ford 351W

1955-1956 Ford Customline

Ford 292 Y-Block

1957 Ford Del Rio Wagon

Ford 292 Y-Block

1958 Ford Del Rio Wagon

332 Ford FE V8
Ford 292 Y-Block

1975-1983 Ford E-100 Econoline

Ford 351W

1975-1983 Ford E-100 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-150 Econoline

Ford 351W

1975-1996 Ford E-150 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-250 Econoline

Ford 351W

1975-1991 Ford E-250 Econoline Club Wagon

Ford 351W

1975-1996 Ford E-350 Econoline

Ford 351W

1977-1996 Ford E-350 Econoline Club Wagon

Ford 351W

1996 Ford Econoline Super Duty

Ford 351W

1975-1976 Ford Elite

Ford 351W

1957-1964 Ford F-100

Ford 292 Y-Block

1978-1979 Ford F-100

Ford 351W

1981 Ford F-100

Ford 351W

1978-1996 Ford F-150

Ford 351W

1957-1964 Ford F-250

Ford 292 Y-Block

1978-1997 Ford F-250

Ford 351W

1957-1964 Ford F-350

Ford 292 Y-Block

1978-1997 Ford F-350

Ford 351W

1955-1957 Ford Fairlane

Ford 292 Y-Block

1958-1959 Ford Fairlane

332 Ford FE V8
Ford 292 Y-Block

1960-1962 Ford Fairlane

Ford 292 Y-Block

1964 Ford Fairlane

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965-1967 Ford Fairlane

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1968 Ford Fairlane

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Fairlane

428 Ford FE V8
Ford 351W

1970 Ford Fairlane

Ford 351W

1969-1970 Ford Falcon

Ford 351W

1963 Ford Ford 300

427 Ford FE V8

1959 Ford Galaxie

332 Ford FE V8
Ford 292 Y-Block

1960-1962 Ford Galaxie

Ford 292 Y-Block

1963 Ford Galaxie

427 Ford FE V8

1964 Ford Galaxie

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Ford Galaxie

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Ford Galaxie

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1962 Ford Galaxie 500

Ford 292 Y-Block

1965-1967 Ford Galaxie 500

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1968 Ford Galaxie 500

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Galaxie 500

428 Ford FE V8
Ford 351W

1970-1974 Ford Galaxie 500

Ford 351W

1972-1976 Ford Gran Torino

Ford 351W

1975-1977 Ford Granada

Ford 351W

1964 Ford GT40

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965-1967 Ford GT40

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1968-1969 Ford GT40

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1965-1967 Ford LTD

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Ford LTD

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford LTD

428 Ford FE V8
Ford 351W

1970-1986 Ford LTD

Ford 351W

1987-1991 Ford LTD Crown Victoria

Ford 351W

1977-1979 Ford LTD II

Ford 351W

1955-1956 Ford Mainline

Ford 292 Y-Block

1967 Ford Mustang

428 Ford FE V8

1968 Ford Mustang

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969-1970 Ford Mustang

428 Ford FE V8
Ford 351W

1971-1973 Ford Mustang

Ford 351W

1995 Ford Mustang

Ford 351W

1956 Ford Park Lane Wagon

Ford 292 Y-Block

1955-1957 Ford Ranch Wagon

Ford 292 Y-Block

1958-1959 Ford Ranch Wagon

332 Ford FE V8
Ford 292 Y-Block

1960-1962 Ford Ranch Wagon

Ford 292 Y-Block

1963 Ford Ranch Wagon

427 Ford FE V8

1964 Ford Ranch Wagon

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Ford Ranch Wagon

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Ford Ranch Wagon

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Ford Ranch Wagon

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Ranch Wagon

428 Ford FE V8
Ford 351W

1970-1974 Ford Ranch Wagon

Ford 351W

1957-1959 Ford Ranchero

Ford 292 Y-Block

1968 Ford Ranchero

428 Ford FE V8

1969 Ford Ranchero

428 Ford FE V8
Ford 351W

1970-1979 Ford Ranchero

Ford 351W

1955-1957 Ford Skyliner

Ford 292 Y-Block

1958-1959 Ford Skyliner

332 Ford FE V8
Ford 292 Y-Block

1960 Ford Starliner

Ford 292 Y-Block

1955-1957 Ford Sunliner

Ford 292 Y-Block

1958-1959 Ford Sunliner

332 Ford FE V8
Ford 292 Y-Block

1960 Ford Sunliner

Ford 292 Y-Block

1955-1957 Ford Thunderbird

Ford 292 Y-Block

1958 Ford Thunderbird

332 Ford FE V8
Ford 292 Y-Block

1959 Ford Thunderbird

332 Ford FE V8
Ford MEL 430

1960 Ford Thunderbird

Ford MEL 430

1963 Ford Thunderbird

427 Ford FE V8

1964 Ford Thunderbird

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Ford Thunderbird

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Ford Thunderbird

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Thunderbird

428 Ford FE V8

1977-1979 Ford Thunderbird

Ford 351W

1968 Ford Torino

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Ford Torino

428 Ford FE V8
Ford 351W

1970-1976 Ford Torino

Ford 351W

1955-1957 Ford Victoria

Ford 292 Y-Block

1958-1959 Ford Victoria

332 Ford FE V8
Ford 292 Y-Block

1960 Ford Victoria

Ford 292 Y-Block

1958-1959 Lincoln Capri

Ford MEL 430

1958-1965 Lincoln Continental

Ford MEL 430

1960 Lincoln Lincoln Series

Ford MEL 430

1958-1960 Lincoln Premier

Ford MEL 430

1967 Mercury Brougham

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1964 Mercury Caliente

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965-1967 Mercury Caliente

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Mercury Capri

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1958-1960 Mercury Colony Park

Ford MEL 430

1961-1962 Mercury Colony Park

Ford 292 Y-Block

1963 Mercury Colony Park

427 Ford FE V8

1964 Mercury Colony Park

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Mercury Colony Park

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Mercury Colony Park

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968-1969 Mercury Colony Park

428 Ford FE V8

1964 Mercury Comet

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965-1967 Mercury Comet

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1968 Mercury Comet

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Mercury Comet

428 Ford FE V8

1958-1960 Mercury Commuter

Ford MEL 430

1961-1962 Mercury Commuter

Ford 292 Y-Block

1963 Mercury Commuter

427 Ford FE V8

1964 Mercury Commuter

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Mercury Commuter

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Mercury Commuter

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Mercury Commuter

428 Ford FE V8

1968 Mercury Cougar

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969-1970 Mercury Cougar

428 Ford FE V8

1959-1960 Mercury Country Cruiser

Ford MEL 430

1955 Mercury Custom

Ford 292 Y-Block

1964 Mercury Cyclone

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965-1967 Mercury Cyclone

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1968 Mercury Cyclone

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Mercury Cyclone

428 Ford FE V8

1963 Mercury Marauder

427 Ford FE V8

1964 Mercury Marauder

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Mercury Marauder

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Mercury Marauder

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968-1969 Mercury Marauder

428 Ford FE V8

1967 Mercury Marquis

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968-1969 Mercury Marquis

428 Ford FE V8

1958 Mercury Medalist

Ford MEL 430

1955 Mercury Montclair

Ford 292 Y-Block

1958-1960 Mercury Montclair

Ford MEL 430

1964 Mercury Montclair

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Mercury Montclair

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Mercury Montclair

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Mercury Montclair

428 Ford FE V8

1968 Mercury Montego

Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1969 Mercury Montego

428 Ford FE V8

1955 Mercury Monterey

Ford 292 Y-Block

1958-1960 Mercury Monterey

Ford MEL 430

1961-1962 Mercury Monterey

Ford 292 Y-Block

1963 Mercury Monterey

427 Ford FE V8

1964 Mercury Monterey

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Mercury Monterey

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Mercury Monterey

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968-1970 Mercury Monterey

428 Ford FE V8

1958-1960 Mercury Park Lane

Ford MEL 430

1964 Mercury Park Lane

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Mercury Park Lane

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Mercury Park Lane

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Mercury Park Lane

428 Ford FE V8

1964 Mercury Villager

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965-1967 Mercury Villager

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1958-1959 Mercury Voyager

Ford MEL 430

1966-1967 Mercury Voyager

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1964 Shelby Cobra

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Top Oiler

1965 Shelby Cobra

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler

1966-1967 Shelby Cobra

Ford FE V8 SOHC Cammer 427
Ford FE V8 Gen 2 427 Side Oiler
Ford FE V8 Gen 2 427 Top Oiler
428 Ford FE V8

1968 Shelby Cobra

428 Ford FE V8
