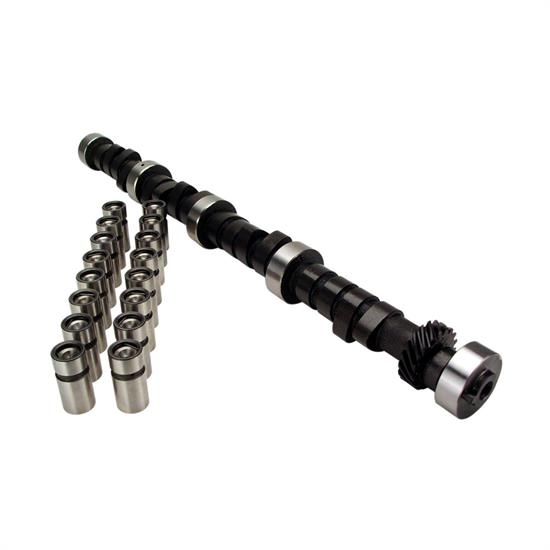

COMP Cams CL21-224-4 Xtreme Energy Hydraulic Camshaft Kit, Mopar B/B

#282CL212244

COMP Cams CL21-224-4 Xtreme Energy Hydraulic Camshaft Kit, Mopar B/B

Name: COMP Cams CL21-224-4 Xtreme Energy Hydraulic Camshaft Kit, Mopar B/B
Brand: COMP Cams
SKU: 282CL212244
Price: 397.95 USD
Availability: InStock

Write a Review

Ask a Question

Duration:

274/286 (Base Kit)

268/280 (Standard Kit)268/280 (Base Kit)284/296 (Base Kit)294/306 (Base Kit)294/306 (Deluxe Kit)

$397.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
RPM Range	1800 to 6000
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams CL21-224-4 Details

COMP Cams Xtreme Energy XE274H-10 Cam and Lifter Kit for Big Block Chrysler.

BIG BLOCK CHRYSLER Hydraulic CAM AND LIFTER KIT - Xtreme Energy: High performance street. Very strong mid-range, headers, 2200+ stall.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1959-78 Chrysler 383-440
1960-78 Plymouth 383-440
1959-79 Dodge 383-440

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

CARB warning

COMP Cams CL21-224-4 Specifications

KEY SPECS
MFG. Part #	CL21-224-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
RPM Range	1800 to 6000
Lobe Separation	110 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.488"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.491"
Sold in Quantity	Kit
Intake Duration	274
Exhaust Duration	286
GTIN Code	036584046691
Grind Number	CRB XE274H-10
External Ignition Box Required	No
Valve Springs Required	Yes
Valve Spring Included	No
Lifters Included	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	No
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1962-1965 Chrysler 300

383 B Engine

1965-1971 Chrysler Newport

383 B Engine

1959-1960 Chrysler Saratoga

383 B Engine
383 RB Engine

1959-1960 Chrysler Town & Country

383 B Engine
383 RB Engine

1961-1971 Chrysler Town & Country

383 B Engine

1959-1960 Chrysler Windsor

383 B Engine
383 RB Engine

1961 Chrysler Windsor

383 B Engine

1963-1964 Dodge 330

383 B Engine

1963-1964 Dodge 440

383 B Engine

1970-1971 Dodge Challenger

383 B Engine

1967-1971 Dodge Charger

383 B Engine

1965-1971 Dodge Coronet

383 B Engine

1965-1967 Dodge D100 Series

383 B Engine

1965-1967 Dodge D200 Series

383 B Engine

1965-1967 Dodge D300 Series

383 B Engine

1967-1971 Dodge Dart

383 B Engine

1965-1971 Dodge Monaco

383 B Engine

1965-1971 Dodge Polara

383 B Engine

1967-1971 Plymouth Barracuda

383 B Engine

1962-1970 Plymouth Belvedere

383 B Engine

1962-1971 Plymouth Fury

383 B Engine

1968-1969 Plymouth GTX

383 B Engine

1968-1971 Plymouth Roadrunner

383 B Engine

1960 Plymouth Savoy

383 B Engine
383 RB Engine

1961-1964 Plymouth Savoy

383 B Engine
