#282CL202474
COMP Cams CL20-247-4 Magnum Solid Camshaft Kit, Mopar S/B
$499.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Key Specs
| Camshaft Type | Solid Flat Tappet |
| Intake Duration (.050" Lift) | 236 |
| Exhaust Duration (.050" Lift) | 236 |
| RPM Range | 2500 to 6000 |
| Lobe Separation | 110 ° |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams CL20-247-4 Details
COMP Cams CL20-247-4 Details

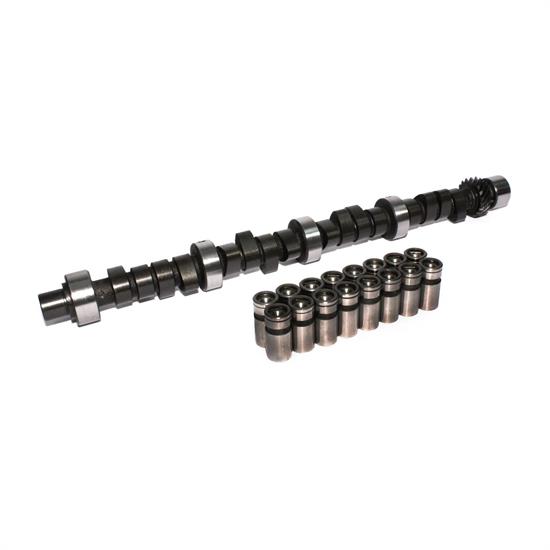

CL20-247-4 - Cam and Lifter Kit, CRS 282S.
Chrysler 273-360 C.I. 8 CYL. 1964-2000. Solid-340-360 Street Machine / Bracket Race with 2500 stall, 9.5:1 to 10.5:1 comp. & 3.91 to 4.10 gear. Aftermarket manifold & 650 to 750 CFM carb. Magnum Mechanical Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Great high RPM power
- Easy on valve train parts
- Can be used with mild ratio rocker arms & traditional performance valve springs
- Best with aftermarket converter & 9.5:1+ compression
Application
1971-86 Chrysler 318-360
1964-86 Dodge 273-360
1964-86 Plymouth 273-360
1964-86 Dodge 273-360
1964-86 Plymouth 273-360
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
COMP Cams CL20-247-4 Specifications
COMP Cams CL20-247-4 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | CL20-247-4 |
| Brand | COMP Cams |
| Camshaft Type | Solid Flat Tappet |
| Intake Duration (.050" Lift) | 236 |
| Exhaust Duration (.050" Lift) | 236 |
| RPM Range | 2500 to 6000 |
| Lobe Separation | 110 ° |
| Lifter Type | Mechanical/Solid Flat Tappet |
| GENERAL | |
| Intake Valve Lift w/ Rocker Arm Ratio | 0.495" |
| Exhaust Valve Lift w/ Rocker Arm Ratio | 0.495" |
| Sold in Quantity | Kit |
| Intake Duration | 282 |
| Exhaust Duration | 282 |
| GTIN Code | 036584450481 |
| Grind Number | 282S |
| Intake Valve Lash | 0.022 |
| Exhaust Valve Lash | 0.022 |
| External Ignition Box Required | No |
| Valve Springs Required | Yes |
| Valve Spring Included | No |
| Lifters Included | Yes |
| Retainers Included | No |
| Locks Included | No |
| Valve Stem Seals Included | No |
| Timing Chain and Gears Included | No |
| Assembly Lubricant Included | Yes |
| Pushrods Included | No |
| Rocker Arms Included | No |
| Gaskets Included | No |
