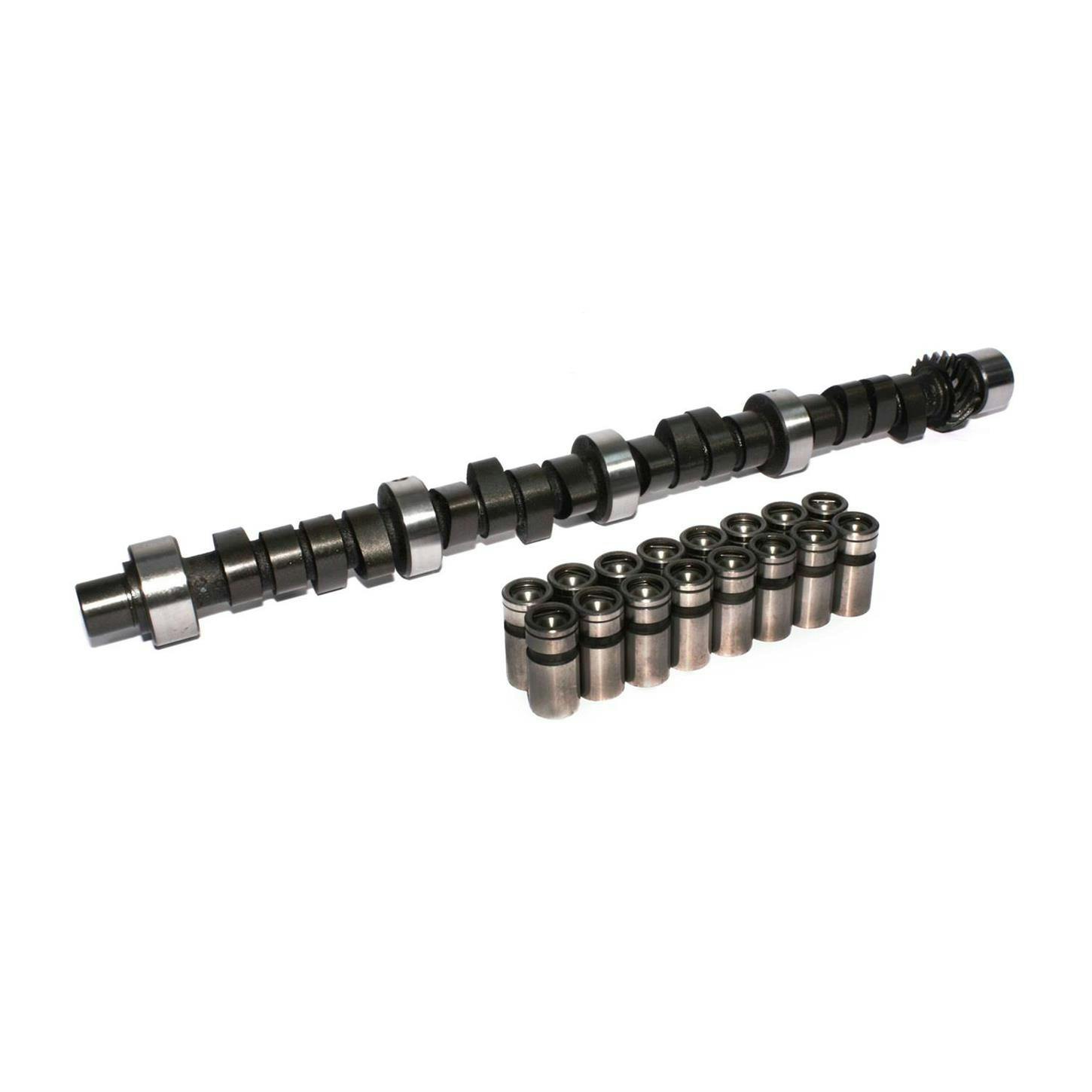

COMP Cams CL20-225-4 Xtreme Energy Hydraulic Camshaft Kit, Mopar S/B

#282CL202254

COMP Cams CL20-225-4 Xtreme Energy Hydraulic Camshaft Kit, Mopar S/B

Name: COMP Cams CL20-225-4 Xtreme Energy Hydraulic Camshaft Kit, Mopar S/B
Brand: COMP Cams
SKU: 282CL202254
Price: 416.95 USD
Availability: InStock

Write a Review

Ask a Question

$416.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type, Lifters Included

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	240
Exhaust Duration (.050" Lift)	246
RPM Range	2300 to 6500
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams CL20-225-4 Details

CL20-225-4 - Cam and Lifter Kit, CRS XE284H-10.

Chrysler 273-360 C.I. 8 CYL. 1964-2000. Hydraulic-Street / Strip, needs3000+ stall, headers, gears, rough idle. Xtreme Energy Hydraulic Flat Tappet Camshafts. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1971-86 Chrysler 318-360
1964-86 Dodge 273-360
1964-86 Plymouth 273-360

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams CL20-225-4 Specifications

KEY SPECS
MFG. Part #	CL20-225-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
Intake Duration (.050" Lift)	240
Exhaust Duration (.050" Lift)	246
RPM Range	2300 to 6500
Lobe Separation	110 °
Lifter Type	Hydraulic Flat Tappet

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.507"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.51"
Sold in Quantity	Kit
Intake Duration	284
Exhaust Duration	296
GTIN Code	036584047018
Grind Number	XE284H
External Ignition Box Required	No
Valve Springs Required	Yes
Valve Spring Included	No
Lifters Included	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	No
Assembly Lubricant Included	Yes
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Fitment

1975-1980 Chrysler Cordoba

318 LA Engine Mopar
360 Mopar

1981-1983 Chrysler Cordoba

318 LA Engine Mopar

1983-1989 Chrysler Fifth Avenue

318 LA Engine Mopar

1981-1983 Chrysler Imperial

318 LA Engine Mopar

1977 Chrysler LeBaron

318 LA Engine Mopar

1978-1979 Chrysler LeBaron

318 LA Engine Mopar
360 Mopar

1980-1981 Chrysler LeBaron

318 LA Engine Mopar

1977-1978 Chrysler New Yorker

360 Mopar

1979-1980 Chrysler New Yorker

318 LA Engine Mopar
360 Mopar

1981-1982 Chrysler New Yorker

318 LA Engine Mopar

1971-1978 Chrysler Newport

360 Mopar

1979-1980 Chrysler Newport

318 LA Engine Mopar
360 Mopar

1981 Chrysler Newport

318 LA Engine Mopar

1978-1979 Chrysler Town & Country

318 LA Engine Mopar
360 Mopar

1981 Chrysler Town & Country

318 LA Engine Mopar

1970 Dodge A100

318 LA Engine Mopar

1967-1970 Dodge A100 Pickup

318 LA Engine Mopar

1968-1970 Dodge A100 Truck

318 LA Engine Mopar

1976-1980 Dodge Aspen

318 LA Engine Mopar
360 Mopar

1975 Dodge B100

318 LA Engine Mopar

1976-1978 Dodge B100

318 LA Engine Mopar
360 Mopar

1979-1980 Dodge B100

318 LA Engine Mopar

1971-1974 Dodge B100 Van

318 LA Engine Mopar
360 Mopar

1981-1991 Dodge B150

318 LA Engine Mopar

1975-1980 Dodge B200

318 LA Engine Mopar
360 Mopar

1971-1974 Dodge B200 Van

318 LA Engine Mopar
360 Mopar

1981 Dodge B250

318 LA Engine Mopar
360 Mopar

1982-1983 Dodge B250

318 LA Engine Mopar

1984-1991 Dodge B250

318 LA Engine Mopar
360 Mopar

1992-1994 Dodge B250

360 Mopar

1975-1980 Dodge B300

318 LA Engine Mopar
360 Mopar

1971-1974 Dodge B300 Van

318 LA Engine Mopar
360 Mopar

1981-1991 Dodge B350

318 LA Engine Mopar
360 Mopar

1992-1994 Dodge B350

360 Mopar

1973-1980 Dodge CB300

318 LA Engine Mopar
360 Mopar

1970 Dodge Challenger

318 LA Engine Mopar
340 Mopar

1971-1973 Dodge Challenger

318 LA Engine Mopar
340 Mopar
360 Mopar

1974 Dodge Challenger

318 LA Engine Mopar
360 Mopar

1968-1969 Dodge Charger

318 LA Engine Mopar

1970 Dodge Charger

318 LA Engine Mopar
340 Mopar

1971-1973 Dodge Charger

318 LA Engine Mopar
340 Mopar
360 Mopar

1974-1978 Dodge Charger

318 LA Engine Mopar
360 Mopar

1968-1969 Dodge Coronet

318 LA Engine Mopar

1970 Dodge Coronet

318 LA Engine Mopar
340 Mopar

1971-1973 Dodge Coronet

318 LA Engine Mopar
340 Mopar
360 Mopar

1974-1976 Dodge Coronet

318 LA Engine Mopar
360 Mopar

1975-1979 Dodge D100

318 LA Engine Mopar
360 Mopar

1986-1988 Dodge D100

318 LA Engine Mopar
360 Mopar

1989 Dodge D100

318 LA Engine Mopar

1968-1970 Dodge D100 Pickup

318 LA Engine Mopar

1971-1974 Dodge D100 Pickup

318 LA Engine Mopar
360 Mopar

1977-1982 Dodge D150

318 LA Engine Mopar
360 Mopar

1983 Dodge D150

318 LA Engine Mopar

1984-1991 Dodge D150

318 LA Engine Mopar
360 Mopar

1993 Dodge D150

360 Mopar

1975-1980 Dodge D200

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge D200 Pickup

318 LA Engine Mopar

1971-1974 Dodge D200 Pickup

318 LA Engine Mopar
360 Mopar

1981-1982 Dodge D250

318 LA Engine Mopar
360 Mopar

1983 Dodge D250

318 LA Engine Mopar

1984-1991 Dodge D250

318 LA Engine Mopar
360 Mopar

1992-1993 Dodge D250

360 Mopar

1975-1980 Dodge D300

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge D300 Pickup

318 LA Engine Mopar

1971-1974 Dodge D300 Pickup

318 LA Engine Mopar
360 Mopar

1981-1983 Dodge D350

318 LA Engine Mopar
360 Mopar

1984-1993 Dodge D350

360 Mopar

1989-1991 Dodge Dakota

318 LA Engine Mopar

1968-1970 Dodge Dart

318 LA Engine Mopar
340 Mopar

1971-1973 Dodge Dart

318 LA Engine Mopar
340 Mopar
360 Mopar

1974-1976 Dodge Dart

318 LA Engine Mopar
360 Mopar

1977 Dodge Diplomat

318 LA Engine Mopar

1978-1979 Dodge Diplomat

318 LA Engine Mopar
360 Mopar

1980-1989 Dodge Diplomat

318 LA Engine Mopar

1968-1974 Dodge M300

318 LA Engine Mopar

1978-1979 Dodge Magnum

318 LA Engine Mopar
360 Mopar

1970-1974 Dodge MB300

318 LA Engine Mopar

1980 Dodge Mirada

318 LA Engine Mopar
360 Mopar

1981-1983 Dodge Mirada

318 LA Engine Mopar

1968-1970 Dodge Monaco

318 LA Engine Mopar

1971-1978 Dodge Monaco

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge Polara

318 LA Engine Mopar

1971 Dodge Polara

318 LA Engine Mopar
360 Mopar

1972-1973 Dodge Polara

318 LA Engine Mopar
340 Mopar
360 Mopar

1974-1981 Dodge Ramcharger

318 LA Engine Mopar
360 Mopar

1982-1983 Dodge Ramcharger

318 LA Engine Mopar

1984-1991 Dodge Ramcharger

318 LA Engine Mopar
360 Mopar

1992-1993 Dodge Ramcharger

360 Mopar

1978-1980 Dodge RD200

318 LA Engine Mopar
360 Mopar

1975 Dodge Royal Monaco

318 LA Engine Mopar
360 Mopar

1976 Dodge Royal Monaco

360 Mopar

1977 Dodge Royal Monaco

318 LA Engine Mopar
360 Mopar

1979-1980 Dodge St. Regis

318 LA Engine Mopar
360 Mopar

1981 Dodge St. Regis

318 LA Engine Mopar

1975-1977 Dodge W100

318 LA Engine Mopar
360 Mopar

1984-1988 Dodge W100

318 LA Engine Mopar
360 Mopar

1989 Dodge W100

318 LA Engine Mopar

1968-1971 Dodge W100 Pickup

318 LA Engine Mopar

1972-1974 Dodge W100 Pickup

318 LA Engine Mopar
360 Mopar

1967 Dodge W100 Series

318 LA Engine Mopar

1977-1981 Dodge W150

318 LA Engine Mopar
360 Mopar

1982-1983 Dodge W150

318 LA Engine Mopar

1984-1991 Dodge W150

318 LA Engine Mopar
360 Mopar

1993 Dodge W150

360 Mopar

1975-1980 Dodge W200

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge W200 Pickup

318 LA Engine Mopar

1971-1974 Dodge W200 Pickup

318 LA Engine Mopar
360 Mopar

1967 Dodge W200 Series

318 LA Engine Mopar

1981-1982 Dodge W250

318 LA Engine Mopar
360 Mopar

1983 Dodge W250

318 LA Engine Mopar

1984-1991 Dodge W250

318 LA Engine Mopar
360 Mopar

1992-1993 Dodge W250

360 Mopar

1975-1978 Dodge W300

318 LA Engine Mopar
360 Mopar

1979 Dodge W300

360 Mopar

1980 Dodge W300

318 LA Engine Mopar
360 Mopar

1968-1970 Dodge W300 Pickup

318 LA Engine Mopar

1971-1974 Dodge W300 Pickup

318 LA Engine Mopar
360 Mopar

1967 Dodge W300 Series

318 LA Engine Mopar

1981 Dodge W350

360 Mopar

1982-1983 Dodge W350

318 LA Engine Mopar
360 Mopar

1984-1993 Dodge W350

360 Mopar

1968-1970 Plymouth Barracuda

318 LA Engine Mopar
340 Mopar

1971-1973 Plymouth Barracuda

318 LA Engine Mopar
340 Mopar
360 Mopar

1974 Plymouth Barracuda

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Belvedere

318 LA Engine Mopar

1971 Plymouth Belvedere

340 Mopar

1970 Plymouth Cuda

318 LA Engine Mopar
340 Mopar

1971-1973 Plymouth Cuda

318 LA Engine Mopar
340 Mopar
360 Mopar

1974 Plymouth Cuda

318 LA Engine Mopar
360 Mopar

1970-1973 Plymouth Duster

318 LA Engine Mopar
340 Mopar

1974-1976 Plymouth Duster

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Fury

318 LA Engine Mopar

1971-1978 Plymouth Fury

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Fury I

318 LA Engine Mopar

1971-1974 Plymouth Fury I

318 LA Engine Mopar
360 Mopar

1967-1970 Plymouth Fury II

318 LA Engine Mopar

1971-1974 Plymouth Fury II

318 LA Engine Mopar
360 Mopar

1967-1970 Plymouth Fury III

318 LA Engine Mopar

1971-1974 Plymouth Fury III

318 LA Engine Mopar
360 Mopar

1972-1977 Plymouth Gran Fury

318 LA Engine Mopar
360 Mopar

1980 Plymouth Gran Fury

318 LA Engine Mopar
360 Mopar

1981-1989 Plymouth Gran Fury

318 LA Engine Mopar

1968-1969 Plymouth GTX

318 LA Engine Mopar

1971 Plymouth Roadrunner

340 Mopar

1972-1973 Plymouth Roadrunner

318 LA Engine Mopar
340 Mopar

1974-1975 Plymouth Roadrunner

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Satellite

318 LA Engine Mopar
340 Mopar

1971-1973 Plymouth Satellite

318 LA Engine Mopar
340 Mopar
360 Mopar

1974 Plymouth Satellite

318 LA Engine Mopar
360 Mopar

1971-1976 Plymouth Scamp

318 LA Engine Mopar

1974-1981 Plymouth Trailduster

318 LA Engine Mopar
360 Mopar

1968-1970 Plymouth Valiant

318 LA Engine Mopar
340 Mopar

1971-1973 Plymouth Valiant

318 LA Engine Mopar
340 Mopar
360 Mopar

1974 Plymouth Valiant

318 LA Engine Mopar
360 Mopar

1975 Plymouth Valiant

318 LA Engine Mopar

1976 Plymouth Valiant

318 LA Engine Mopar
360 Mopar

1967 Plymouth VIP

318 LA Engine Mopar

1976-1980 Plymouth Volare

318 LA Engine Mopar
360 Mopar
