Product Summary

305, 350, Hydraulic Flat Tappet Camshaft Type

    Key Specs

    Camshaft TypeHydraulic Flat Tappet
    Intake Duration (.050" Lift)224
    Exhaust Duration (.050" Lift)230
    RPM Range1800 to 5800
    Lobe Separation114 °

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    COMP Cams CL12-268-4 Details

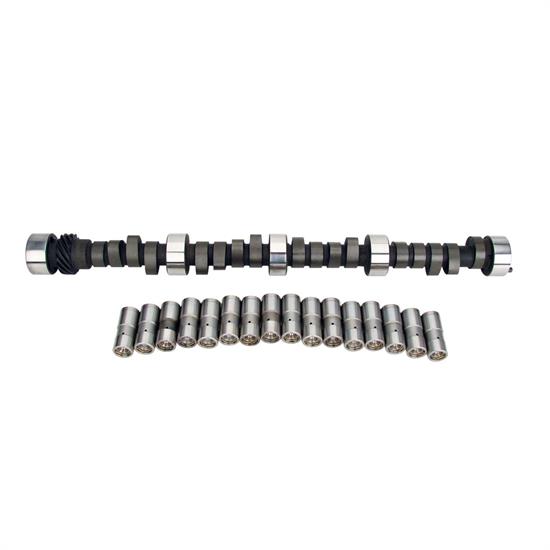

    CL12-268-4 - Cam and Lifter Kit, CS XE 268H-1 4.

    Chevrolet 262-400 c.i. 8 cyl. 1958-1998. For '58-'98 262-400 cid Small Block Engines w/ Flat Tappet Cam - Best Cam For Modified 350 TPI w/ Improved Chip, Injectors, Plenum, Runners & Exhaust. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

    • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
    • More vacuum allows an increase in duration for improved performance & assists power brakes
    • Excellent performance in street carbureted applications
    • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

    Application

    1987-98 Chevy 305-350

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams CL12-268-4 Specifications

    KEY SPECS
    MFG. Part #CL12-268-4
    BrandCOMP Cams
    Camshaft TypeHydraulic Flat Tappet
    Intake Duration (.050" Lift)224
    Exhaust Duration (.050" Lift)230
    RPM Range1800 to 5800
    Lobe Separation114 °
    Lifter TypeHydraulic Flat Tappet
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.479"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.48"
    Sold in QuantityKit
    Intake Duration268
    Exhaust Duration280
    GTIN Code036584068655
    Grind NumberCS XE268H-14
    External Ignition Box RequiredYes
    Valve Springs RequiredYes
    Valve Spring IncludedNo
    Lifters IncludedYes
    Retainers IncludedNo
    Locks IncludedNo
    Valve Stem Seals IncludedNo
    Timing Chain and Gears IncludedNo
    Assembly Lubricant IncludedYes
    Pushrods Included
    Rocker Arms IncludedNo
    Gaskets IncludedNo
