COMP Cams CK54-307-11 LST Camshaft Kit, GM LS3 Camaro/Corvette
COMP Cams CK54-307-11 LST Camshaft Kit, GM LS3 Camaro/Corvette

COMP Cams CK54-307-11 LST Camshaft Kit, GM LS3 Camaro/Corvette

LS3 Chevy LS V8, Hydraulic Roller Tappet Camshaft Type, 3000-7500 RPM Range, Billet Steel

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select a vehicle to verify fitment.
Select Vehicle
COMP Cams CK54-307-11 LST Camshaft Kit, GM LS3 Camaro/Corvette
COMP Cams CK54-307-11 LST Camshaft Kit, GM LS3 Camaro/Corvette
COMP Cams CK54-307-11 LST Camshaft Kit, GM LS3 Camaro/Corvette
X
COMP Cams CK54-307-11 LST Camshaft Kit, GM LS3 Camaro/Corvette
Zoomed In Image
We estimate this item will ship on or before December 12th.
Part # 282CK5430711
Save 9%
$1,124.99
$1,249.32
each
Call to Order
Add to Buildlist
Click to Login
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for COMP Cams to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Camshaft Type:
Hydraulic Roller Tappet
RPM Range:
3000-7500
Intake Duration:
306
Exhaust Duration:
315
Intake Duration (.050" Lift):
251
Exhaust Duration (.050" Lift):
266
Intake Valve Lift w/ Rocker Arm Ratio:
0.663"
Exhaust Valve Lift w/ Rocker Arm Ratio:
0.655"
Lobe Separation:
113 °
Material Type:
Billet Steel
Computer Controlled Compatible:
Yes
MFG. Part #:
CK54-307-11
GTIN Code:
00036584387145
Valve Springs Required:
No
Valve Spring Included:
Yes
Retainers Included:
Yes
Locks Included:
Yes
Valve Stem Seals Included:
Yes
Timing Chain and Gears Included:
No
Assembly Lubricant Included:
No
Pushrods Included:
Yes
Rocker Arms Included:
No
Gaskets Included:
No
Gear Attachment:
3-Bolt
Sold in Quantity:
Each
Notes:
Requires aftermarket pistons with valve reliefs. Manual transmission.

Info

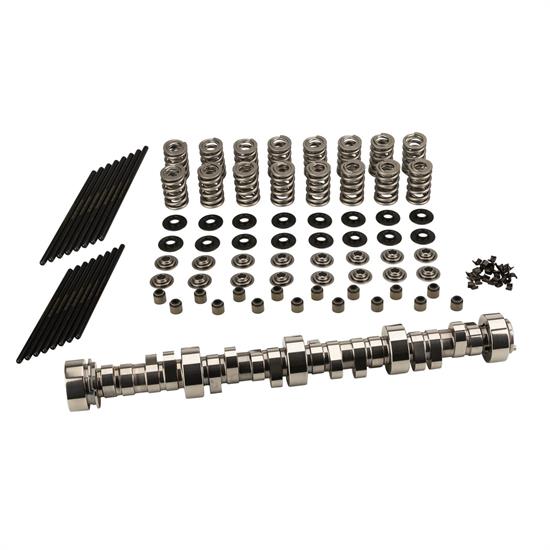

The Stage 2 LST Cam Kit for Manual LS3 Camaro and Corvette is the answer for those who want maximum power from an aftermarket piston LS3. Kit includes pushrods, springs, retainers, locks, spring seats and seals.

  • For Stage 2 LST Cam Kit for Manual LS3 Corvette/Camaro w/ Aftermarket Pistons
  • Cam Type: Hydraulic Roller
  • Basic Operating RPM Range: 3,500-7,500
  • Intake Duration at .050 Inch Lift: 251
  • Exhaust Duration at .050 inch Lift: 266
  • Advertised Intake Duration: 306
  • Advertised Exhaust Duration: 315
  • Lobe Separation: 113
  • Intake Valve Lift: 0.663
  • Exhaust Valve Lift: 0.655
  • Lifters Included: No
  • Valve Springs Included: Yes
  • Assembly Lubricant Included: No
  • Camshaft Gear Attachment: 3-Bolt
  • Camshaft Material: Billet Steel
  • Lifter Style: Hydraulic Roller
  • Retainers Included: Yes
  • Locks Included: Yes
  • Pushrods Included: Yes
  • Gaskets Included: No
  • Timing Set Included: No
  • Valve Seals Included: Yes
  • Valve Spring Seats Included: Yes
Some parts are not legal for use in California or other states with similar laws/regulations
