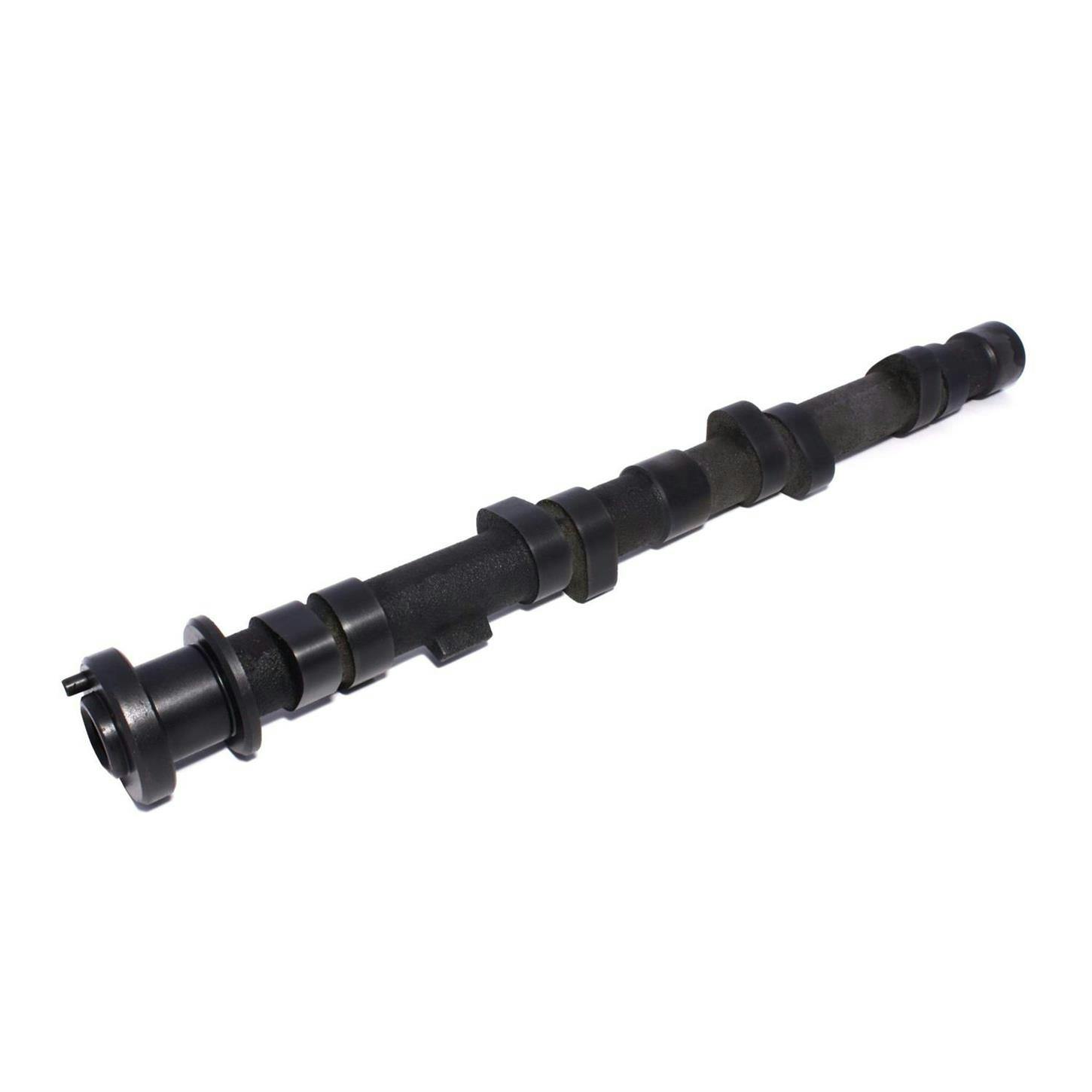

COMP Cams 87-131-6 Magnum Solid Camshaft, Toyota 2.2/2.4L
$390.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | 87-131-6 |
| RPM Range | 2000-6000 |
| Intake Duration (.050" Lift) | 242 |
| Exhaust Duration (.050" Lift) | 242 |
| Lobe Separation | 110 ° |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 87-131-6 Details
COMP Cams 87-131-6 Details
COMP Cams Magnum 280S-10 Solid Camshaft for Toyota 20R and 22R 4 Cyl, 1974-1989.
Toyota 20R and 22R 4 cyl. 1974-1989. Solid-Best cam for street performance with 5 speed. Good mid-range and top-end. Magnum. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Great high RPM power
- Easy on valve train parts
- Can be used with mild ratio rocker arms & traditional performance valve springs
- Best with aftermarket converter & 9.5:1+ compression
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
COMP Cams 87-131-6 Specifications
COMP Cams 87-131-6 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 87-131-6 |
| Brand | COMP Cams |
| RPM Range | 2000-6000 |
| Intake Duration (.050" Lift) | 242 |
| Exhaust Duration (.050" Lift) | 242 |
| Lobe Separation | 110 ° |
| GENERAL | |
| Intake Valve Lift w/ Rocker Arm Ratio | 0.455" |
| Exhaust Valve Lift w/ Rocker Arm Ratio | 0.455" |
| Intake Duration | 283 |
| Exhaust Duration | 283 |
| Sold in Quantity | Each |
| Intake Valve Lash | 0.01 |
| Exhaust Valve Lash | 0.01 |
| GTIN Code | 036584191346 |
| External Ignition Box Required | No |
| Valve Springs Required | Yes |
