Product Summary

0.312" Tube O.D., Steel, For Use with Guideplates

    Key Specs

    MFG. Part #7809-1
    Tube O.D.0.312"
    Material TypeSteel
    Top Tip StyleBall
    Bottom Tip StyleBall

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    COMP Cams 7809-1 Details

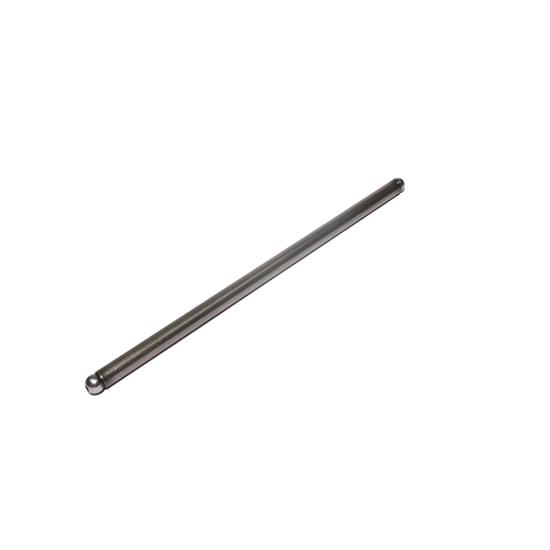

    COMP Cams High Energy Pushrod for Small Block Chevy with Retro-Fit Hydraulic Roller Cam, 5/16" Diameter, 7.266" Length, Single Piece.

    High Energy Pushrods from COMP Cams are an affordable, high quality solution when building street rods, RVs and daily drivers. High Energy Pushrods have a durable one-piece construction that meets or exceeds all OE pushrod specifications and pair perfectly with High Energy and Magnum Rocker Arms.

    • Best choice when building street rods, RVs or daily driver engines
    • Available in 3/8" or 5/16" diameters
    • Meet or exceed all OE pushrod specifications
    • Mate perfectly with High Energy or Magnum Rockers

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams 7809-1 Specifications

    MFG. Part #7809-1
    BrandCOMP Cams
    Tube O.D.0.312"
    Material TypeSteel
    Top Tip StyleBall
    Bottom Tip StyleBall
    Heat TreatedYes
    GTIN Code036584401315
    Sold in QuantityEach
    For Use with GuideplatesYes
    Bottom Tip Diameter0.312"
    Top Tip Diameter0.312"
    Tip AttachmentWelded
    One-Piece PushrodNo
    Exhaust Length7.266"
    Intake Length7.266"
