Product Summary

Solid Flat Tappet Camshaft Type, 3500-7400 RPM Range

    See more details

    Key Specs

    Camshaft TypeSolid Flat Tappet
    RPM Range3500-7400
    Intake Duration (.050" Lift)270
    Exhaust Duration (.050" Lift)270
    Lobe Separation112 °
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

    COMP Cams 70-202-6 Details

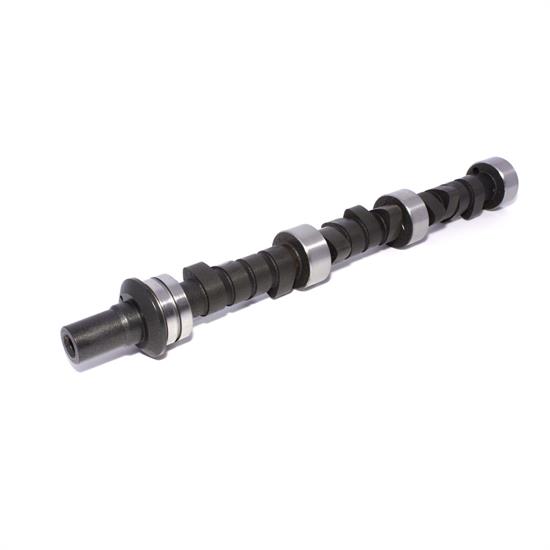

    70-202-6 - Camshaft, F23 294S-12.

    Oval Track Mechanical Flat Tappet Camshafts. Solid-Aftermarket intake and headers needed. 500 CFM carburetor, 11:1+ compression. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

    Application

    1971-91 Ford 122-140

    Guides & Documents

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams 70-202-6 Specifications

    KEY SPECS
    MFG. Part #70-202-6
    BrandCOMP Cams
    Camshaft TypeSolid Flat Tappet
    RPM Range3500-7400
    Intake Duration (.050" Lift)270
    Exhaust Duration (.050" Lift)270
    Lobe Separation112 °
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.503"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.503"
    Intake Duration300
    Exhaust Duration300
    Sold in QuantityEach
    Grind Number294S
    Intake Valve Lash0.01
    Exhaust Valve Lash0.01
    GTIN Code036584067504
    External Ignition Box RequiredNo
    Valve Springs RequiredNo

    Questions & Answers

    Fitment

    • Ford Lima 2.3

    • 2.3 Ford Inline Four

    • Ford Lima 2.3

    • Ford Lima 2.3

    • Ford Lima 2.0

    • Ford Lima 2.3
