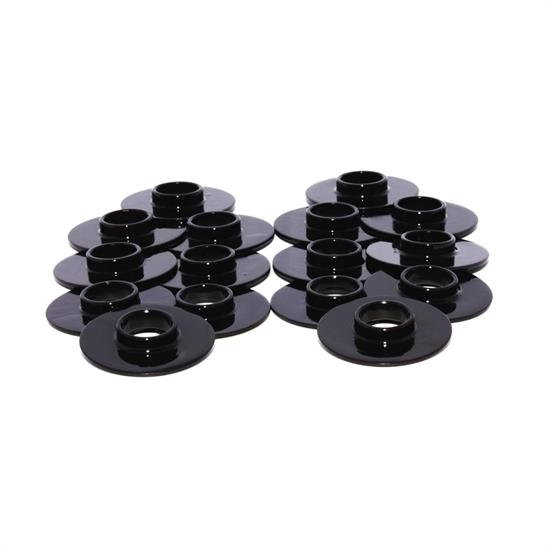

COMP Cams 4778-16 Valve Spring Locators, 0.570 ID, 1.550 OD, Set of 16
$72.95
/set
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 4778-16 Details
COMP Cams 4778-16 Details
The old standard shims will not hold up to the extreme spring pressures and high RPM in today’s race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup.
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams 4778-16 Specifications
COMP Cams 4778-16 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 4778-16 |
| Brand | COMP Cams |
| GENERAL | |
| Inside Diameter | 0.57" |
| Outside Diameter | 1.55" |
| Material Type | Steel |
| Locating Shoulder Type | Inside |
| Overall Thickness | 0.06" |
| Sold in Quantity | Set |
| GTIN Code | 036584393146 |
| Inner Spring I.D. | 0.73" |
