#282469016

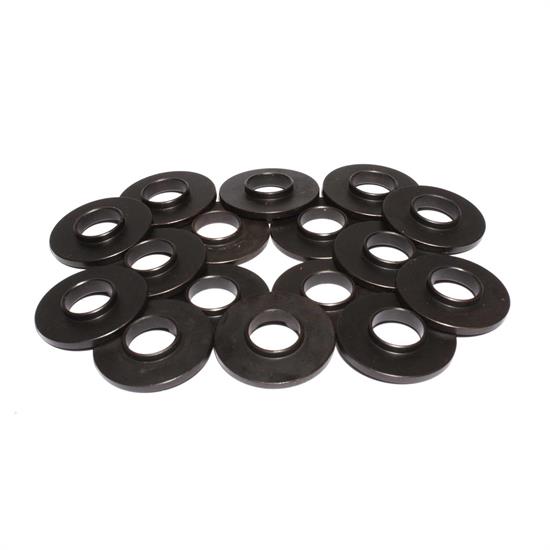

COMP Cams 4690-16 Valve Spring Locators, 0.780 ID, 1.253 OD, Set of 16
$64.95
set
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 12th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
0.78" Inside Diameter, 1.253" Outside Diameter, Steel
See more details
Key Specs
MFG. Part # | 4690-16 |
Brand | COMP Cams |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 4690-16 Details
COMP Cams 4690-16 Details
The old standard shims will not hold up to the extreme spring pressures and high RPM in today’s race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup.
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams 4690-16 Specifications
COMP Cams 4690-16 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 4690-16 |
Brand | COMP Cams |
GENERAL | |
Speedway Motors Catalog Part # | 282-469016 |
Inside Diameter | 0.78" |
Outside Diameter | 1.253" |
Material Type | Steel |
Locating Shoulder Type | Inside |
Overall Thickness | 0.12" |
Sold in Quantity | Set |
GTIN Code | 036584133117 |
Outer Spring O.D. | 1.25" |
Inner Spring I.D. | 0.878" |
