Product Summary

Hydraulic Roller Tappet Camshaft Type

    See more details

    Key Specs

    Camshaft TypeHydraulic Roller Tappet
    RPM Range2200-6200
    Intake Duration (.050" Lift)224
    Exhaust Duration (.050" Lift)232
    Lobe Separation112 °
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

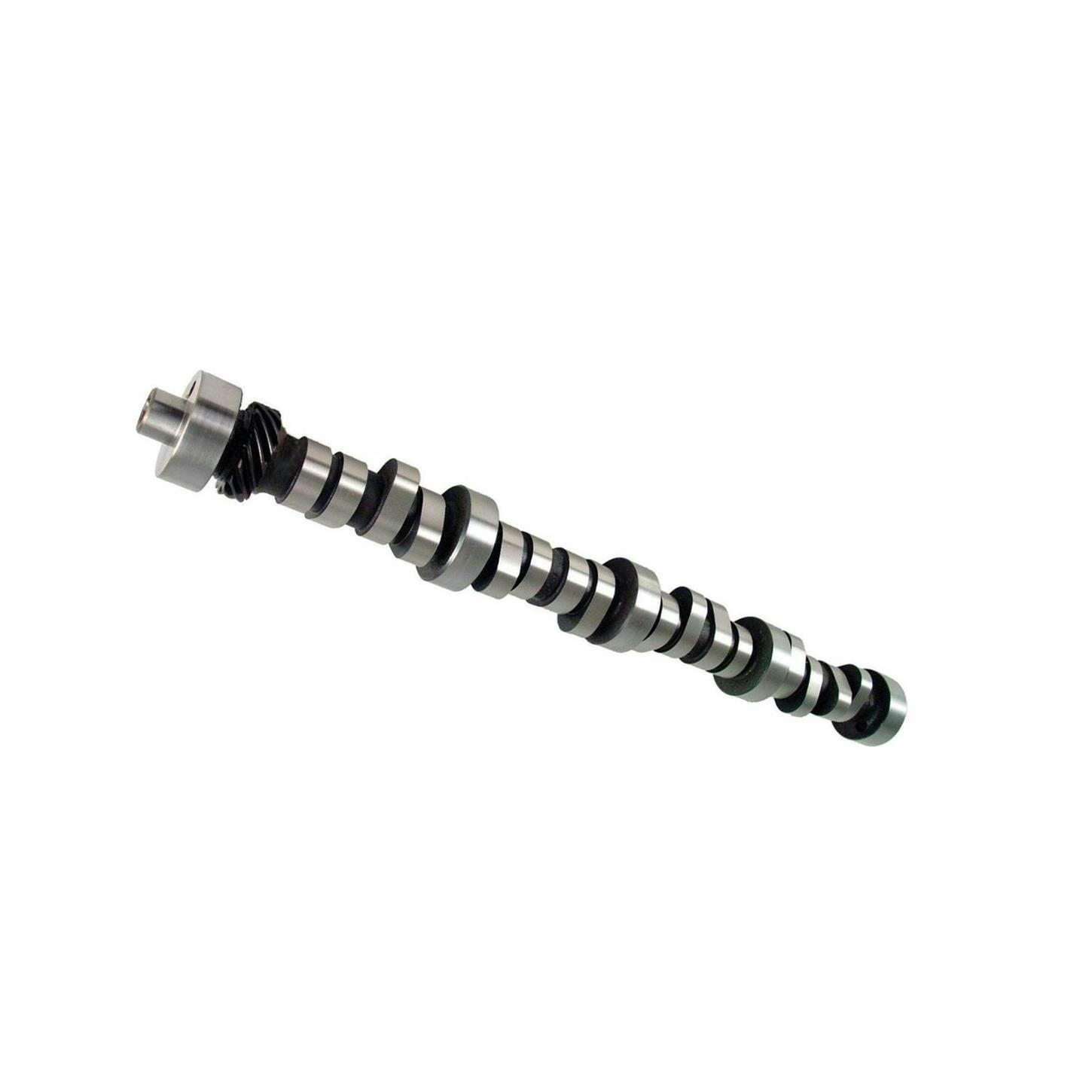

    COMP Cams 35-518-8 Details

    COMP Cams Xtreme Energy Computer Controlled XE274HR-12 Camshaft for Ford 5.0L Engine Originally Equipped with Hydraulic Roller Cams.

    Ford 5.0L 8 cyl. 1982-2001. Hydraulic Roller-2500 stall, 3.55-3.73 gears, better heads, intake and fuel system. Xtreme Energy Hydraulic Roller Camshafts, Computer compatible (E.F.I.) with O.E. Hydraulic roller cams 1985-95. Hydraulic Roller - Xtreme Energy Computer Controlled: 2500+ stall, 3.55-3.73 gears, better heads, intake and fuel system.

    • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
    • More vacuum allows an increase in duration for improved performance & assists power brakes
    • Excellent performance in street carbureted applications
    • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

    Guides & Documents

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    COMP Cams 35-518-8 Specifications

    KEY SPECS
    MFG. Part #35-518-8
    BrandCOMP Cams
    Camshaft TypeHydraulic Roller Tappet
    RPM Range2200-6200
    Intake Duration (.050" Lift)224
    Exhaust Duration (.050" Lift)232
    Lobe Separation112 °
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.555"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.565"
    Intake Duration274
    Exhaust Duration282
    Sold in QuantityEach
    Grind NumberFW XE274HR-12
    GTIN Code036584031574
    External Ignition Box RequiredYes
    Valve Springs RequiredYes

    Fitment

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor

    • 5.0L Ford Small Block Windsor
