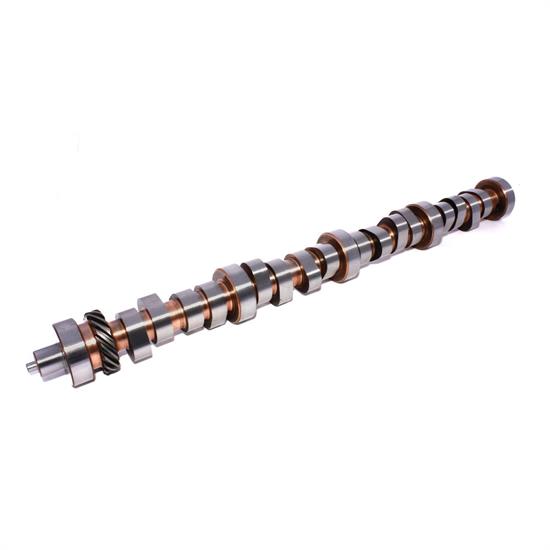

COMP Cams 34-720-9 Puller and Mud Race Solid Roller Cam, Ford 429/460

#282347209

COMP Cams 34-720-9 Puller and Mud Race Solid Roller Cam, Ford 429/460

Name: COMP Cams 34-720-9 Puller and Mud Race Solid Roller Cam, Ford 429/460
Brand: COMP Cams
SKU: 282347209
Price: 558.95 USD
Availability: InStock

Write a Review

Ask a Question

$558.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Solid Roller Tappet Camshaft Type, 3800-7200 RPM Range

See more details

Key Specs

Camshaft Type	Solid Roller Tappet
RPM Range	3800-7200
Intake Duration (.050" Lift)	270
Exhaust Duration (.050" Lift)	270
Lobe Separation	108 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 34-720-9 Details

34-720-9 - Camshaft, FF 306A-R8.

Puller & Mud Race Mechanical Roller Camshafts. Mechanical Roller-Works best in 460 or larger engine with 11:1 comp. and tunnel ram. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 34-720-9 Specifications

KEY SPECS
MFG. Part #	34-720-9
Brand	COMP Cams
Camshaft Type	Solid Roller Tappet
RPM Range	3800-7200
Intake Duration (.050" Lift)	270
Exhaust Duration (.050" Lift)	270
Lobe Separation	108 °

GENERAL
Gear Attachment	1-Bolt
Intake Valve Lift w/ Rocker Arm Ratio	0.692"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.692"
Computer Controlled Compatible	No
Intake Duration	306
Exhaust Duration	306
Lifters Included	No
Sold in Quantity	Each
Grind Number	FF 306A-R8
Intake Valve Lash	0.028
Exhaust Valve Lash	0.03
GTIN Code	036584670704
External Ignition Box Required	No
Lifter Type	Mechanical/Solid Roller
Valve Springs Required	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	No
Assembly Lubricant Included	No
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No
Notes	Designed for 460 cu. in. and larger engines.

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1969-1971 Ford Country Sedan

429 Ford 385 Series Big Block V8

1972-1973 Ford Country Sedan

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Country Sedan

460 Ford 385 Series Big Block V8

1969-1971 Ford Country Squire

429 Ford 385 Series Big Block V8

1972-1973 Ford Country Squire

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Country Squire

460 Ford 385 Series Big Block V8

1969-1971 Ford Custom

429 Ford 385 Series Big Block V8

1972 Ford Custom

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1969-1971 Ford Custom 500

429 Ford 385 Series Big Block V8

1972-1973 Ford Custom 500

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Custom 500

460 Ford 385 Series Big Block V8

1976-1980 Ford E-150 Econoline

460 Ford 385 Series Big Block V8

1976-1977 Ford E-150 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1979 Ford E-150 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1975-1980 Ford E-250 Econoline

460 Ford 385 Series Big Block V8

1975-1991 Ford E-250 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1975-1996 Ford E-350 Econoline

460 Ford 385 Series Big Block V8

1977-1996 Ford E-350 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1996 Ford Econoline Super Duty

460 Ford 385 Series Big Block V8

1975-1976 Ford Elite

460 Ford 385 Series Big Block V8

1988-1997 Ford F Super Duty

460 Ford 385 Series Big Block V8

1975-1979 Ford F-150

460 Ford 385 Series Big Block V8

1973-1979 Ford F-250

460 Ford 385 Series Big Block V8

1983-1997 Ford F-250

460 Ford 385 Series Big Block V8

1973-1979 Ford F-350

460 Ford 385 Series Big Block V8

1983-1997 Ford F-350

460 Ford 385 Series Big Block V8

1970 Ford Fairlane

429 Ford 385 Series Big Block V8

1970 Ford Falcon

429 Ford 385 Series Big Block V8

1969-1971 Ford Galaxie 500

429 Ford 385 Series Big Block V8

1972-1973 Ford Galaxie 500

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Galaxie 500

460 Ford 385 Series Big Block V8

1972 Ford Gran Torino

429 Ford 385 Series Big Block V8

1973 Ford Gran Torino

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Gran Torino

460 Ford 385 Series Big Block V8

1969-1971 Ford LTD

429 Ford 385 Series Big Block V8

1972-1973 Ford LTD

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1978 Ford LTD

460 Ford 385 Series Big Block V8

1969-1971 Ford Mustang

429 Ford 385 Series Big Block V8

1969-1971 Ford Ranch Wagon

429 Ford 385 Series Big Block V8

1972-1973 Ford Ranch Wagon

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Ranch Wagon

460 Ford 385 Series Big Block V8

1970-1973 Ford Ranchero

429 Ford 385 Series Big Block V8

1974-1977 Ford Ranchero

460 Ford 385 Series Big Block V8

1968-1971 Ford Thunderbird

429 Ford 385 Series Big Block V8

1972-1973 Ford Thunderbird

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Thunderbird

460 Ford 385 Series Big Block V8

1970-1972 Ford Torino

429 Ford 385 Series Big Block V8

1973 Ford Torino

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Torino

460 Ford 385 Series Big Block V8

1968-1978 Lincoln Continental

460 Ford 385 Series Big Block V8

1968-1971 Lincoln Mark III

460 Ford 385 Series Big Block V8

1972-1976 Lincoln Mark IV

460 Ford 385 Series Big Block V8

1977-1978 Lincoln Mark V

460 Ford 385 Series Big Block V8

1969-1971 Mercury Colony Park

429 Ford 385 Series Big Block V8

1972-1973 Mercury Colony Park

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Mercury Colony Park

460 Ford 385 Series Big Block V8

1969-1971 Mercury Cougar

429 Ford 385 Series Big Block V8

1973-1976 Mercury Cougar

460 Ford 385 Series Big Block V8

1969-1971 Mercury Cyclone

429 Ford 385 Series Big Block V8

1975-1978 Mercury Grand Marquis

460 Ford 385 Series Big Block V8

1969-1970 Mercury Marauder

429 Ford 385 Series Big Block V8

1969-1971 Mercury Marquis

429 Ford 385 Series Big Block V8

1972-1973 Mercury Marquis

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1978 Mercury Marquis

460 Ford 385 Series Big Block V8

1970-1972 Mercury Montego

429 Ford 385 Series Big Block V8

1973 Mercury Montego

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Mercury Montego

460 Ford 385 Series Big Block V8

1969-1971 Mercury Monterey

429 Ford 385 Series Big Block V8

1972-1973 Mercury Monterey

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Mercury Monterey

460 Ford 385 Series Big Block V8
