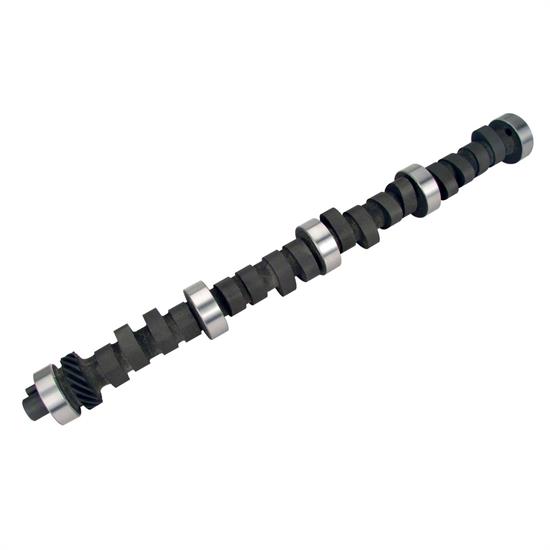

COMP Cams 34-235-4 Xtreme 4x4 Hydraulic Camshaft, Ford 429/460

#282342354

COMP Cams 34-235-4 Xtreme 4x4 Hydraulic Camshaft, Ford 429/460

Name: COMP Cams 34-235-4 Xtreme 4x4 Hydraulic Camshaft, Ford 429/460
Brand: COMP Cams
SKU: 282342354
Price: 309.95 USD
Availability: InStock

Write a Review

1 Question

$309.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
RPM Range	1400-5600
Intake Duration (.050" Lift)	218
Exhaust Duration (.050" Lift)	226
Lobe Separation	111 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 34-235-4 Details

34-235-4 - Camshaft, FF X4 262H-11.

Xtreme 4 x 4 Hydraulic Flat Tappet Camshafts. Hydraulic-Good mid-range, largest for stock converter, heavy towing, noticeable idle. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Improved throttle response & increased low & mid-range RPM horsepower for towing & off-road
Designed for use with common restrictive factory exhaust systems, including OEM exhaust manifolds

Application

1968-94 Ford 429-460

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 34-235-4 Specifications

KEY SPECS
MFG. Part #	34-235-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
RPM Range	1400-5600
Intake Duration (.050" Lift)	218
Exhaust Duration (.050" Lift)	226
Lobe Separation	111 °

GENERAL
Gear Attachment	1-Bolt
Intake Valve Lift w/ Rocker Arm Ratio	0.514"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.524"
Intake Duration	262
Exhaust Duration	270
Lifters Included	No
Sold in Quantity	Each
Grind Number	FF X4 262H-11
GTIN Code	036584038672
External Ignition Box Required	No
Lifter Type	Mechanical Flat Tappet
Valve Springs Required	Yes
Retainers Included	No
Locks Included	No
Valve Stem Seals Included	No
Timing Chain and Gears Included	No
Assembly Lubricant Included	No
Pushrods Included	No
Rocker Arms Included	No
Gaskets Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

What valve springs are needed for this cam

by Ryan

• 7 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1969-1971 Ford Country Sedan

429 Ford 385 Series Big Block V8

1972-1973 Ford Country Sedan

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Country Sedan

460 Ford 385 Series Big Block V8

1969-1971 Ford Country Squire

429 Ford 385 Series Big Block V8

1972-1973 Ford Country Squire

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Country Squire

460 Ford 385 Series Big Block V8

1969-1971 Ford Custom

429 Ford 385 Series Big Block V8

1972 Ford Custom

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1969-1971 Ford Custom 500

429 Ford 385 Series Big Block V8

1972-1973 Ford Custom 500

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Custom 500

460 Ford 385 Series Big Block V8

1976-1980 Ford E-150 Econoline

460 Ford 385 Series Big Block V8

1976-1977 Ford E-150 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1979 Ford E-150 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1975-1980 Ford E-250 Econoline

460 Ford 385 Series Big Block V8

1975-1991 Ford E-250 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1975-1996 Ford E-350 Econoline

460 Ford 385 Series Big Block V8

1977-1996 Ford E-350 Econoline Club Wagon

460 Ford 385 Series Big Block V8

1996 Ford Econoline Super Duty

460 Ford 385 Series Big Block V8

1975-1976 Ford Elite

460 Ford 385 Series Big Block V8

1988-1997 Ford F Super Duty

460 Ford 385 Series Big Block V8

1975-1979 Ford F-150

460 Ford 385 Series Big Block V8

1973-1979 Ford F-250

460 Ford 385 Series Big Block V8

1983-1997 Ford F-250

460 Ford 385 Series Big Block V8

1973-1979 Ford F-350

460 Ford 385 Series Big Block V8

1983-1997 Ford F-350

460 Ford 385 Series Big Block V8

1970 Ford Fairlane

429 Ford 385 Series Big Block V8

1970 Ford Falcon

429 Ford 385 Series Big Block V8

1969-1971 Ford Galaxie 500

429 Ford 385 Series Big Block V8

1972-1973 Ford Galaxie 500

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Galaxie 500

460 Ford 385 Series Big Block V8

1972 Ford Gran Torino

429 Ford 385 Series Big Block V8

1973 Ford Gran Torino

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Gran Torino

460 Ford 385 Series Big Block V8

1969-1971 Ford LTD

429 Ford 385 Series Big Block V8

1972-1973 Ford LTD

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1978 Ford LTD

460 Ford 385 Series Big Block V8

1969-1971 Ford Mustang

429 Ford 385 Series Big Block V8

1969-1971 Ford Ranch Wagon

429 Ford 385 Series Big Block V8

1972-1973 Ford Ranch Wagon

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Ford Ranch Wagon

460 Ford 385 Series Big Block V8

1970-1973 Ford Ranchero

429 Ford 385 Series Big Block V8

1974-1977 Ford Ranchero

460 Ford 385 Series Big Block V8

1968-1971 Ford Thunderbird

429 Ford 385 Series Big Block V8

1972-1973 Ford Thunderbird

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Thunderbird

460 Ford 385 Series Big Block V8

1970-1972 Ford Torino

429 Ford 385 Series Big Block V8

1973 Ford Torino

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Ford Torino

460 Ford 385 Series Big Block V8

1968-1978 Lincoln Continental

460 Ford 385 Series Big Block V8

1968-1971 Lincoln Mark III

460 Ford 385 Series Big Block V8

1972-1976 Lincoln Mark IV

460 Ford 385 Series Big Block V8

1977-1978 Lincoln Mark V

460 Ford 385 Series Big Block V8

1969-1971 Mercury Colony Park

429 Ford 385 Series Big Block V8

1972-1973 Mercury Colony Park

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Mercury Colony Park

460 Ford 385 Series Big Block V8

1969-1971 Mercury Cougar

429 Ford 385 Series Big Block V8

1973-1976 Mercury Cougar

460 Ford 385 Series Big Block V8

1969-1971 Mercury Cyclone

429 Ford 385 Series Big Block V8

1975-1978 Mercury Grand Marquis

460 Ford 385 Series Big Block V8

1969-1970 Mercury Marauder

429 Ford 385 Series Big Block V8

1969-1971 Mercury Marquis

429 Ford 385 Series Big Block V8

1972-1973 Mercury Marquis

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1978 Mercury Marquis

460 Ford 385 Series Big Block V8

1970-1972 Mercury Montego

429 Ford 385 Series Big Block V8

1973 Mercury Montego

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974-1976 Mercury Montego

460 Ford 385 Series Big Block V8

1969-1971 Mercury Monterey

429 Ford 385 Series Big Block V8

1972-1973 Mercury Monterey

429 Ford 385 Series Big Block V8
460 Ford 385 Series Big Block V8

1974 Mercury Monterey

460 Ford 385 Series Big Block V8
