#282332474

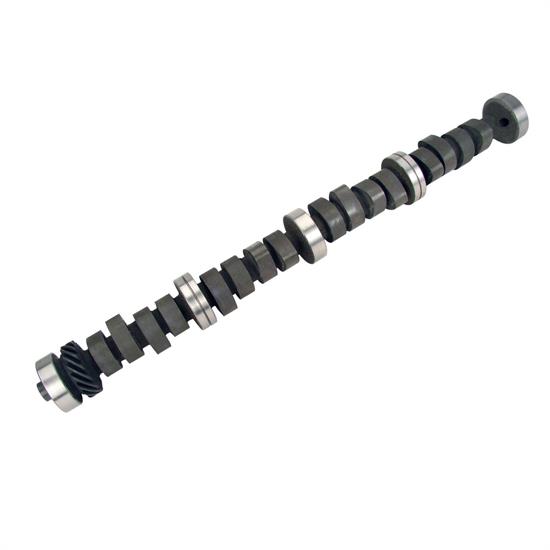

COMP Cams 33-247-4 Magnum Solid Camshaft, Ford B/B , 3000-7000 RPM
$282.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 18th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
352, 360, 390, 427, 428, 3000-7000 RPM Range
See more details
Key Specs
Camshaft Type | Solid Flat Tappet |
RPM Range | 3000-7000 |
Intake Duration (.050" Lift) | 260 |
Exhaust Duration (.050" Lift) | 260 |
Lobe Separation | 110 ° |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 33-247-4 Details
COMP Cams 33-247-4 Details
Magnum Mechanical Flat Tappet Camshafts. Solid-Excellent for Pro Street cars. 3500+ stall or 4 speed 11.5:1 compression, low gears. Radical idle. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.
- Great high RPM power
- Easy on valve train parts
- Can be used with mild ratio rocker arms & traditional performance valve springs
- Best with aftermarket converter & 9.5:1+ compression
Application
1963-76 Ford 352-428
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams 33-247-4 Specifications
COMP Cams 33-247-4 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 33-247-4 |
Brand | COMP Cams |
Camshaft Type | Solid Flat Tappet |
RPM Range | 3000-7000 |
Intake Duration (.050" Lift) | 260 |
Exhaust Duration (.050" Lift) | 260 |
Lobe Separation | 110 ° |
GENERAL | |
Intake Valve Lift w/ Rocker Arm Ratio | 0.640" |
Exhaust Valve Lift w/ Rocker Arm Ratio | 0.640" |
Intake Duration | 306 |
Exhaust Duration | 306 |
Sold in Quantity | Each |
Grind Number | FB 306S-10 |
Intake Valve Lash | 0.022 |
Exhaust Valve Lash | 0.022 |
GTIN Code | 036584641193 |
External Ignition Box Required | No |
Valve Springs Required | Yes |
