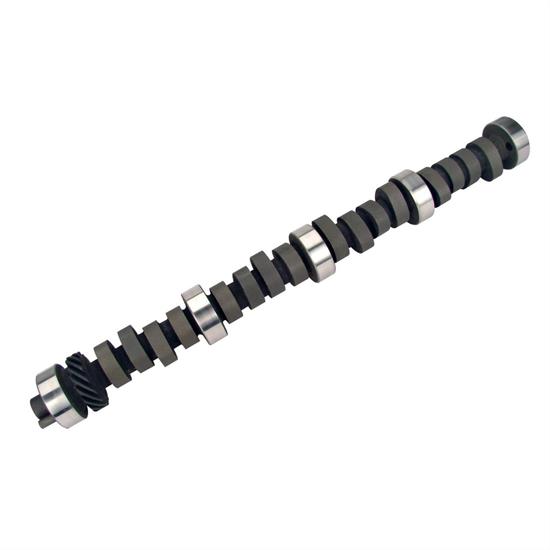

COMP Cams 32-242-4 Xtreme Energy Hydraulic Camshaft,Ford 351C/351M/400

#282322424

COMP Cams 32-242-4 Xtreme Energy Hydraulic Camshaft,Ford 351C/351M/400

Name: COMP Cams 32-242-4 Xtreme Energy Hydraulic Camshaft,Ford 351C/351M/400
Brand: COMP Cams
SKU: 282322424
Price: 309.95 USD
Availability: InStock

Write a Review

Ask a Question

$309.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type

See more details

Key Specs

Camshaft Type	Hydraulic Flat Tappet
RPM Range	1400-5600
Intake Duration (.050" Lift)	218
Exhaust Duration (.050" Lift)	224
Lobe Separation	110 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 32-242-4 Details

COMP Cams Xtreme Energy XE262H-10 Hydraulic Camshaft for Ford 351 Cleveland, 351-400 Modified.

Xtreme Energy Hydraulic Flat Tappet Camshafts. Hydraulic-Strong torque, excellent response. Good mid-range, stock converter, 3.23 gears. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1970-82 Ford 351-400

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 32-242-4 Specifications

KEY SPECS
MFG. Part #	32-242-4
Brand	COMP Cams
Camshaft Type	Hydraulic Flat Tappet
RPM Range	1400-5600
Intake Duration (.050" Lift)	218
Exhaust Duration (.050" Lift)	224
Lobe Separation	110 °

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.513"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.520"
Intake Duration	262
Exhaust Duration	270
Sold in Quantity	Each
Grind Number	XE262H
GTIN Code	036584080268
External Ignition Box Required	No
Valve Springs Required	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1971-1974 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1981-1987 DeTomaso Pantera

351C Ford 335 Series Cleveland V8

1978-1979 Ford Bronco

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1980-1982 Ford Bronco

351M Ford 335 Series Cleveland V8

1970 Ford Country Sedan

351C Ford 335 Series Cleveland V8

1971-1974 Ford Country Sedan

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1970 Ford Country Squire

351C Ford 335 Series Cleveland V8

1971-1974 Ford Country Squire

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1970 Ford Custom

351C Ford 335 Series Cleveland V8

1971-1972 Ford Custom

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1970 Ford Custom 500

351C Ford 335 Series Cleveland V8

1971-1974 Ford Custom 500

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1977 Ford Custom 500

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1979 Ford E-100 Econoline

351M Ford 335 Series Cleveland V8

1980 Ford E-100 Econoline

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1981-1982 Ford E-100 Econoline

351M Ford 335 Series Cleveland V8

1975-1982 Ford E-100 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1975-1982 Ford E-150 Econoline

351M Ford 335 Series Cleveland V8

1975-1982 Ford E-150 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1975-1979 Ford E-250 Econoline

351M Ford 335 Series Cleveland V8

1980 Ford E-250 Econoline

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1981-1982 Ford E-250 Econoline

351M Ford 335 Series Cleveland V8

1975-1979 Ford E-250 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1980-1982 Ford E-250 Econoline Club Wagon

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1979 Ford E-350 Econoline

351M Ford 335 Series Cleveland V8

1980-1982 Ford E-350 Econoline

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1977-1979 Ford E-350 Econoline Club Wagon

351M Ford 335 Series Cleveland V8

1980-1982 Ford E-350 Econoline Club Wagon

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1976 Ford Elite

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1977-1979 Ford F-100

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1981 Ford F-100

351M Ford 335 Series Cleveland V8

1977-1979 Ford F-150

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1980-1982 Ford F-150

351M Ford 335 Series Cleveland V8

1977-1982 Ford F-250

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1977-1982 Ford F-350

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1970 Ford Fairlane

351C Ford 335 Series Cleveland V8

1970 Ford Falcon

351C Ford 335 Series Cleveland V8

1970 Ford Galaxie 500

351C Ford 335 Series Cleveland V8

1971-1974 Ford Galaxie 500

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1972-1974 Ford Gran Torino

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1976 Ford Gran Torino

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1970 Ford LTD

351C Ford 335 Series Cleveland V8

1971-1974 Ford LTD

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1978 Ford LTD

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1977-1978 Ford LTD II

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1979 Ford LTD II

351M Ford 335 Series Cleveland V8

1970-1973 Ford Mustang

351C Ford 335 Series Cleveland V8

1970 Ford Ranch Wagon

351C Ford 335 Series Cleveland V8

1971-1974 Ford Ranch Wagon

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1970-1971 Ford Ranchero

351C Ford 335 Series Cleveland V8

1972-1974 Ford Ranchero

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1976 Ford Ranchero

400 Ford 335 Series Cleveland V8

1977-1978 Ford Ranchero

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1979 Ford Ranchero

351M Ford 335 Series Cleveland V8

1971-1974 Ford Thunderbird

400 Ford 335 Series Cleveland V8

1977-1978 Ford Thunderbird

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1979 Ford Thunderbird

351M Ford 335 Series Cleveland V8

1970-1971 Ford Torino

351C Ford 335 Series Cleveland V8

1972-1974 Ford Torino

351C Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1975-1976 Ford Torino

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1977-1979 Lincoln Continental

400 Ford 335 Series Cleveland V8

1977-1979 Lincoln Mark V

400 Ford 335 Series Cleveland V8

1971-1974 Mercury Colony Park

400 Ford 335 Series Cleveland V8

1972 Mercury Cougar

Ford 335 Series Cleveland V8 351C Boss
Ford 335 Series Cleveland V8 351C Cobra Jet

1973-1974 Mercury Cougar

400 Ford 335 Series Cleveland V8

1975-1978 Mercury Cougar

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1979 Mercury Cougar

351M Ford 335 Series Cleveland V8

1971 Mercury Cyclone

400 Ford 335 Series Cleveland V8

1975-1977 Mercury Grand Marquis

400 Ford 335 Series Cleveland V8

1978 Mercury Grand Marquis

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1971-1978 Mercury Marquis

400 Ford 335 Series Cleveland V8

1972-1974 Mercury Montego

400 Ford 335 Series Cleveland V8

1975-1976 Mercury Montego

351M Ford 335 Series Cleveland V8
400 Ford 335 Series Cleveland V8

1971-1974 Mercury Monterey

400 Ford 335 Series Cleveland V8
