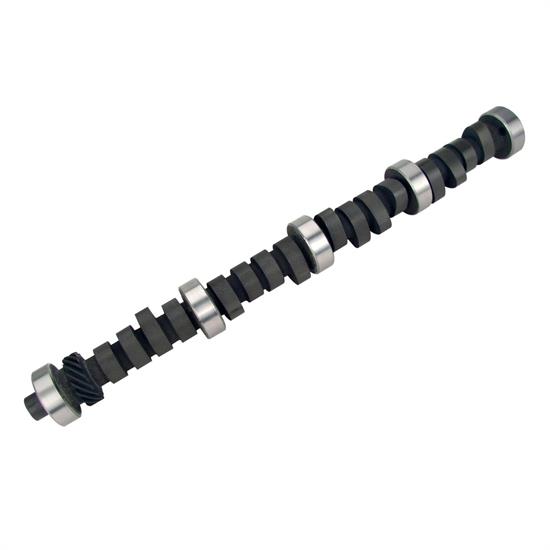

COMP Cams 31-238-3 Xtreme Energy Hydraulic Camshaft, Ford S/B
COMP Cams 31-238-3 Xtreme Energy Hydraulic Camshaft, Ford S/B
COMP Cams

|

#282312383

COMP Cams 31-238-3 Xtreme Energy Hydraulic Camshaft, Ford S/B

Duration:

262/270

268/280284/296

$297.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Flat Tappet Camshaft Type

    See more details

    Key Specs

    Camshaft TypeHydraulic Flat Tappet
    RPM Range1300-5600
    Intake Duration (.050" Lift)218
    Exhaust Duration (.050" Lift)224
    Lobe Separation110 °
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    COMP Cams 31-238-3 Details

    COMP Cams Xtreme Energy XE262H-10 Camshaft for Small Block Ford (289-302 Firing Order).

    Xtreme Energy Hydraulic Flat Tappet Camshafts. Hydraulic-Excellent response, good mid-range, stock converter, 3.23-4.10 gear. Hydraulic - Xtreme Energy: Excellent response, good mid-range, stock converter, 3.23-4.10 gear.

    • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
    • More vacuum allows an increase in duration for improved performance & assists power brakes
    • Excellent performance in street carbureted applications
    • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

    Application

    1963-95 Ford 289-302

    Guides & Documents

    Warranty (COMP Cams)

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CA Prop 65
    CARB warning

    COMP Cams 31-238-3 Specifications

    KEY SPECS
    MFG. Part #31-238-3
    BrandCOMP Cams
    Camshaft TypeHydraulic Flat Tappet
    RPM Range1300-5600
    Intake Duration (.050" Lift)218
    Exhaust Duration (.050" Lift)224
    Lobe Separation110 °
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.493"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.500"
    Intake Duration262
    Exhaust Duration270
    Sold in QuantityEach
    Grind NumberFS XE262H-10
    GTIN Code036584030904
    External Ignition Box RequiredNo
    Valve Springs RequiredYes

    Questions & Answers

    1 Question • 1 Answer

    Can use the camshaft with OEM (stock) valves and rockers on 1967 ford 302? Or the camshaft needs high load valve springs?

    by TGol

    • 3 years ago

    1 answer

    View Answer

    1 of 1 questions shown

    Fitment

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 289

    • Ford 302

    • Ford 302

    • Ford 289

    • Ford 289

    • Ford 302

    • Ford 289
