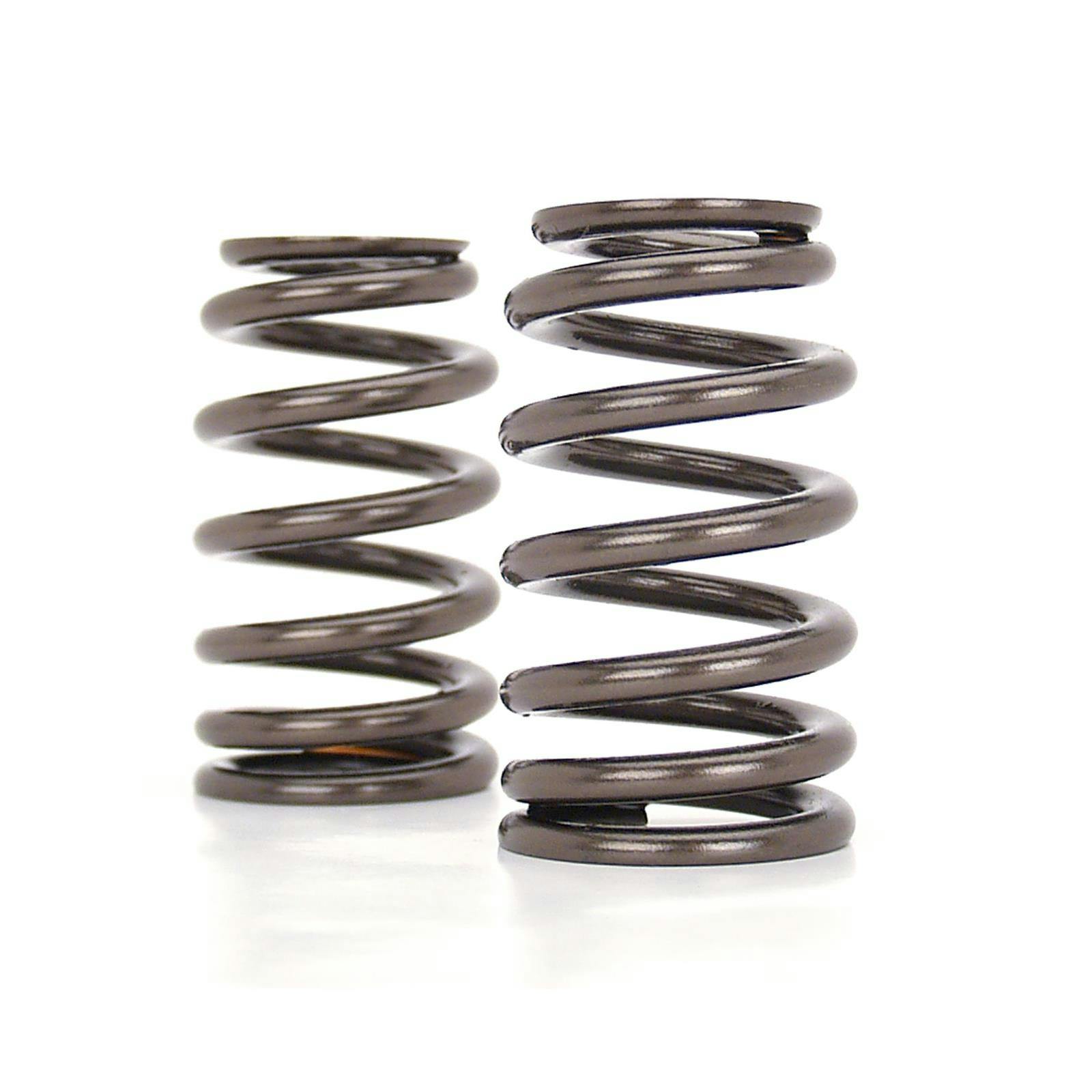

COMP Cams 26906-16 Beehive 1.077 Inch Valve Spring, Set of 16

#2822690616

COMP Cams 26906-16 Beehive 1.077 Inch Valve Spring, Set of 16

Name: COMP Cams 26906-16 Beehive 1.077 Inch Valve Spring, Set of 16
Brand: COMP Cams
SKU: 2822690616
Price: 115.95 USD
Availability: InStock

Write a Review

1 Question

Quantity:

Set/16

Each

$115.95

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Beehive Valve Spring Style, 1.077" Outside Diameter

See more details

Key Specs

MFG. Part #	26906-16
Valve Spring Style	Beehive
Outside Diameter	1.077"
Installed Height	1.800"
Spring Rate	386 lbs.

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 26906-16 Details

Beehive LS6+ Valve Spring for GM LS Engines

Number of Springs: 16
Compatible Shims: 4753
Spring Style: Beehive
Damper: No
Compatible Titanium Retainer: 722-1
Compatible Tool Steel Retainer: 1772-1
Compatible Chromemoly Steel Retainer: 774-1
Compatible Spring Seat / Seals: 528-KIT
Spring Rate: 386
Top Outside Diameter: 1.077
Open Load: 304
Seat Pressure: 92
Installed Height: 1.8
Coil Bind Height: 1.181
Bottom Inside Diameter: 0.86
Bottom Outside Diameter: 1.282
Top Inside Diameter: 0.655

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 26906-16 Specifications

KEY SPECS
MFG. Part #	26906-16
Brand	COMP Cams
Valve Spring Style	Beehive
Outside Diameter	1.077"
Installed Height	1.800"
Spring Rate	386 lbs.

GENERAL
Coil Bind Height	1.181"
Open Pressure	304
Seat Pressure	92
Damper Spring Included	No
Sold in Quantity	Set
Notes	Sold as a set of 16.
GTIN Code	00036584385790

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

What's make cam lift

by Will Turner

• 7 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

2004-2005 Cadillac CTS

GM LS6

2001-2004 Chevy Corvette

GM LS6
