COMP Cams 23-232-4 Xtreme Energy Solid Camshaft, Mopar B/B
COMP Cams 23-232-4 Xtreme Energy Solid Camshaft, Mopar B/B
COMP Cams

|

#282232324

COMP Cams 23-232-4 Xtreme Energy Solid Camshaft, Mopar B/B

Duration:

282/292

268/274

$309.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Solid Flat Tappet Camshaft Type, 2500-6500 RPM Range

    See more details

    Key Specs

    Camshaft TypeSolid Flat Tappet
    RPM Range2500-6500
    Intake Duration (.050" Lift)244
    Exhaust Duration (.050" Lift)252
    Lobe Separation110 °
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    COMP Cams 23-232-4 Details

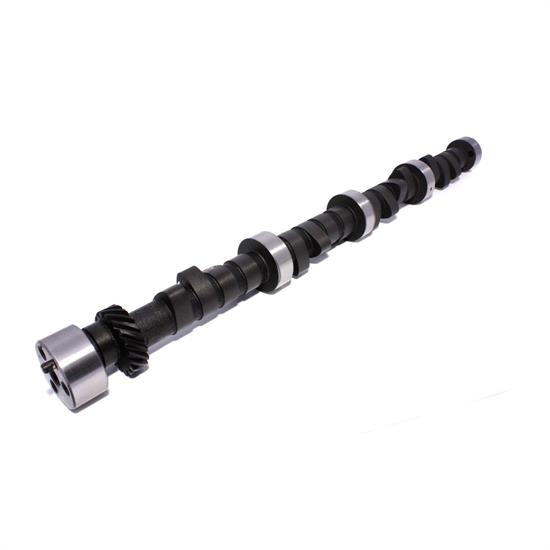

    COMP Cams Xtreme Energy XS282S-10 Solid Flat Tappet Camshaft for Big Block Chrysler, Three Bolt.

    All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

    • Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
    • More vacuum allows an increase in duration for improved performance & assists power brakes
    • Excellent performance in street carbureted applications
    • Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

    Application

    1959-78 Chrysler 383-440
    1960-78 Plymouth 383-440
    1959-79 Dodge 383-440

    Guides & Documents

    Warranty (COMP Cams)

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
    CA Prop 65
    CARB warning

    COMP Cams 23-232-4 Specifications

    KEY SPECS
    MFG. Part #23-232-4
    BrandCOMP Cams
    Camshaft TypeSolid Flat Tappet
    RPM Range2500-6500
    Intake Duration (.050" Lift)244
    Exhaust Duration (.050" Lift)252
    Lobe Separation110 °
    GENERAL
    Intake Valve Lift w/ Rocker Arm Ratio0.520"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.540"
    Intake Duration282
    Exhaust Duration292
    Sold in QuantityEach
    Grind NumberXS282S
    Intake Valve Lash0.016
    Exhaust Valve Lash0.018
    GTIN Code036584080206
    External Ignition Box RequiredNo
    Valve Springs RequiredYes

    Questions & Answers

    Be the first to ask a question.

    Fitment

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 413 Mopar

    • 413 Mopar

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 383 B Engine

    • 383 RB Engine

    • 383 B Engine

    • 383 RB Engine

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 383 B Engine

    • 383 RB Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 413 Mopar

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 B Engine

    • 383 RB Engine

    • 383 B Engine
