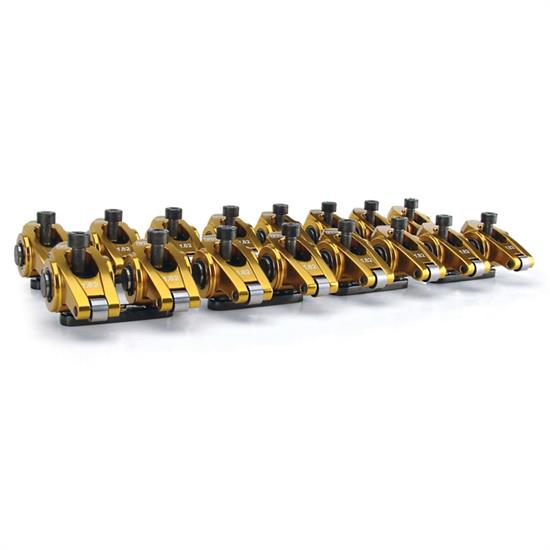

COMP Cams 19024-16 Ultra Gold Rocker Arms, Full roller, 8mm Stud, Set

#2821902416

COMP Cams 19024-16 Ultra Gold Rocker Arms, Full roller, 8mm Stud, Set

Name: COMP Cams 19024-16 Ultra Gold Rocker Arms, Full roller, 8mm Stud, Set
Brand: COMP Cams
SKU: 2821902416
Price: 599.95 USD
Availability: InStock

Write a Review

Ask a Question

$599.95

/set

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Full Roller Rocker Arm Style, 1.72 Rocker Arm Ratio

See more details

Key Specs

MFG. Part #	19024-16
Rocker Arm Style	Full Roller
Rocker Arm Ratio	1.72
Stud Size	0.314"
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 19024-16 Details

COMP Cams Ultra-Gold Aluminum Roller Rocker Arms, 1.7 Ratio, 8mm Stud Diameter for LS Series Engines.

These COMP Cams Ultra-Gold Aluminum Roller Rocker Arms with an 8mm stud diameter and 1.72 ratio are designed for GM LS applications. The new modern design features of these Ultra-Gold Rockers are proven to withstand extremely aggressive spring pressure and valve lift. Designed specifically for high performance street and race engines, the Ultra-Gold Aluminum Rocker Arms are precision CNC-machined to strict tolerances. Developed to meet the demands of professional engine builders, these rockers include features never before possible in an aluminum rocker arm.

Increase engine power, enhance valve train stability and improve oiling
CNC-machined, lightweight design removes weight and yields unrivaled quality and ratio accuracy
Arced channel & contoured top give the rockers the best strength to weight ratio possible
Precision-sorted trunnion bearings withstand valve spring pressure up to 700 lbs.
Designed for high performance street and race engines

Application

1997-15 Chevy 294-364

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

COMP Cams 19024-16 Specifications

KEY SPECS
MFG. Part #	19024-16
Brand	COMP Cams
Rocker Arm Style	Full Roller
Rocker Arm Ratio	1.72
Stud Size	0.314"
Material Type	Aluminum

GENERAL
Rocker Arm Nut Style	Polylock
Finish	Anodized
Sold in Quantity	Set
Spring Diameter	1.65"
Rocker Arm Body Style	Standard
Rocker Arm Mounting Style	Pedestal
Self-Aligning	No
Shims Included	No
GTIN Code	036584187554
Color	Gold

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2004 Buick Rainier

GM LM4

2006-2007 Cadillac CTS

GM LS2

2002-2011 Cadillac Escalade

GM LM7
GM LQ9

2003-2006 Cadillac Escalade ESV

GM LM7
GM LQ9

2002-2006 Cadillac Escalade EXT

GM LM7
GM LQ9

2002-2006 Chevy Avalanche 1500

GM LM7

2000-2002 Chevy C1500

4.8 Chevy LS V8
GM LM7
GM LQ4

2005-2007 Chevy Corvette

GM LS2

1999-2014 Chevy Silverado 1500

4.8 Chevy LS V8
GM LM7

2007 Chevy Silverado 1500 Classic

GM LQ4

2001-2003 Chevy Silverado 1500 HD

GM LQ4

2005-2006 Chevy Silverado 1500 HD

GM LQ4

2007 Chevy Silverado 1500 HD

GM LQ9

2007 Chevy Silverado 1500 HD Classic

GM LQ4

2000-2004 Chevy Silverado 2500

GM LM7
GM LQ4

2005 Chevy Silverado 2500

GM LQ9

2001-2011 Chevy Silverado 2500 HD

GM LQ4

2007 Chevy Silverado 2500 HD Classic

GM LQ4

2001-2006 Chevy Silverado 3500

GM LQ4

2007 Chevy Silverado 3500 Classic

GM LQ4

2007-2011 Chevy Silverado 3500 HD

GM LQ4

2003-2004 Chevy SSR

GM LM4

2000-2001 Chevy Suburban 1500

GM LM7

2002-2006 Chevy Suburban 1500

GM L59
GM LM7

2000-2006 Chevy Suburban 2500

GM LQ4

2000-2006 Chevy Tahoe

4.8 Chevy LS V8
GM L59
GM LM7

2007 Chevy Tahoe

4.8 Chevy LS V8

2006-2009 Chevy Trailblazer

GM LS2

2002-2009 GMC Envoy

GM LM4

2002-2006 GMC Envoy XL

GM LM4

2004-2005 GMC Envoy XUV

GM LM4

2001-2005 GMC Savana 1500

4.8 Chevy LS V8
GM LM7
GM LQ4

2006 GMC Savana 1500

4.8 Chevy LS V8
GM L33
GM LM7
GM LQ4

2007-2014 GMC Savana 1500

4.8 Chevy LS V8
GM L33
GM LQ4

2001-2005 GMC Savana 2500

4.8 Chevy LS V8
GM LM7
GM LQ4

2006-2013 GMC Savana 2500

4.8 Chevy LS V8
GM L33
GM LQ4

2002-2005 GMC Savana 3500

4.8 Chevy LS V8
GM LM7
GM LQ4

2006-2013 GMC Savana 3500

4.8 Chevy LS V8
GM L33
GM LQ4

2007 GMC Sierra 1500 Classic

GM L33
GM L59
GM LM7

2001-2003 GMC Sierra 1500 HD

GM LQ4

2005-2006 GMC Sierra 1500 HD

GM LQ4

2007 GMC Sierra 1500 HD Classic

GM LQ4

1999-2001 GMC Sierra 2500

GM LM7
GM LQ4

2002-2004 GMC Sierra 2500

GM LQ4

2001-2011 GMC Sierra 2500 HD

GM LQ4

2007 GMC Sierra 2500 HD Classic

GM LQ4

2001-2006 GMC Sierra 3500

GM LQ4

2007 GMC Sierra 3500 Classic

GM LQ4

2001 GMC Sierra C3

GM LQ4

2000-2011 GMC Yukon

4.8 Chevy LS V8
GM LM7

2000 GMC Yukon XL 1500

GM LM7

2001-2011 GMC Yukon XL 1500

GM L59
GM LM7
GM LQ4

2000-2011 GMC Yukon XL 2500

GM LQ4

2003-2007 Hummer H2

GM LQ4

2005-2006 Pontiac GTO

GM LS2
