COMP Cams 1834-16 Ultra Pro Magnum XD Rocker Arms, Full roller, 7/16

Name: COMP Cams 1834-16 Ultra Pro Magnum XD Rocker Arms, Full roller, 7/16
Brand: COMP Cams
SKU: 282183416
Price: 556.95 USD
Availability: InStock

Write a Review

Ask a Question

$556.95

set

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before October 13th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

289, 302, 351W, Full Roller Rocker Arm Style, Chromoly

See more details

Key Specs

MFG. Part #	1834-16
Rocker Arm Style	Full Roller
Rocker Arm Ratio	1.7
Stud Size	0.437"
Material Type	Chromoly

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 1834-16 Details

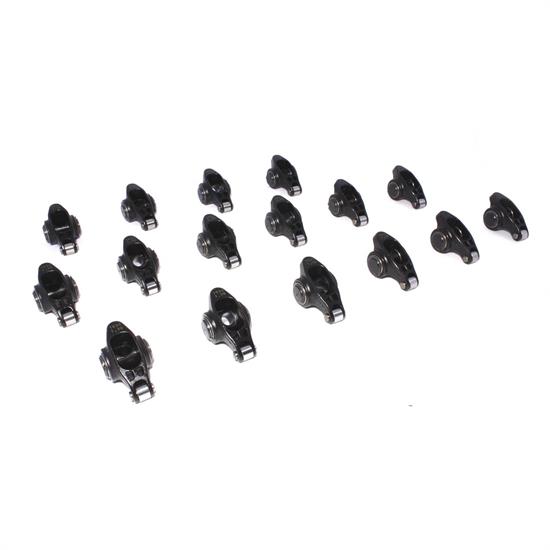

COMP Cams Ultra Pro Magnum XD Roller Rocker Arms, 1.7 Ratio, 7/16" Stud Diameter for Small Block Ford.

The next design evolution of the Hi-Tech Stainless Steel Roller Rocker Arms are built to outlast and outperform in accuracy and strength. The Ultra Pro Magnum XD Rocker Arms are engineered from durable 8650 steel and include a machined billet pushrod seat insert for a wide range of super accurate ratios. A unique and wide ratio range to fit almost any popular application. These XD rockers are fully rebuildable and boast precision-sorted needle bearings and hardened roller tips. And they work with most diameter springs and retainers. The new XD design utilizes advanced FEA and CAD design and development to improve strength, stiffness and MOI optimization for drag and circle track applications.

Machined billet pushrod seat insert for wide range of rocker ratios used in popular Chevy and Ford applications
8650 Steel construction outlasts and outperforms other rockers in accuracy and strength
For applications with up to 1000 lbs. open spring pressure
Precision-sorted needle bearings and hardened roller tips better distribute the load and reduce wear
Engineered for use in circle track and drag race applications

Application

1977-92 Lincoln 302
1964-93 Mercury 289-351
1963-2001 Ford 289-351

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 1834-16 Specifications

KEY SPECS
MFG. Part #	1834-16
Brand	COMP Cams
Rocker Arm Style	Full Roller
Rocker Arm Ratio	1.7
Stud Size	0.437"
Material Type	Chromoly

GENERAL
Rocker Arm Nut Style	Polylock
Finish	Black Oxide
Sold in Quantity	Set
Rocker Arm Body Style	Standard
Rocker Arm Mounting Style	Stud
Self-Aligning	No
Shims Included	No
GTIN Code	036584232858
Color	Black
