#282160212

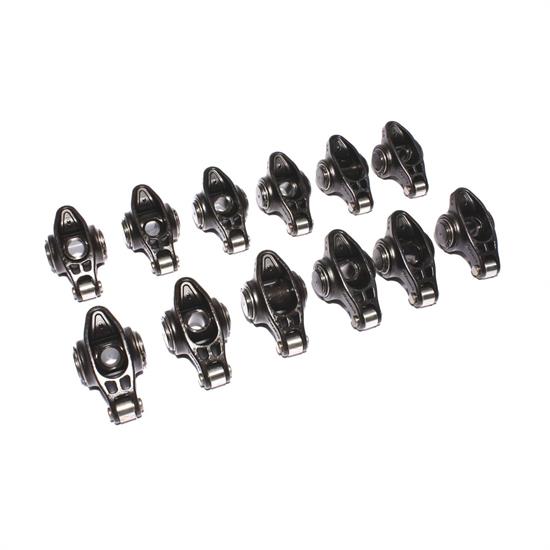

COMP Cams 1602-12 Ultra Pro Magnum Rocker Arms, Full Roller, 3/8, Set
$359.95
/set
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Key Specs
| MFG. Part # | 1602-12 |
| Rocker Arm Style | Full Roller |
| Rocker Arm Ratio | 1.6:1 |
| Stud Size | .375" |
| Material Type | Chromoly |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 1602-12 Details
COMP Cams 1602-12 Details
The Ultra Pro Magnum Roller Rocker Arms for Chevy V8 265-400 applications take stud mount rocker performance, stability and value to a whole new level. These rocker arms feature a 3/8" stud diameter and 1.52 ratio. The 8650 chromemoly material and arched, web-like design deliver increased strength and rigidity while still reducing the moment of inertia and optimizing the dynamic balance. A unique black oxide exterior finish helps prevent corrosion and increases durability. Featuring oversized trunions, precision-sorted needle bearings and hardened roller tips for the ultimate in performance and dependability. Optimized retainer and valve spring clearances allow for use of most diameter springs, retainers and +.050" locks without clearance or fitment issues.
- Investment cast 8650 chromemoly body and arched, weblike design deliver increased strength and rigidity while reducing moment of inertia
- Withstand valve spring pressures up to 850 lbs.
- Unique black oxide exterior finish helps prevent corrosion, thus increasing durability
- Increased retainer and valve spring clearances allow use of large diameter springs, retainers and +.050" locks without clearance or fitment issues
- Feature oversized trunnions, precision-sorted needle bearings and hardened roller tips
Application
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
COMP Cams 1602-12 Specifications
COMP Cams 1602-12 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1602-12 |
| Brand | COMP Cams |
| Rocker Arm Style | Full Roller |
| Rocker Arm Ratio | 1.6:1 |
| Stud Size | .375" |
| Material Type | Chromoly |
| GENERAL | |
| Stud Diameter | 0.38" |
| Rocker Arm Nut Style | Polylock |
| Finish | Black Oxide |
| Sold in Quantity | Set |
| Rocker Arm Body Style | Standard |
| Rocker Arm Mounting Style | Stud |
| Self-Aligning | No |
| Shims Included | No |
| GTIN Code | 036584195818 |
| Color | Black |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
2000-2005 Chevy Impala
GM LA1 3.4
1991-1997 Chevy Lumina
GM LQ1 3.4
1995-1997 Chevy Monte Carlo
GM LQ1 3.4
2000-2005 Chevy Monte Carlo
GM LA1 3.4
