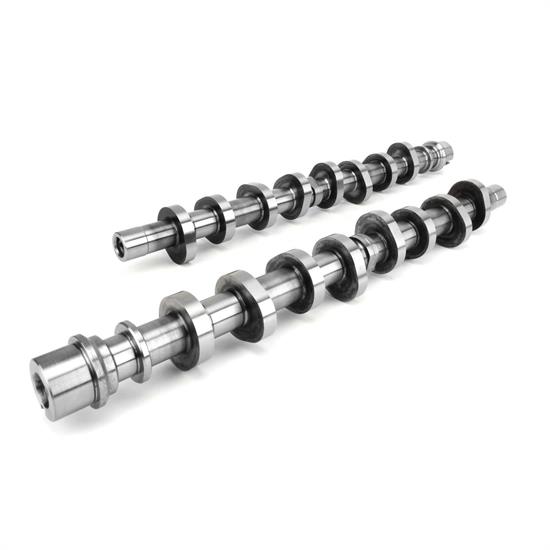

COMP Cams 102200 Xtreme Energy Hyd. Roller Camshaft, Ford Modular V8

#282102200

COMP Cams 102200 Xtreme Energy Hyd. Roller Camshaft, Ford Modular V8

Name: COMP Cams 102200 Xtreme Energy Hyd. Roller Camshaft, Ford Modular V8
Brand: COMP Cams
SKU: 282102200
Price: 880.95 USD
Availability: InStock

Write a Review

Ask a Question

$880.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Roller Tappet Camshaft Type

See more details

Key Specs

Camshaft Type	Hydraulic Roller Tappet
RPM Range	1600-5600
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
Lobe Separation	114 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

COMP Cams 102200 Details

COMP Cams Xtreme Energy 268H-14 Camshaft Set for 4.6L and 5.4L SOHC Modular 2 Valve Ford.

Xtreme Energy. SOHC-Mild street performance, 3.23-3.55 gears. Good torque and power. Will work with stock computer. Noticeable idle. SOHC - Xtreme Energy: Mild Street performance, 3.23-3.55 gears. Good torque and power, noticeable idle. Requires custom tuning.

Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
More vacuum allows an increase in duration for improved performance & assists power brakes
Excellent performance in street carbureted applications
Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.

Application

1992-14 Ford 281-330

Guides & Documents

Warranty (COMP Cams)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

COMP Cams 102200 Specifications

KEY SPECS
MFG. Part #	102200
Brand	COMP Cams
Camshaft Type	Hydraulic Roller Tappet
RPM Range	1600-5600
Intake Duration (.050" Lift)	230
Exhaust Duration (.050" Lift)	236
Lobe Separation	114 °

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.500"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.500"
Intake Duration	268
Exhaust Duration	274
Sold in Quantity	Pair
Grind Number	XE268H
GTIN Code	036584072027
External Ignition Box Required	Yes
Valve Springs Required	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1992-2011 Ford Crown Victoria

Ford 4.6 2V

2003-2004 Ford E-150

Ford 4.6 2V
Ford 5.4 2V

2005-2010 Ford E-150

Ford 4.6 2V

2013-2014 Ford E-150

Ford 4.6 2V
Ford 5.4 2V

2003-2004 Ford E-150 Club Wagon

Ford 4.6 2V
Ford 5.4 2V

2005 Ford E-150 Club Wagon

Ford 4.6 2V

1997-2002 Ford E-150 Econoline

Ford 4.6 2V
Ford 5.4 2V

1997-2002 Ford E-150 Econoline Club Wagon

Ford 4.6 2V
Ford 5.4 2V

2003-2004 Ford E-250

Ford 4.6 2V
Ford 5.4 2V

2005-2010 Ford E-250

Ford 4.6 2V

2013-2014 Ford E-250

Ford 4.6 2V
Ford 5.4 2V

1997 Ford E-250 Econoline

Ford 4.6 2V
Ford 5.4 2V

1998-2002 Ford E-250 Econoline

Ford 5.4 2V

2004 Ford E-250 Super Duty

Ford 5.4 2V

2003 Ford E-350

Ford 5.4 2V

2003-2004 Ford E-350 Club Wagon

Ford 5.4 2V

1997-1998 Ford E-350 Econoline

Ford 5.4 2V

2001-2002 Ford E-350 Econoline

Ford 5.4 2V

1997-2002 Ford E-350 Econoline Club Wagon

Ford 5.4 2V

2004 Ford E-350 Super Duty

Ford 5.4 2V

2013-2014 Ford E-350 Super Duty

Ford 5.4 2V

1997-1999 Ford Econoline Super Duty

Ford 5.4 2V

2000-2004 Ford Excursion

Ford 5.4 2V

1997-2004 Ford Expedition

Ford 4.6 2V
Ford 5.4 2V

2002-2010 Ford Explorer

Ford 4.6 2V

2007-2010 Ford Explorer Sport Trac

Ford 4.6 2V

1997-2004 Ford F-150

Ford 4.6 2V
Ford 5.4 2V

2005-2010 Ford F-150

Ford 4.6 2V

2004 Ford F-150 Heritage

Ford 4.6 2V
Ford 5.4 2V

1997-1999 Ford F-250

Ford 4.6 2V
Ford 5.4 2V

1999-2004 Ford F-250 Super Duty

Ford 5.4 2V

1999-2004 Ford F-350 Super Duty

Ford 5.4 2V

1996-1999 Ford Mustang

Ford 4.6 2V

2000 Ford Mustang

Ford 4.6 2V
Ford 5.4 2V

2001-2010 Ford Mustang

Ford 4.6 2V

1994-1997 Ford Thunderbird

Ford 4.6 2V

2003-2005 Lincoln Aviator

Ford 4.6 2V

2002 Lincoln Blackwood

Ford 5.4 2V

1995-2002 Lincoln Continental

Ford 4.6 2V

1993-1998 Lincoln Mark VIII

Ford 4.6 2V

1998-2004 Lincoln Navigator

Ford 5.4 2V

1991-2011 Lincoln Town Car

Ford 4.6 2V

1992-2011 Mercury Grand Marquis

Ford 4.6 2V

2003-2004 Mercury Marauder

Ford 4.6 2V

2002-2010 Mercury Mountaineer

Ford 4.6 2V
