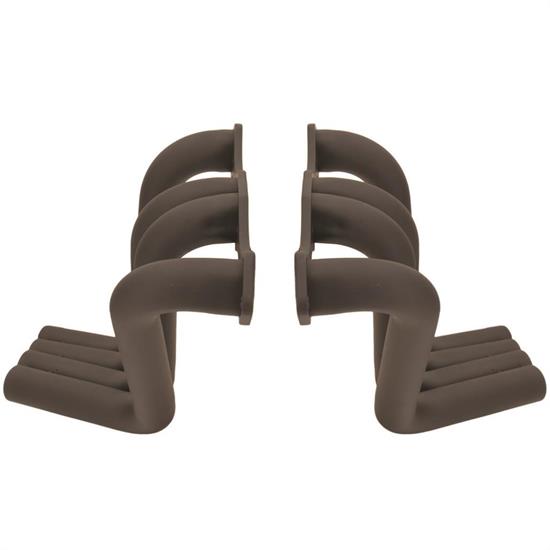

Boom Tube Small Block Chevy Zoomie Headers for Sprint, Raw Finish

#9301700

Boom Tube Small Block Chevy Zoomie Headers for Sprint, Raw Finish

Name: Boom Tube Small Block Chevy Zoomie Headers for Sprint, Raw Finish
Brand: Speedway Motors
SKU: 9301700
Price: 171.99 USD
Availability: InStock
Rating: 4.8 (32 reviews)

32 Reviews

21 Questions

These Zoomie style headers fit small block Chevy engines with standard port heads
5/16" thick flanges with 1-3/4" primary tubes are well suited for medium to high horsepower engines
Primary tubes stick out 4.80" on the passenger side at the first bend

Finish:

Black

AHC Coated

$171.99

/pair

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Zoomie Header Tube Type, Steel, Natural

These Zoomie style headers fit small block Chevy engines with standard port heads
5/16" thick flanges with 1-3/4" primary tubes are well suited for medium to high horsepower engines
Primary tubes stick out 4.80" on the passenger side at the first bend
Primary tubes stick out 4.25" on the driver's side at the first bend
Lightly coated with anti-corrosion paint which is suggested to be stripped before painting with high temp paint

See more details

Key Specs

MFG. Part #	9301700
Header Tube Type	Zoomie
Flange Style	Standard
Primary Tube Diameter	1-3/4"
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9301700 Details

Zoomie style headers with extra-thick flanges and 1-3/4" primaries. Ready to bolt on and go. Will not fit wide cars. Fits Standard port S/B Chevy heads only.

NOTE:Furthest primary tubes stick out on the passenger side at the first bend is 4.80". Furthest the primary tubes stick out on the driver's side at the first bend is 4.25".

Charts

Header Dimension Explanation Chart (GIF)

Guides & Documents

Choosing the Right Headers

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 9301700 Specifications

KEY SPECS
MFG. Part #	9301700
Brand	Speedway Motors
Header Tube Type	Zoomie
Flange Style	Standard
Primary Tube Diameter	1-3/4"
Material Type	Steel
Color	Natural
Weld-Up	No
Finish	Raw
Hardware Included	Yes
Gasket(s) Included	Yes

GENERAL
Sold in Quantity	Pair
Flange Thickness	0.31"
Drivers Side Dimension A	9.6"
Drivers Side Dimension B	13.3"
Drivers Side Dimension C	21.75"
Passenger Side Dimension A	10.5"
Passenger Side Dimension B	13.85"
Passenger Side Dimension C	21.88"

Ratings & Reviews

4.8

32 Reviews

Overall Assessment

Customers have highly praised the product for its top-notch quality, excellent workmanship, including sturdy flanges, and well-done welds. Valued for its fit in multiple custom applications, from cars to tractors, the product features a neat black finish and includes gaskets and header bolts. Users find it an impressive bargain, offering a practical alternative to more expensive competitors without compromising on quality. Many have repurchased it and highly recommend it for its durability, versatility, and outstanding performance. A few have even termed it their first choice for hot rods. Notably, it has added a perfect touch to various automotive projects, cementing its reputation for consistent customer satisfaction.

Write A Review

4.8

32 reviews

Most Liked Positive Review

5.0

great quality

I ended up using the headers to go out my fenders worked great the welds holding the tubes together sucked to get apart but if someone were to use them as they were designed they would hold up amazingly. The shipping paint was gorgeous its a shame you have to remove it

Most Liked Negative Review

2.0

Check your application

Something is wrong, either the picture or the dimensions. The dimensions say the headers should have an "A" measurement of 9.60" on the drivers side and 10.50". The headers I received did not , they where about 4+" on each side. Being the talented guy I am I extended the tubes to fit my application. The part as received is priced right and the quality is good.

Filter by Ratings

Sort Reviews

I would buy these again.

5.0

9 months ago

Possum chaser

Janesville wi.

Verified

They fit exacty as the measurement page said they would

Would Recommend

Worked great on my T Bucket

5.0

11 months ago

Bob

Poconos

Verified

I bought these for my T Bucket. They look and sound good.

Would Recommend

Great product and price

5.0

5 years ago

Jake

Yukon

Verified

Great looking product. Shipping was fast

Would Recommend

Excellent quality, no complaints at all

5.0

5 years ago

Gary

Lancaster Pa

Verified

Bought to modify for fit in my car, they are so nice I decided to keep them for a different project and bought the same thing as a kit for modification.

Would Recommend

Great quality on this header. Exactly what I expected.

5.0

6 years ago

Sharky

Joliet, Il

Verified

These headers are on now on my pro street street/strip car. 69 GTO with a blown sbc. Sets it off perfectly.

Would Recommend

Definitely would buy again and recommend to others

5.0

6 years ago

GASSERS UNLIMITED

Antioch IL

Verified

These work great for the type of vehicles I build

Would Recommend

Boom Tube Small Block Chevy Zoomie Headers

5.0

7 years ago

Rosti

Merenschwand, Switzerland

Verified

Everything's great, fits exactly, delivered with gasket and bolts !! Thank you!!!

Would Recommend

Great value

4.0

7 years ago

Baddog Engineering

Holdrege, Nebraska

Verified

I wasn't sure these would fit my custom application, but with the inexpensive cost it was worth the chance even if I had to modify them. Much cheaper than tubing donuts and separate flanges. The welds are nice with nicely bent tubing and quality flanges. I'm impressed with these cheap zoomies! Even painted in flat black, not raw. Came with exhaust gaskets and header bolts too!

Would Recommend

Just what I seek

5.0

7 years ago

Clay

Seymour Indiana

Verified

I used for putting v8 in tractor

Would Recommend

My new Go-To source for our Hot Rods

5.0

8 years ago

El Bandido

Las Vegas, Nevada

Verified

Quality of materials used in the manufacture of these marvelous headers is unparalleled.

Would Recommend

Load More Reviews

Showing 10 of 32 reviews

Questions & Answers

21 Questions • 12 Answers

Sort Questions

I have a 1927 Model T coupe, same frame and setup like a T bucket, will these fit? Also do you have baffles to fit these?

by Razor Eddie

• 7 years ago

1 answer

View Answer

Will this set fit over the frame of a s10 frame with a v 8 no fenders no hood

by Ugly

• 8 years ago

2 answers

View Answers

So. For a "street car" with a stock 330 horse 350 these would be quite loud, correct? It is for a fiberglass body. Replica of a 1929 Mercedes SSK roadster

by Tom

• 8 years ago

1 answer

View Answer

Will these headers be compatible with straight plug Promaxx aluminum heads? Emphasis on Straight Plug!

by Gravityfreak

• 9 years ago

1 answer

View Answer

Will these headers fit a SBC in your Tribute T?

by Davd

• 9 years ago

1 answer

View Answer

Would these fit inside a 80's C10 engine compartment, or would they foul the steering?

by Jer

• 10 years ago

1 answer

View Answer

Will they work with a s/b v8

by fatboy

• 10 years ago

1 answer

View Answer

I just bought a set of these for my vintage altered drag car and they where just a tad to narrow to clear my frame. Do you have something similar the go out a little further before the first bed or dont angle down as steep?

by Nick

• 10 years ago

1 answer

View Answer

Can these be turned upside down and also will they fit a 80 chevy monza v8

by Jason

• 11 years ago

2 answers

View Answers

Will these fit on my 75 k10 slight fabrication is no big deal if needed

by Jasper

• 11 years ago

1 answer

View Answer

Load More Questions

10 of 21 questions shown

Fitment

1959 Chevy 3A

2-Piece Rear Main Chevy 283

1959 Chevy 3B

2-Piece Rear Main Chevy 283

1959 Chevy 3C

2-Piece Rear Main Chevy 283

1959 Chevy 3D

2-Piece Rear Main Chevy 283

1959 Chevy 3E

2-Piece Rear Main Chevy 283

1959 Chevy 3F

2-Piece Rear Main Chevy 283

1959 Chevy 3G

2-Piece Rear Main Chevy 283

1957 Chevy Bel Air

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1967 Chevy Bel Air

2-Piece Rear Main Chevy 283

1968 Chevy Bel Air

Gen 1 L14 Small Block Chevy

1970-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400

1958-1967 Chevy Biscayne

2-Piece Rear Main Chevy 283

1968 Chevy Biscayne

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1969-1973 Chevy Blazer

Gen 1 L14 Small Block Chevy

1958-1961 Chevy Brookwood

2-Piece Rear Main Chevy 283

1969 Chevy Brookwood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1960-1967 Chevy C10

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400

1960-1967 Chevy C10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C10 Suburban

Gen 1 L14 Small Block Chevy

1960-1967 Chevy C20

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20

2-Piece Rear Main Chevy 400

1960-1967 Chevy C20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy C20 Suburban

Gen 1 L14 Small Block Chevy

1976-1980 Chevy C20 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy C30

2-Piece Rear Main Chevy 283

1968-1973 Chevy C30

Gen 1 L14 Small Block Chevy

1976-1979 Chevy C30

2-Piece Rear Main Chevy 400

1967-1968 Chevy Camaro

Gen 1 DZ Small Block Chevy

1969 Chevy Camaro

Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy

1970-1973 Chevy Camaro

Gen 1 L14 Small Block Chevy

1980-1981 Chevy Camaro

2-Piece Rear Main Chevy 267

1966-1967 Chevy Caprice

2-Piece Rear Main Chevy 283

1968-1969 Chevy Caprice

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Caprice

2-Piece Rear Main Chevy 400

1980-1982 Chevy Caprice

2-Piece Rear Main Chevy 267

1964-1967 Chevy Chevelle

2-Piece Rear Main Chevy 283

1968-1969 Chevy Chevelle

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1963-1967 Chevy Chevy II

2-Piece Rear Main Chevy 283

1968 Chevy Chevy II

Gen 1 L14 Small Block Chevy

1957-1961 Chevy Corvette

2-Piece Rear Main Chevy 283

1957 Chevy Del Ray

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Del Ray

2-Piece Rear Main Chevy 283

1959-1960 Chevy El Camino

2-Piece Rear Main Chevy 283

1964-1967 Chevy El Camino

2-Piece Rear Main Chevy 283

1968-1969 Chevy El Camino

Gen 1 L14 Small Block Chevy

1970-1973 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy El Camino

2-Piece Rear Main Chevy 400

1979-1982 Chevy El Camino

2-Piece Rear Main Chevy 267

1969 Chevy Estate

Gen 1 L14 Small Block Chevy

1970 Chevy Estate

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1976 Chevy G10

2-Piece Rear Main Chevy 400

1968-1973 Chevy G10 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G20

2-Piece Rear Main Chevy 400

1967 Chevy G20 Van

2-Piece Rear Main Chevy 283

1968-1973 Chevy G20 Van

Gen 1 L14 Small Block Chevy

1975-1980 Chevy G30

2-Piece Rear Main Chevy 400

1958-1967 Chevy Impala

2-Piece Rear Main Chevy 283

1968-1969 Chevy Impala

Gen 1 L14 Small Block Chevy

1970-1973 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Impala

2-Piece Rear Main Chevy 400

1980-1982 Chevy Impala

2-Piece Rear Main Chevy 267

1960-1967 Chevy K10

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K10

2-Piece Rear Main Chevy 400

1960-1967 Chevy K10 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K10 Suburban

Gen 1 L14 Small Block Chevy

1975-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400

1960-1967 Chevy K20

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20

2-Piece Rear Main Chevy 400

1967 Chevy K20 Panel

2-Piece Rear Main Chevy 283

1960-1967 Chevy K20 Suburban

2-Piece Rear Main Chevy 283

1968-1973 Chevy K20 Suburban

Gen 1 L14 Small Block Chevy

1975-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400

1968-1973 Chevy K30

Gen 1 L14 Small Block Chevy

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400

1975-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400

1959-1961 Chevy Kingswood

2-Piece Rear Main Chevy 283

1969 Chevy Kingswood

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1973 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Laguna

2-Piece Rear Main Chevy 400

1964-1967 Chevy Malibu

2-Piece Rear Main Chevy 283

1973 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1974-1976 Chevy Malibu

2-Piece Rear Main Chevy 400

1979-1982 Chevy Malibu

2-Piece Rear Main Chevy 267

1970-1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1979-1982 Chevy Monte Carlo

2-Piece Rear Main Chevy 267

1975-1976 Chevy Monza

2-Piece Rear Main Chevy 262

1957 Chevy Nomad

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958-1961 Chevy Nomad

2-Piece Rear Main Chevy 283

1969-1973 Chevy Nova

Gen 1 L14 Small Block Chevy

1975 Chevy Nova

2-Piece Rear Main Chevy 262

1957 Chevy One-Fifty Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1976 Chevy P30

2-Piece Rear Main Chevy 400

1961-1962 Chevy P30 Series

2-Piece Rear Main Chevy 283

1968-1969 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1973 Chevy P30 Van

Gen 1 L14 Small Block Chevy

1959-1961 Chevy Parkwood

2-Piece Rear Main Chevy 283

1957 Chevy Sedan Delivery

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Sedan Delivery

2-Piece Rear Main Chevy 283

1947-1959 Chevy Suburban

2-Piece Rear Main Chevy 265

1960-1967 Chevy Suburban

2-Piece Rear Main Chevy 283

1969 Chevy Townsman

Gen 1 L14 Small Block Chevy

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy

1955 Chevy Truck

2-Piece Rear Main Chevy 265

1957 Chevy Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Truck

2-Piece Rear Main Chevy 283

1960 Chevy Truck

2-Piece Rear Main Chevy 283

1955 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265

1957 Chevy Two-Ten Series

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1958 Chevy Yeoman

2-Piece Rear Main Chevy 283

1966 GMC 1000

2-Piece Rear Main Chevy 283

1960 GMC 1000 Series

2-Piece Rear Main Chevy 283

1962-1965 GMC 1000 Series

2-Piece Rear Main Chevy 283

1960-1965 GMC 1500 Series

2-Piece Rear Main Chevy 283

1966 GMC 2500

2-Piece Rear Main Chevy 283

1960-1965 GMC 2500 Series

2-Piece Rear Main Chevy 283

1960-1966 GMC 3000

2-Piece Rear Main Chevy 283

1960-1966 GMC 3500

2-Piece Rear Main Chevy 283

1967 GMC C25/C2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Pickup

Gen 1 L14 Small Block Chevy

1967 GMC C25/C2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC C25/C2500 Suburban

Gen 1 L14 Small Block Chevy

1967 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC C35/C3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400

1975-1978 GMC K15

2-Piece Rear Main Chevy 400

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400

1975-1978 GMC K25

2-Piece Rear Main Chevy 400

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400

1967 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 283

1968-1972 GMC K25/K2500 Suburban

Gen 1 L14 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400

1967 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 283

1968-1972 GMC K35/K3500 Pickup

Gen 1 L14 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400

1966 GMC P1000

2-Piece Rear Main Chevy 283

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400

1955-1959 GMC Suburban

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1960-1966 GMC Suburban

2-Piece Rear Main Chevy 283

1967 GMC Suburban

Gen 1 L14 Small Block Chevy

1955 GMC Truck

2-Piece Rear Main Chevy 265

1956-1960 GMC Truck

2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283

1965-1966 Studebaker Commander

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Cruiser

2-Piece Rear Main Chevy 283

1965-1966 Studebaker Daytona

2-Piece Rear Main Chevy 283

1966 Studebaker Wagonaire

2-Piece Rear Main Chevy 283
