#9301700

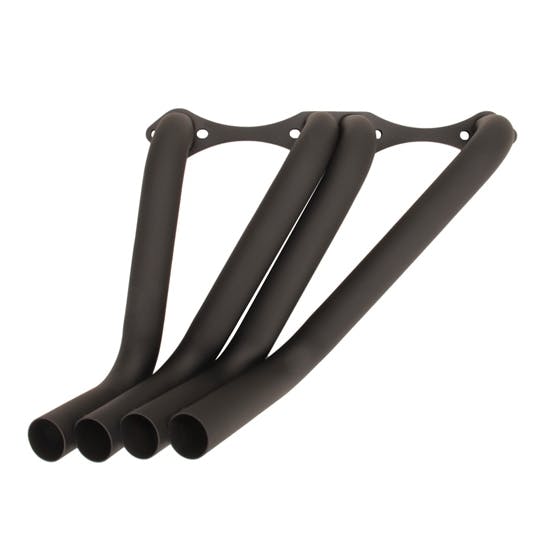

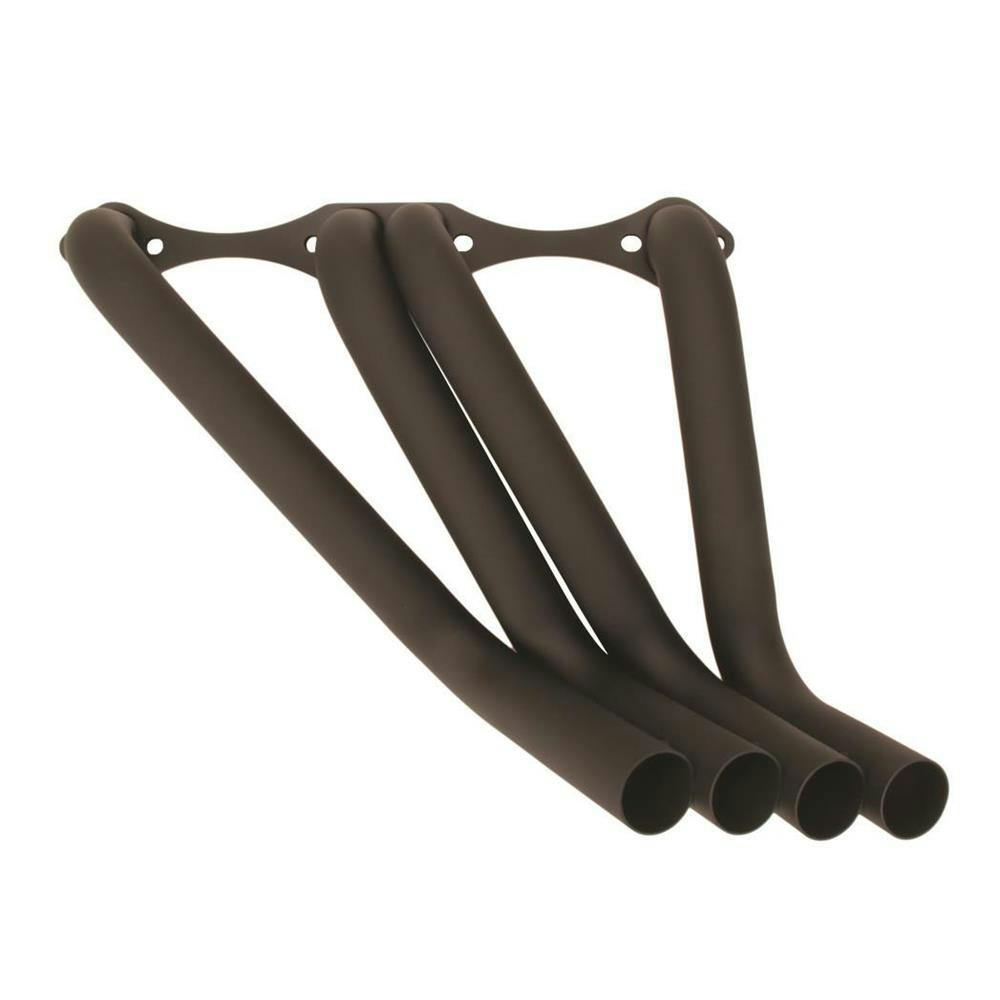

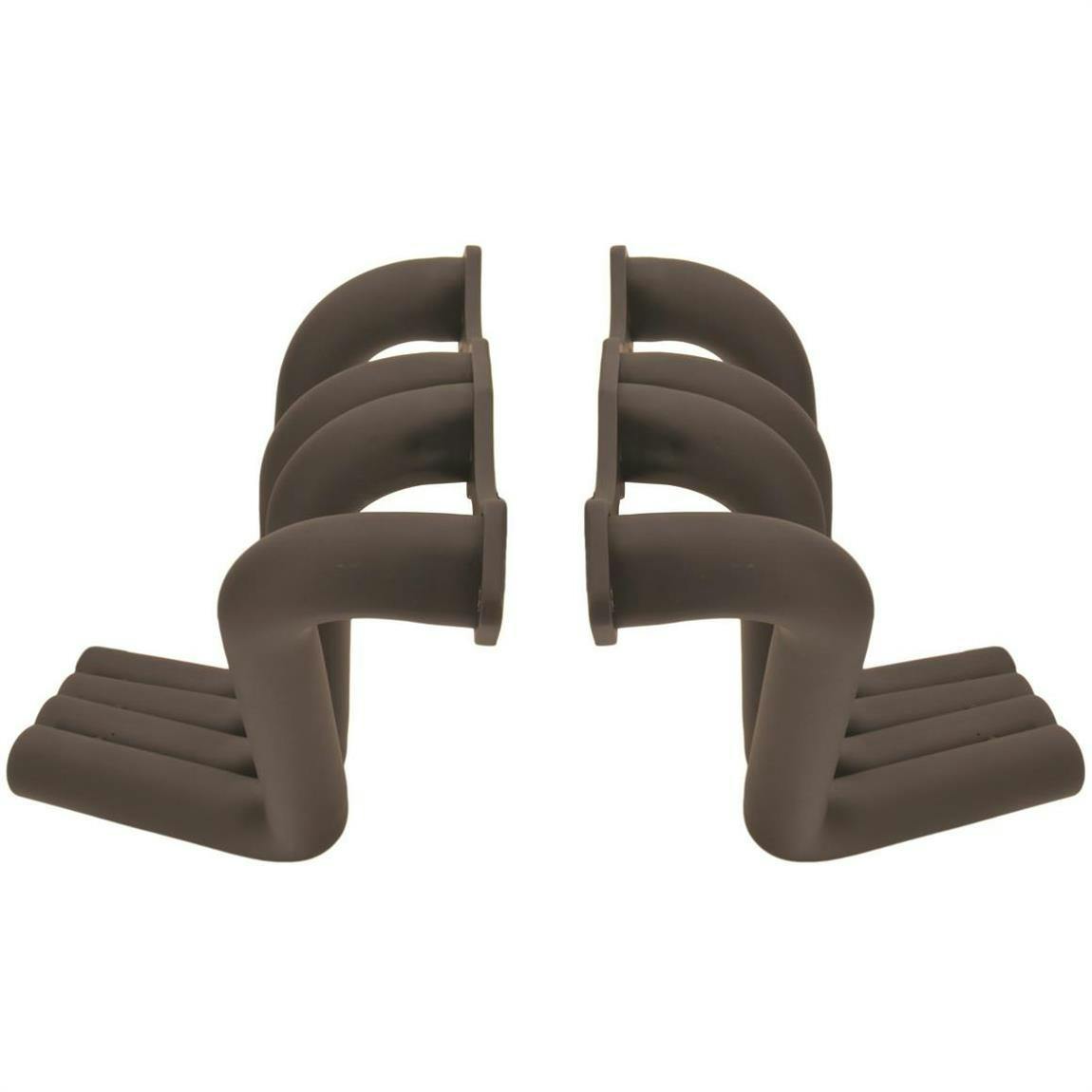

Boom Tube Small Block Chevy Zoomie Headers for Sprint, Raw Finish
- These Zoomie style headers fit small block Chevy engines with standard port heads
- 5/16" thick flanges with 1-3/4" primary tubes are well suited for medium to high horsepower engines
- Primary tubes stick out 4.80" on the passenger side at the first bend
$166.99
pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Universal Fit, Zoomie Header Tube Type, Steel, Natural
- These Zoomie style headers fit small block Chevy engines with standard port heads
- 5/16" thick flanges with 1-3/4" primary tubes are well suited for medium to high horsepower engines
- Primary tubes stick out 4.80" on the passenger side at the first bend
- Primary tubes stick out 4.25" on the driver's side at the first bend
- Lightly coated with anti-corrosion paint which is suggested to be stripped before painting with high temp paint
Key Specs
| Header Tube Type | Zoomie |
| Flange Style | Standard |
| Primary Tube Diameter | 1-3/4" |
| Material Type | Steel |
| Color | Natural |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9301700 Details
Speedway Motors 9301700 Details
Zoomie style headers with extra-thick flanges and 1-3/4" primaries. Ready to bolt on and go. Will not fit wide cars. Fits Standard port S/B Chevy heads only.
NOTE:Furthest primary tubes stick out on the passenger side at the first bend is 4.80". Furthest the primary tubes stick out on the driver's side at the first bend is 4.25".
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Speedway Motors 9301700 Specifications
Speedway Motors 9301700 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9301700 |
| Brand | Speedway Motors |
| Header Tube Type | Zoomie |
| Flange Style | Standard |
| Primary Tube Diameter | 1-3/4" |
| Material Type | Steel |
| Color | Natural |
| Weld-Up | No |
| Collector Diameter | Not Applicable |
| Finish | Raw |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| GENERAL | |
| Flange Thickness | .31" |

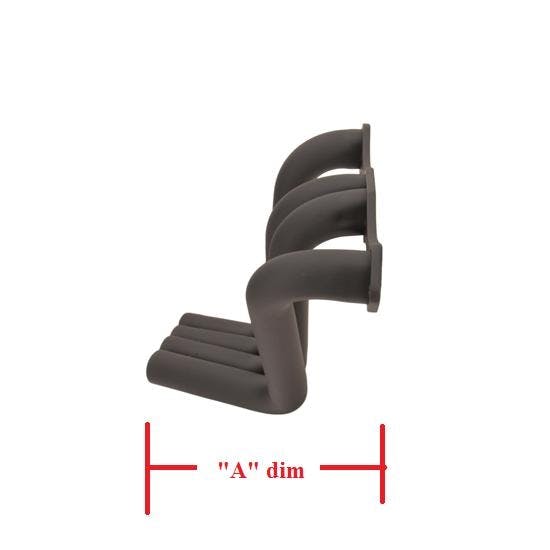

| Drivers Side Dimension A | 9.6" |
| Drivers Side Dimension B | 13.3" |
| Drivers Side Dimension C | 21.75" |
| Passenger Side Dimension A | 10.5" |
| Passenger Side Dimension B | 13.85" |
| Passenger Side Dimension C | 21.88" |
| Sold in Quantity | Pair |
Ratings & Reviews
4.8
30 Reviews
Customers have highly praised the product for its top-notch quality, excellent workmanship, including sturdy flanges, and well-done welds. Valued for its fit in multiple custom applications, from cars to tractors, the product features a neat black finish and includes gaskets and header bolts. Users find it an impressive bargain, offering a practical alternative to more expensive competitors without compromising on quality. Many have repurchased it and highly recommend it for its durability, versatility, and outstanding performance. A few have even termed it their first choice for hot rods. Notably, it has added a perfect touch to various automotive projects, cementing its reputation for consistent customer satisfaction.
Ratings & Reviews
4.8
30 Reviews
Customers have highly praised the product for its top-notch quality, excellent workmanship, including sturdy flanges, and well-done welds. Valued for its fit in multiple custom applications, from cars to tractors, the product features a neat black finish and includes gaskets and header bolts. Users find it an impressive bargain, offering a practical alternative to more expensive competitors without compromising on quality. Many have repurchased it and highly recommend it for its durability, versatility, and outstanding performance. A few have even termed it their first choice for hot rods. Notably, it has added a perfect touch to various automotive projects, cementing its reputation for consistent customer satisfaction.
4.8
30 reviews
5
26
4
2
3
1
2
1
1
0
Most Liked Positive Review
5.0
great quality
I ended up using the headers to go out my fenders worked great the welds holding the tubes together sucked to get apart but if someone were to use them as they were designed they would hold up amazingly. The shipping paint was gorgeous its a shame you have to remove it
Most Liked Negative Review
2.0
Check your application
Something is wrong, either the picture or the dimensions. The dimensions say the headers should have an "A" measurement of 9.60" on the drivers side and 10.50". The headers I received did not , they where about 4+" on each side. Being the talented guy I am I extended the tubes to fit my application. The part as received is priced right and the quality is good.
Filter by Ratings
Great product and price
5.0
4 years ago
Jake
Yukon
Verified
Great looking product. Shipping was fast
Would Recommend
Excellent quality, no complaints at all
5.0
4 years ago
Gary
Lancaster Pa
Verified
Bought to modify for fit in my car, they are so nice I decided to keep them for a different project and bought the same thing as a kit for modification.
Would Recommend
Great quality on this header. Exactly what I expected.
5.0
5 years ago
Sharky
Joliet, Il
Verified

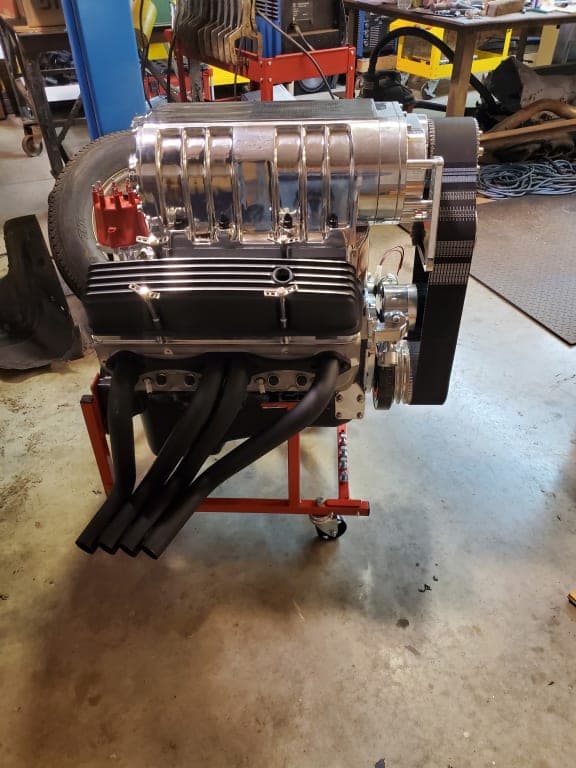

These headers are on now on my pro street street/strip car. 69 GTO with a blown sbc. Sets it off perfectly.
Would Recommend
Definitely would buy again and recommend to others
5.0
5 years ago
GASSERS UNLIMITED
Antioch IL
Verified
These work great for the type of vehicles I build
Would Recommend
Boom Tube Small Block Chevy Zoomie Headers
5.0
6 years ago
Rosti
Merenschwand, Switzerland
Verified
Everything's great, fits exactly, delivered with gasket and bolts !! Thank you!!!
Would Recommend
Showing 5 of 30 reviews
