BluePrint PS5401CTC Chevy 540 Pro Series, Dressed Engine, Alum Heads
$14,799.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Ships FREE!
Ships FREE!
|
#227PS5401CTC
$14,799.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
| Crate Engine Type | Long Block |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 540 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
Made to Order
This custom item will ship when completed
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyChevy 540 Pro Series - Dressed Engine - Aluminum Heads - Roller Cam
Overview
Block
Rotating Assembly
Cylinder Heads
Cam Specs
Also Includes
Guides & Documents
Warranty Information (PDF)
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | PS5401CTC |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Compression Ratio | 10.0:1 |
| Engine Displacement | 540 cu. in. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Forged Aluminum |
| Crankshaft Material | Forged 4340 Steel |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Connecting Rod Material | Forged 4340 Steel |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |

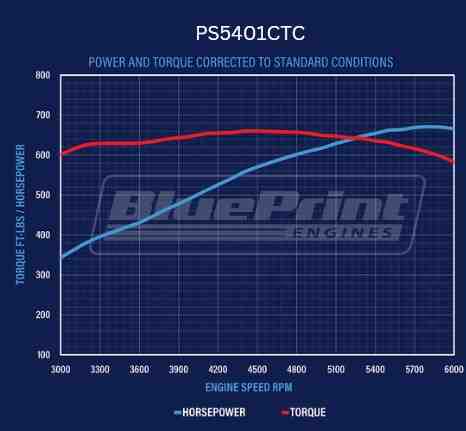

| Torque | 660 ft./lbs. |
| Horsepower | 670 horsepower |
| Combustion Chamber Volume | 119cc |
| Camshaft Duration (.050 in) | 248° intake / 254° exhaust |
| Camshaft Lift (in) | .647 intake / .647 exhaust |
| Bore x Stroke (in) | 4.50" x 4.25" |
| Warranty | 30 month / 50,000 miles |
| Assembled | Yes |
| Camshaft Included | Yes |
| Cylinder Heads | BluePrint Aluminum 119cc |
| Block | 4 bolt main |
| Notes | New BluePrint block manufactured and machined in the USA. Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR |
2 Questions • 2 Answers
Is this 540 stroker a tall deck?
by Dan
• 7 years ago
1 answer
View Answer
Part # 227PS5401CTC will this engine hook up to turbo 400 from a 1972 Chev that has been built for street and strip performance without a adapter needed,or will I need to go to a later model Chev 4 or 5 speed auto transmission to mate up this to engine.And if a adapter kit is needed does you company sell such a kit and what would it's part number and price be. I plan to add a {gear vendors} overdrive to make the car street able because it has a Chev 4:10 12 bolt rear end as of now do you sell that product line
by ray
• 7 years ago
1 answer
View Answer
