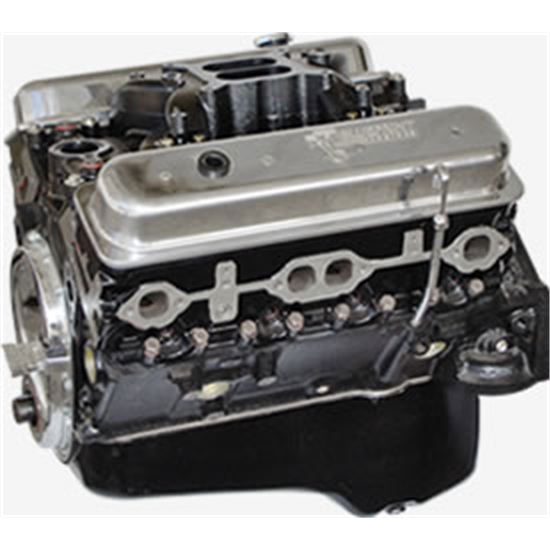

BluePrint MBP3550CT GM 355 Base Marine Engine, Cast Iron Vortec Heads

Ships FREE!

#227MBP3550CT

BluePrint MBP3550CT GM 355 Base Marine Engine, Cast Iron Vortec Heads

Name: BluePrint MBP3550CT GM 355 Base Marine Engine, Cast Iron Vortec Heads
Brand: BluePrint Engines
SKU: 227MBP3550CT
Price: 6799 USD
Availability: InStock

Write a Review

1 Question

Level Of Dress:

#1 Long Block

#2 Base Dressed - Carbureted

$6,799.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, Long Block Crate Engine Type

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	9.5:1
Engine Displacement	355 cu. in.
Camshaft Type	Hydraulic Flat Tappet
Cylinder Head Material	Aluminum

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines MBP3550CT Details

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

GM 355 Base Marine Engine - Cast Iron Vortec Heads - Flat Tappet Cam

Overview

HP & Torque: 365 HP / 390 FT LBS
Compression Ratio: 9.5:1
Cast Iron Heads
Hypereutectic Pistons
Flat Tappet Cam
Cast Steel Crank
Part #: MBP3550CT

Block

Seasoned 4 bolt main block
One piece rear main seal
Max bore .040
Align honed main bearing bore
Sonic tested to assure wall thickness

Rotating Assembly

New cast steel crankshaft-externally balanced
Chevy heavy beam rods resized and clearance improved
150,000 PSI rod bolts
Keith Black Hypereutectic pistons
Hastings moly rings
New Hydraulic flat tappet camshaft
Heavy duty double roller timing

Cylinder Heads

GM Vortec cast iron cylinder heads
1.25 dia. valve springs, hardened retainers and keepers
2.02 swirl polished intake valves
1.60 swirl polished exhaust valves
Elgin hardened push rods
Long slot rockers with positive lock adjusting nuts

Cam Specs

Cam Type: Flat tappet
.480 Intake .489 Exhaust
226 Intake / 236 Exhaust duration
@ .050 - 112 degree lobe separation

Ignition Timing

34 degrees at 3500 rpm

Also Includes

New cast iron marine intake
Polished aluminum valve covers
Rubber coated steel oil pan
Brass freeze plugs
All engines are dyno tested on a state of the art DTS dyno and ship with a complete spec sheet

Warranty

12 month unlimited hour on pleasurecraft only. No warranty on commercial use.

Warranty Information

Warranty Information (PDF)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

BluePrint Engines MBP3550CT Specifications

KEY SPECS
MFG. Part #	MBP3550CT
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	9.5:1
Engine Displacement	355 cu. in.
Camshaft Type	Hydraulic Flat Tappet
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Cast Steel
Carburetor Included	No
Intake Manifold Included	No
Distributor Included	No
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	No
Harmonic Balancer Included	No
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	No
Spark Plug Wires Included	No
Computer Included	No
Wiring Harness Included	No

GENERAL
Torque	390 ft./lbs.
Horsepower	365 horsepower
Camshaft Duration (.050 in)	226° intake / 236° exhaust
Camshaft Lift (in)	.480 intake / .489 exhaust
Bore x Stroke (in)	4.000" bored .040 over x 3.480"
Warranty	12 month parts and labor, pleasurecraft only
Assembled	Yes
Camshaft Included	Yes
Cylinder Heads	Cast iron Vortec
Block	4 bolt main
Notes	Zinc Additive Required For Flat Tappet Application, Recommended Oil For Your BluePrint Crate Engine: 10W30, Non-Synthetic. Not For EGR
